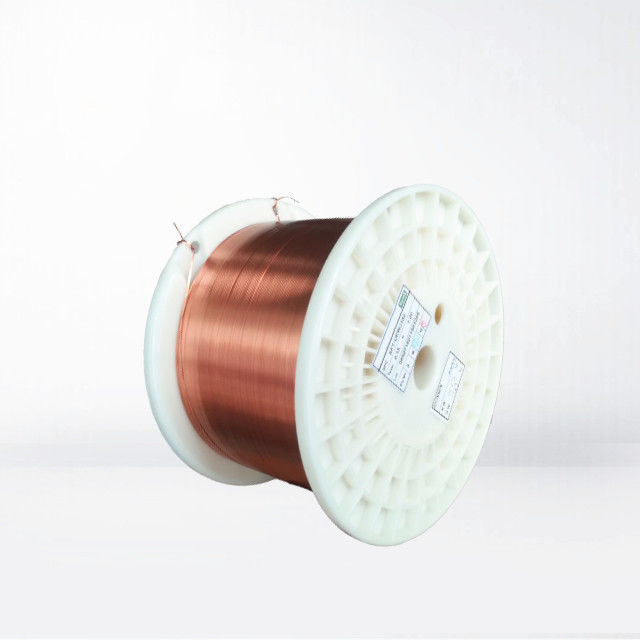

Super Thin Flat Transformer Copper Wire Solderability 0.8 - 5.6mm High Solvent Resistance

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.8 - 5.6mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Detail Information
Thermal Rating: 155-220 Size Range: 0.8-5.6mm
Conductor Type:: Flat Copper Color: Purple/Gold/Red
High Light:

rectangular magnet wire

,

square magnet wire


Product Description

SUPER THIN FLAT TRANSFORMER COPPER WIRE SOLDERABILITY 0.8-5.6MM HIGH SOLVENT RESISTANCE

Enamelled copper wire comes in many different diameters, and with several different kinds of enamel. The diameters vary from less than that of a hair, to about that of a child’s finger. Different standards exist for the wire diameter. A very common one is American Wire Gauge, shortened to AWG, which is used in much of the world. Britain has its own standard, and in many countries the wire is specified simply by its diameter in millimeters.

FEATURES AND BENEFITS

1) High flexibility of the enamel
2) Good resistance to abrasion
3) High mechanical property
4) Higher thermal property
5) Good resistance to refrigerant and freon
6) Suitable for windings that are subjected to constantly high temperature and mechanical stress
7) Good chemical resistance
8) Outstanding mechanical and chemical property

APPLICATION

- Small type motor ( Electric household appliance, Toys & etc. )
- Transformer for measuring instrument
- For communication : High frequency coil for transformer, Coil for power source transformer
- Coil-small transformer, TV, speaker & etc.

Super Thin Flat Transformer Copper Wire Solderability 0.8 - 5.6mm High Solvent Resistance 0

SPECIFICATION

Parameter

130

155

180

200

120

40

Standars

IEC60317-16 GB/T7095.7

60317-16 GB/T7095.3

60317-28 GB/T7095.4

MW 36 60317-29 BS6811 GB/T7095.6

MW 18 60317-18 GB/T7095.2

MW 20 60317-47 GB/T7095.5

Thermal Class

130°C

155°C

180°C

200°C

120°C

240°C

Enamel Base Coat

Polyester

Modified Polyester

Polyester-Imide

Polyester-Imide

Polyester-formal

Polyimide

Enamel Top Coat







Polyester-Imide





Range of insulation thickness

IEC60317-0-2 G1,0.06-0.11mm G2,0.12-0.17mm

Performance

1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property

1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property 5.Higher thermal property

1.High thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance

1.Excellent thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance 4.Good resistance to refrigerant and freon

1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property

1.Excellent thermal resistance suitable for any electric equipments that are constantly exposed to high working temperature 2.Outstanding mechanical and chemical property 3.Good performance against radiation

Application

1.Dry and oil-immersed 2.Electrical equipment

1.Dry and oil-immersed 2.Electrical equipment

1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer

1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer 4.Automobile coil 5.Train coil

1.Dry and oil-immersed transformer 2.Electrical equipment

1.Windings with service temperature up to 220°C 2.Motor and generator for aviation and marine application 3.Nuclear industry 4.Windings requiring high reliability

Heat shock

155°C

175°C

200°C

220°C

155°C

300°
