| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Product Name: | High Temperature Copper Wire | Brand: | Ruiyuan |
|---|---|---|---|
| Thermal Rating: | 155/180/220 | AWG: | 6-56 |
| Insulation: | Polyurethane/Polister | Size: | 0.012-4.5mm |
| High Light: | electric motor copper wire,submersible motor winding wire |
||

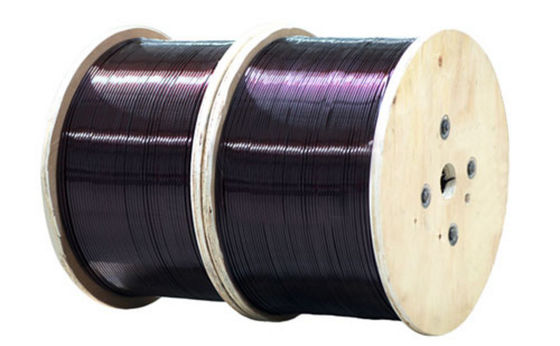

Motor Winding Copper Wre , Rectangular Enameled copper Wire for Winding Motor
Winding wire is a core product in everyday products and modern infrastructure, and we offer a complete range of copper wire for all kinds of applications. Besides the wide standard range we offer customer specific solutions, tailor-made to suit every possible needs. Whether standard or special, all our winding wire is manufactured in a high-precision process using state-of-the-art technology and manned by dedicated professionals.
Features:
1) Excellent bending property
2) High flexibility of the enamel
3) Good resistance to abrasion
4) High mechanical property
5) Higher thermal property
6) Good resistance to refrigerant and freon
7) Suitable for windings that are subjected to constantly high temperature and mechanical stress
8) Good chemical resistance
9) Outstanding mechanical and chemical property
Application:
Specification
| Parameter | Class 130 | Class 155 | Class-180 | Class-200 | Class220 | Class-240 |
| Standars | IEC60317-16 GB/T7095.7 | 60317-16 GB/T7095.3 | 60317-28 GB/T7095.4 | MW 36 60317-29 BS6811 GB/T7095.6 | MW 18 60317-18 GB/T7095.2 | MW 20 60317-47 GB/T7095.5 |
| Thermal Class | 130°C | 155°C | 180°C | 200°C | 120°C | 240°C |
| Enamel Base Coat | Polyester | Modified Polyester | Polyester-Imide | Polyester-Imide | Polyester-formal | Polyimide |
| Enamel Top Coat | Polyester-Imide | |||||
| Range of insulation thickness | IEC60317-0-2 G1,0.06-0.11mm G2,0.12-0.17mm | |||||
| Performance | 1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property | 1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property 5.Higher thermal property | 1.High thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance | 1.Excellent thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance 4.Good resistance to refrigerant and freon | 1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property | 1.Excellent thermal resistance suitable for any electric equipments that are constantly exposed to high working temperature 2.Outstanding mechanical and chemical property 3.Good performance against radiation |
| Application | 1.Dry and oil-immersed 2.Electrical equipment | 1.Dry and oil-immersed 2.Electrical equipment | 1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer | 1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer 4.Automobile coil 5.Train coil | 1.Dry and oil-immersed transformer 2.Electrical equipment | 1.Windings with service temperature up to 220°C 2.Motor and generator for aviation and marine application 3.Nuclear industry 4.Windings requiring high reliability |
| Heat shock | 155°C | 175°C | 200°C | 220°C | 155°C | 300°C |
