| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.04 - 3.6mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Material: | Polyamide Over Polyurethane | Temperature: | 130/155 |
|---|---|---|---|
| AWG SIZE: | 7-38 | Insulatoin: | UEW+NY |
| Color:: | Red/Pink/Blue/Yellow | Size: | 0.04-3.6mm |
| High Light: | soft copper wire,enameled copper magnet wire |
||

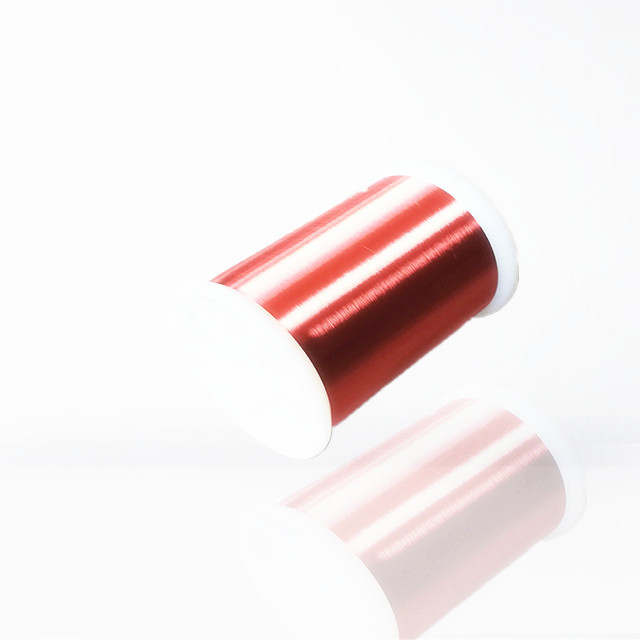

0.04 - 3.6MM SOLDERABLE COPPER WIRE MAGNET WINDIGN WIRE POLYAMIDE OVER POLYURETHANE
UEW+NY is a dual film solderable insulation composed of Modified Polyurethane resins with a Polyamide (nylon) overcoat. The nylon overcoat provides a significant reduction in the wire's coefficient of friction aiding both windability and the production of compact coils.
FEATURES
Excellent dereeling and windability on high speed and / or automatic winding machines.
Produces compact coils and windings.
Superior "Q" characteristics at high frequencies.
Exceptional film flexibility and adhension.
Excellent resistant to a variety of solvents including most varnishes and hardener catalysts.
CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
Relays, Ignition coils, Motors, Coils.
|
|
Metric(mm) |
AWG |
NEMA |
IEC |
JIS |
CNS |
|
|
2 |
Single |
1.6~0.04 |
14~46 |
MW 28-C |
317-19 |
- |
11384 |
|
1 |
Heavy |
3.6~0.10 |
7~38 |
MW 28-C |
317-9 |
- |
11384 |
|
0 |
Triple |
3.6~0.10 |
7~38 |
MW 28-C |
317-19 |
- |
11384 |
