| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | FIW |
| Minimum Order Quantity: | 20 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | FIW6 0.711mm FIW Fully Insulated Wire For Transformer Winding | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | Enamel | Diameter: | 0.711mm |
| Conductor Material: | Copper | Key Word: | FIW6 0.711mm FIW Fully Insulated Wire For Transformer Winding |
| Highlight: | Type 6 fiw wire,fiw wire 0.711 mm,transformer winding enamel insulated copper wire |
||

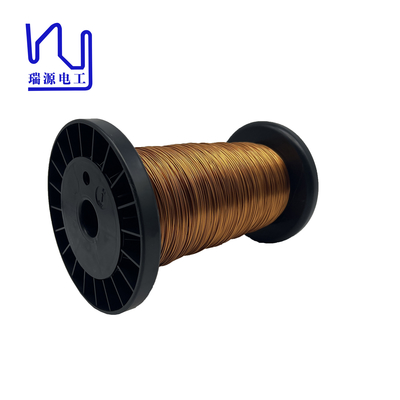

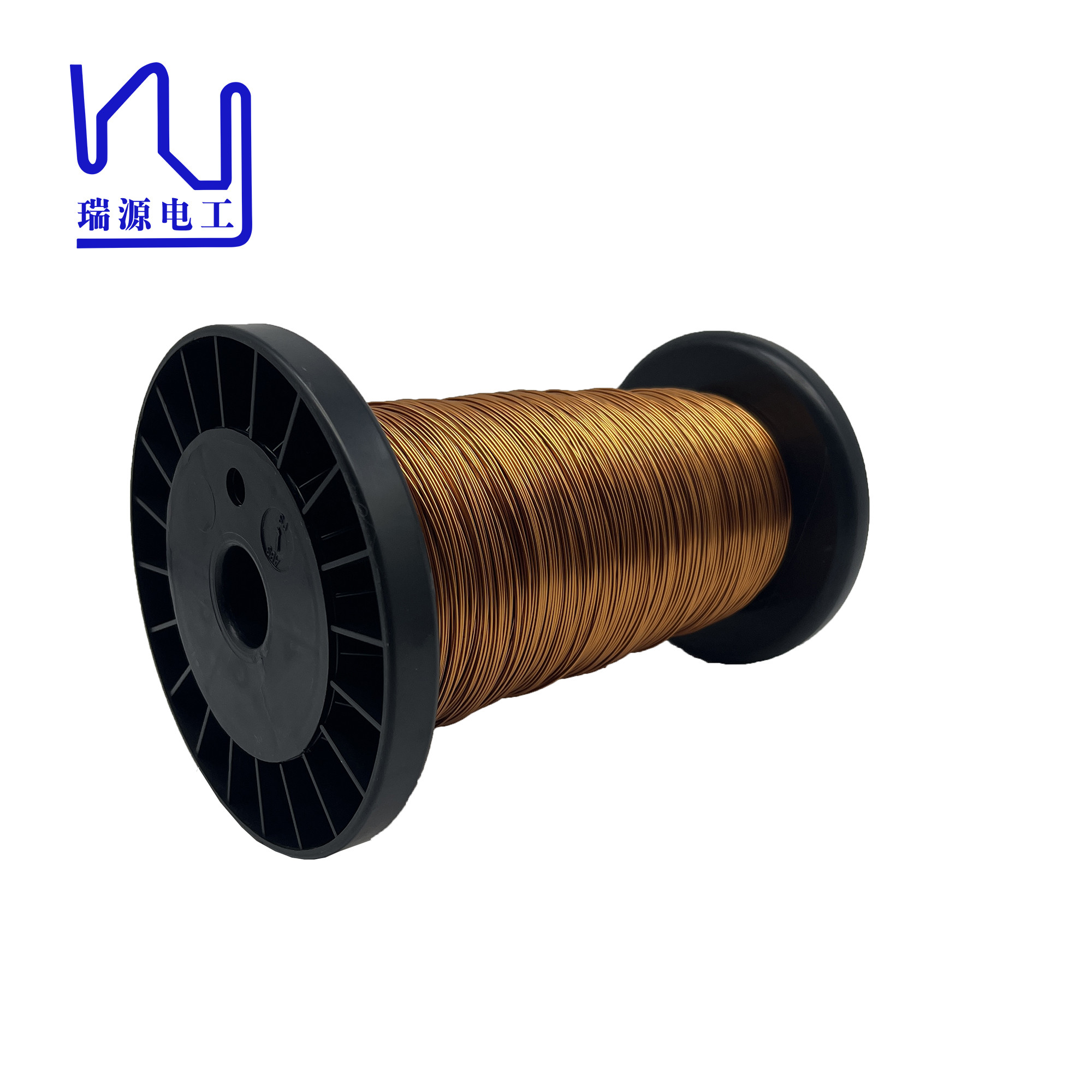

FIW6 0.711mm FIW Fully Insulated Wire For Transformer Winding
FIW Full Insulated Zero Defect enameled copper wire (FIW Full Insulated Zero Defect enameled copper wire) is a customized copper wire product specially designed for high voltage fields. Its unique high-voltage resistance characteristics and multiple application scenarios make it the first choice in the industry.
| Nom.Diameter(mm) |
Min. Breakdown voltage (V) 20℃ | |||||
| FIW3 | FIW4 | FIW5 | FIW6 | FIW7 | FIW8 | |
| 0.100 | 2106 | 2673 | 3969 | 5265 | 6561 | 7857 |
| 0.120 | 2280 | 2964 | 4332 | 5700 | 7068 | 8436 |
| 0.140 | 2432 | 3192 | 4712 | 6232 | 7752 | 9272 |
| 0.160 | 2660 | 3496 | 5168 | 6840 | 8512 | 10184 |
| 0.180 | 2888 | 3800 | 5624 | 7448 | 9272 | 11096 |
| 0.200 | 3040 | 4028 | 5928 | 7828 | 9728 | 11628 |
| 0.250 | 3648 | 4788 | 7068 | 9348 | 11628 | 13908 |
| 0.300 | 4028 | 5320 | 7676 | 10032 | 12388 | 14744 |
| 0.400 | 4200 | 5530 | 7700 | 9870 | 12040 | 14210 |
| 0.450 | 4480 | 5880 | 8050 | 10220 | 12390 | 14560 |
| 0.475 | 4690 | 6160 | 9030 | 11900 | 14770 | 17640 |
| 0.500 | 4690 | 6160 | 9030 | 11900 | 14770 | |
| 0.560 | 3763 | 4982 | 7155 | 9328 | 11501 | - |
| 0.600 | 3975 | 5247 | 7420 | 9593 | 11766 | - |
| 0.710 | 4240 | 5565 | 7738 | 9911 | 12084 | - |
