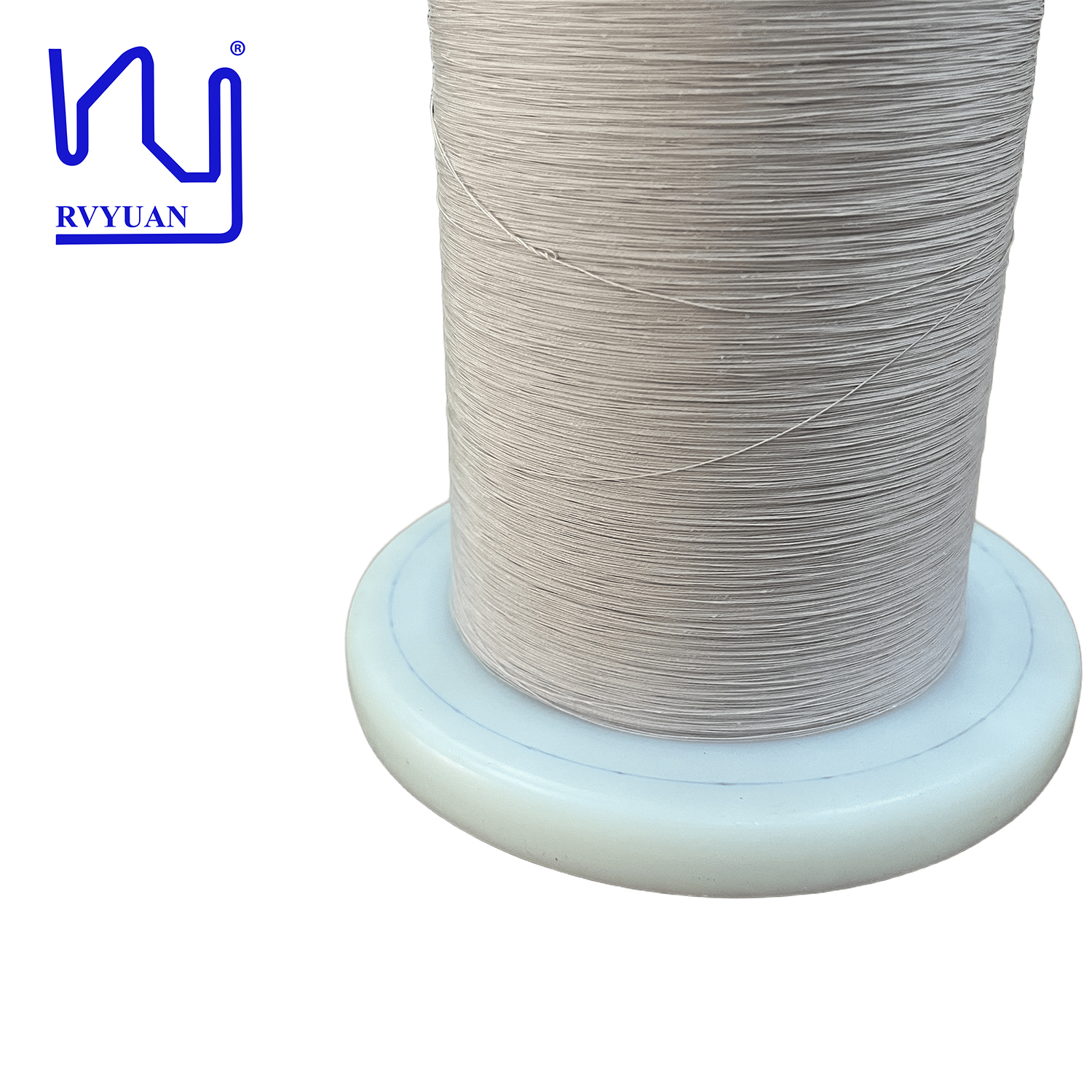

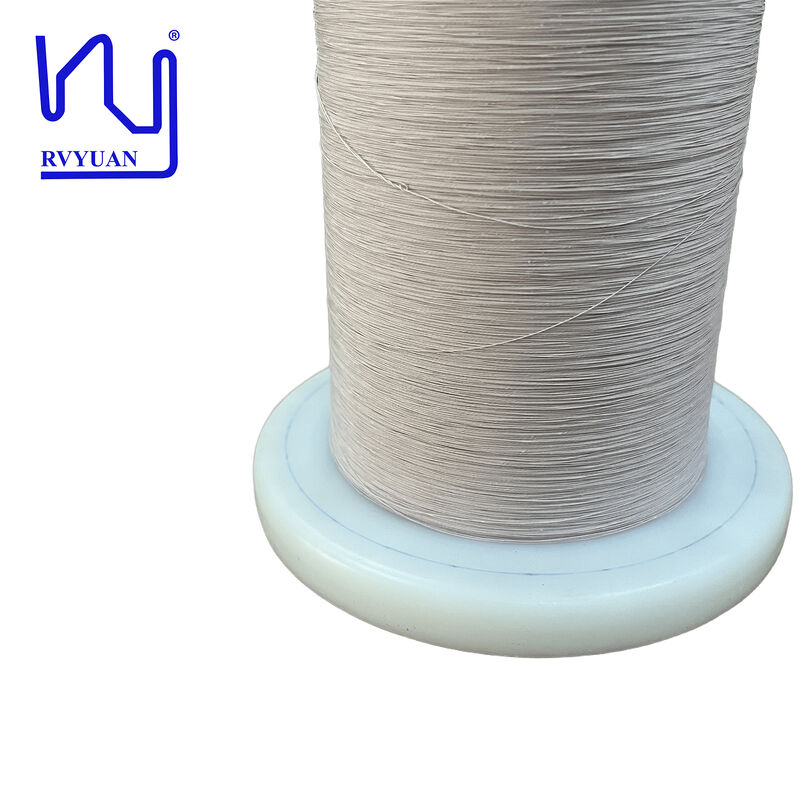

0.1mm X 150 Strands Solid Copper Silk Covered Litz 1100V For Transformer/Wireless Charger

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.1mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	150	Breakdown Voltage:	Min.1100
Cover Material:	Nylon	Key Word:	0.1mm X 150 Strands Solid Copper Silk Covered Litz 1100V For Transformer/Wireless Charger
Highlight:	0.1mm solid copper litz wire , 150 strands silk covered litz wire , 1100V transformer litz wire

Product Description

0.1mm X 150 Strands Solid Copper Silk Covered Litz Wire - 1100V Rated

This premium Litz wire features 150 strands of 0.1mm solid copper conductors with silk/nylon covering, specifically designed for high-frequency applications requiring 1100V breakdown voltage.

Key Advantages

Exceptionally low high-frequency resistance compared to solid wire or standard stranded wire
Direct solderability without chemical stripping requirements
Excellent mechanical durability provided by protective nylon wrap
Superior performance in high-frequency electromagnetic applications

Typical Applications

RF transformers and high-frequency inductors
Induction heating coils and wireless power transfer systems
Switching power supply components
Medical devices including MRI gradient coils
Precision audio equipment and aerospace electronics
Applications demanding high efficiency and reliability

Technical Specifications

Parameter	Technical Requirement	Sample 1	Sample 2
Single Wire Diameter (mm)	0.107-0.125	0.110	0.113
Conductor Diameter (mm)	0.10±0.003	0.098	0.100
Outer Diameter (mm)	Max. 1.81	1.53	1.60
Resistance Ω/m (20℃)	≤0.01587	0.01467	0.01462
Breakdown Voltage (V)	≥1100	3000	2900
Pitch	27±3	√	√
Pinhole Test	49 faults/6m	10	8
Solderability	Temp. 390±5℃ 8s Smooth surface, no pinholes, no residue	√	√

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
