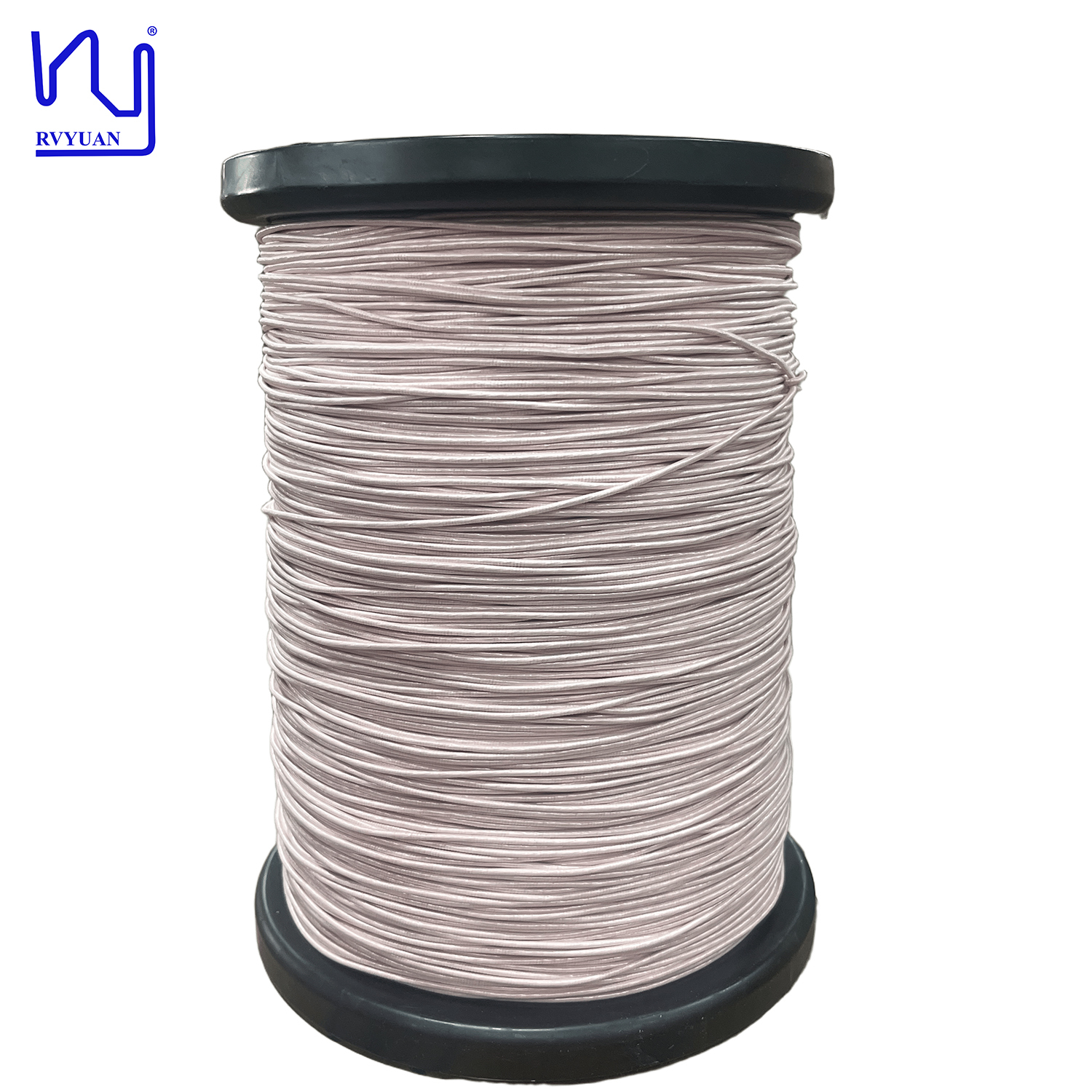

USTC UEW 0.10mm Stranded Silk Covered Litz Wire High-Frequency Magnet Wire for Automotive Wireless Charging Coils

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.1mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	150	Breakdown Voltage:	Min.1100
Cover Material:	Nylon	Key Word:	USTC UEW 0.10mm Stranded Silk Covered Litz Wire High-Frequency Magnet Wire For Automotive Wireless Charging Coils
Highlight:	0.10mm stranded silk litz wire , high-frequency magnet wire automotive , silk covered litz wire wireless charging

Product Description

USTC UEW 0.10mm Stranded Silk Covered Litz Wire High-Frequency Magnet Wire for Automotive Wireless Charging Coils

Product Overview

Litz Wire Multiple Strands 38AWG Copper Litz Wire engineered specifically for high-frequency applications. The entire twisted litz wire is wrapped with a nylon yarn outer covering that provides multiple benefits: protection from abrasion and mechanical damage during winding, additional electrical insulation between adjacent turns, and a smooth, uniform surface for easy handling and coil winding.

Technical Specifications

Parameter	Technical Requirement	Sample 1	Sample 2
Diameter of Single Wire (mm)	0.107-0.125	0.110	0.113
Conductor Diameter (mm)	0.10±0.003	0.098	0.100
OD (mm)	Max. 1.81	1.53	1.60
Resistance Ω/m (20℃)	≤0.01587	0.01467	0.01462
Breakdown Voltage (V)	≥1100	3000	2900
Pitch	27±3	√	√
Pinhole Test	49 faults/6m	10	8
Solderability	Temp. 390±5℃ 8s Smooth surface, no pinholes, no residue	√	√

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
