Name: 0.05mmx4875 Rectanglar copper Silk Covered Litz Wire For Transformer
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: USTC
Price: 24.06 USD
Availability: InStock

Detail Information

Diameter:	0.05mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	4875	Breakdown Voltage:	Min.500
Cover Material:	Nylon	Key Word:	0.05mmx4875 Rectanglar Copper Silk Covered Litz Wire For Transformer
Highlight:	rectangular copper litz wire , silk covered litz wire , transformer litz wire

Product Description

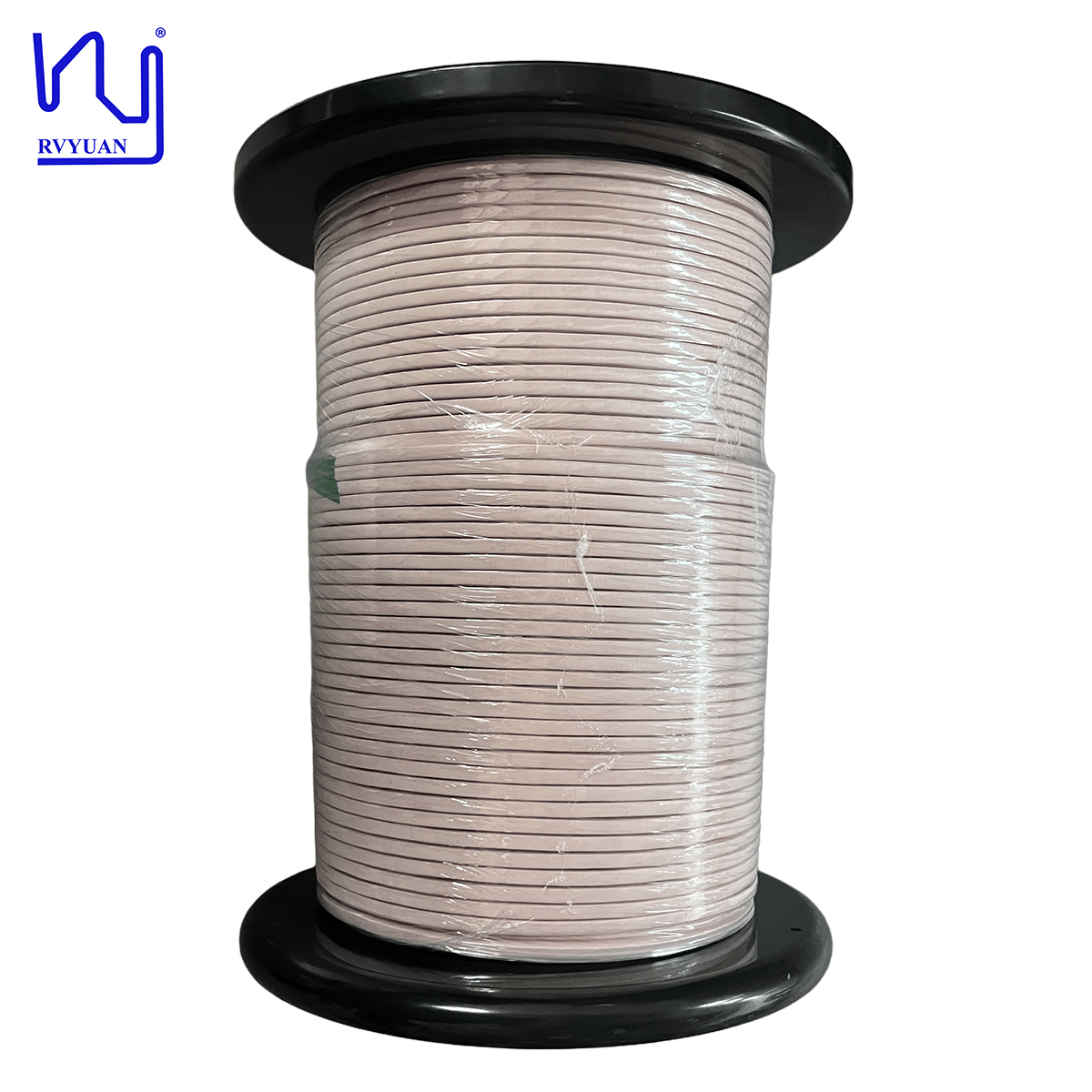

0.05mm x 4875 Rectangular Copper Silk Covered Litz Wire For Transformer

Product Overview

This flat nylon serving litz wire is specifically designed for use in transformer windings. It is ideal for high-frequency transformers used in power electronics, such as those found in electric vehicle chargers, renewable energy systems, and switching power supplies. By reducing AC losses and enhancing thermal performance, this wire contributes to higher efficiency, reliability, and compactness in advanced transformer designs.

Technical Specifications

Type Conductor diameter*Strand number	2USTC-H 0.054875(4.54.4)
Single wire (strand) conductor diameter (mm)	0.050±0.003
Overall diameter (mm)	0.055-0.069
Thermal Class (°C)	180

Strands Construction

Strands number	First time	39
	Second time	39×5
	Third time	39×5×5
	Fourth time	39×5×5×5

Pitch Specifications

Pitch (mm)	First time	16±8
	Second time	25±10
	Third time	35±10
	Fourth time	65±10
Bunching direction	S/S/S/S

Insulation Layer

Material type	Nylon
Material specs (mm×mm or D)	/
Times of Wrapping	1
Overlap (%) or thickness (mm), mini	0.045
Wrapping direction	Z

Characteristics

Width (mm)	4.5±0.2
Thickness (mm)	4.4±0.2
Max resistance (Ω/Km at 20°C)	2.227
Breakdown voltage Mini (V)	500

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.

Tag:

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand
