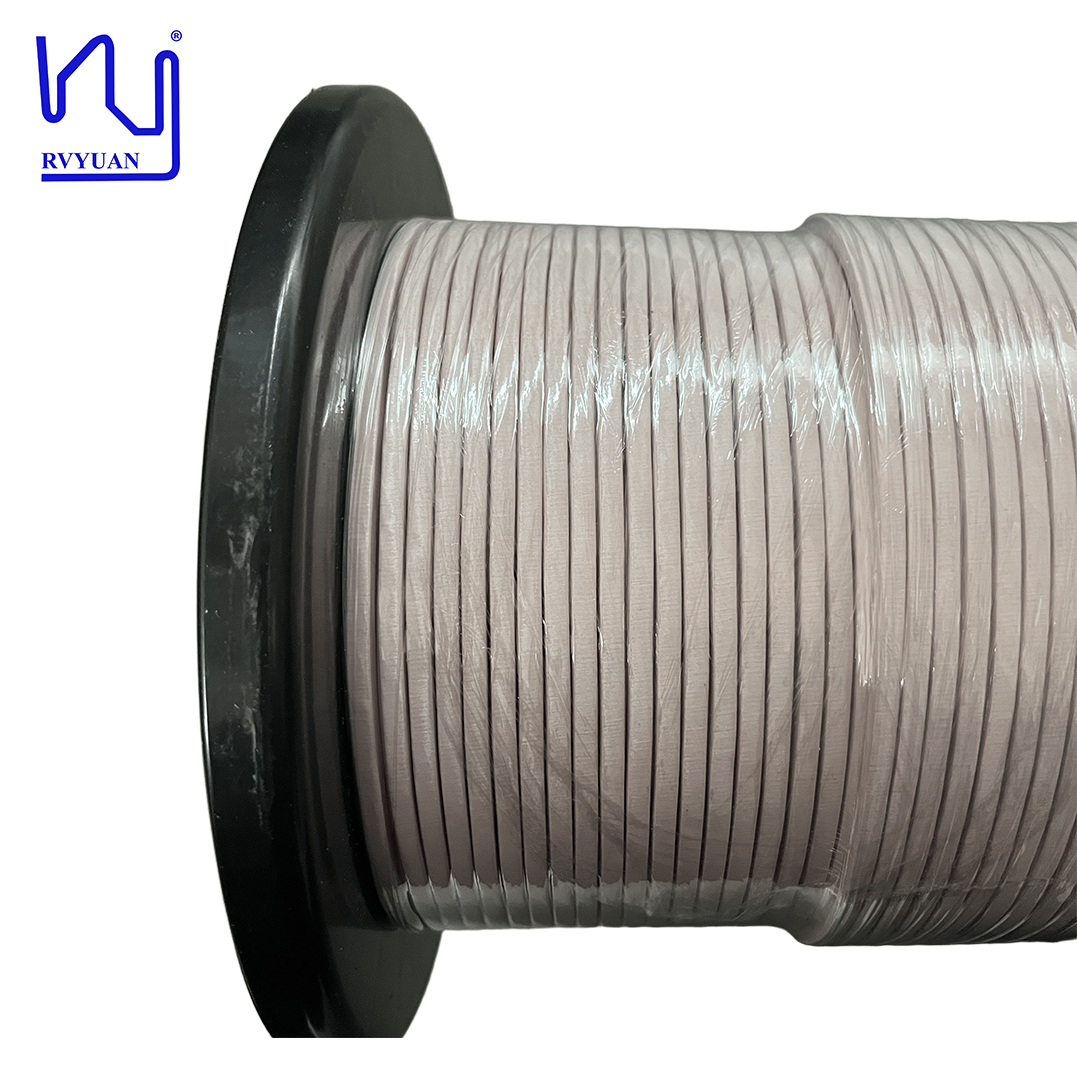

Flat litz wire 4.5mmx4.4mm 0.05mmx4875 nylon serving copper litz wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.05mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	4875	Breakdown Voltage:	Min.500
Cover Material:	Nylon	Key Word:	Flat Litz Wire 4.5mmx4.4mm 0.05mmx4875 Nylon Serving Copper Litz Wire For Transformer
Highlight:	flat litz wire for transformer , 4.5mmx4.4mm nylon serving litz wire , copper litz wire with nylon serving

Product Description

Flat Litz Wire 4.5mm×4.4mm 0.05mm×4875 Nylon Serving Copper Litz Wire for Transformer

This is a custom-designed flat nylon serving litz wire, engineered for high-performance applications where space and efficiency are critical. As a large-scale product, it features a finished outer diameter with a width of 4.5 mm and a thickness of 4.4 mm, offering a substantial cross-sectional area while maintaining a flat profile.

Technical Specifications

Type Conductor diameter*Strand number	2USTC-H 0.054875(4.54.4)
Single wire (strand)	Conductor diameter (mm): 0.050±0.003
Overall diameter (mm)	0.055-0.069
Thermal Class (°C)	180

Strands Construction

Strands Number	First Time	39
	Second Time	39×5
	Third Time	39×5×5
	Fourth Time	39×5×5×5

Pitch Specifications

Pitch (mm)	First Time	16±8
	Second Time	25±10
	Third Time	35±10
	Fourth Time	65±10
Bunching Direction	S/S/S/S

Insulation Layer

Material Type	Nylon
Material Specs (mm×mm or D)	/
Times of Wrapping	1
Overlap (%) or Thickness (mm), Mini	0.045
Wrapping Direction	Z

Characteristics

Width (mm)	4.5±0.2
Thickness (mm)	4.4±0.2
Max Resistance (Ω/Km at 20°C)	2.227
Breakdown Voltage Mini (V)	500

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
