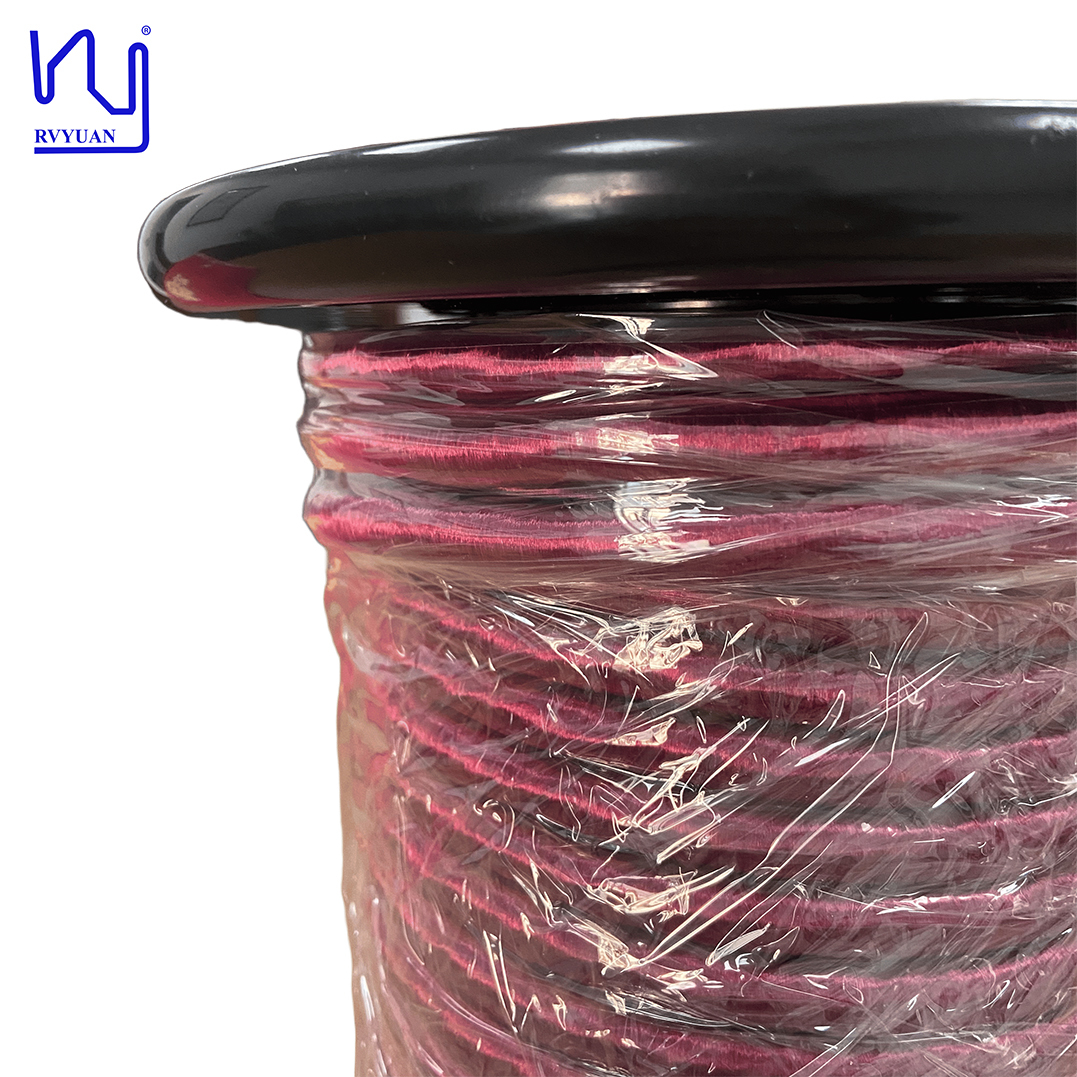

2UDTC-F 0.2mm Silk covered Copper Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.2mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	1300	Breakdown Voltage:	Min.1600
Cover Material:	Nylon	Key Word:	2UDTC-F 0.2mm Silk Covered Copper Litz Wire
Highlight:	0.2mm silk covered copper litz wire , USTC litz wire with silk coating , fine silk insulated copper litz wire

Product Description

2UDTC-F 0.2mm Silk covered Copper Litz Wire

This litz wire structure enhances conductivity and flexibility while preventing the wire from loosening. The standard maximum outer diameter is 11.09 mm, with an actual measurement range of 9.78 mm to 10.25 mm. It boasts a high electrical strength of 2800 volts, allowing you to evaluate whether it meets your product design requirements.

Technical Specifications

Item No.	Diameter of Single Wire (mm)	Conductor Diameter (mm)	Overall Dimension (mm)	Resistance (Ω/m)	Breakdown Voltage (V)	Pitch
Tech Requirement	0.216-0.231	0.2±0.003	Max. 11.09	≤0.000444	≥1600	78±10
Sample 1	0.220-0.223	0.198-0.20	9.78-10.25	0.0000421	2800	√

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
