2UDTC-F 0.2mmx1300 Nylon Serving Litz Wire Copper Stranded Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.2mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	1300	Breakdown Voltage:	Min.1600
Cover Material:	Nylon	Key Word:	2UDTC-F 0.2mmx1300 Nylon Serving Litz Wire Copper Stranded Wire
Highlight:	Nylon serving Litz wire , Copper stranded Litz wire , 0.2mm Litz wire with warranty

Product Description

2UDTC-F 0.2mmx1300 Nylon Serving Litz Wire Copper Stranded Wire

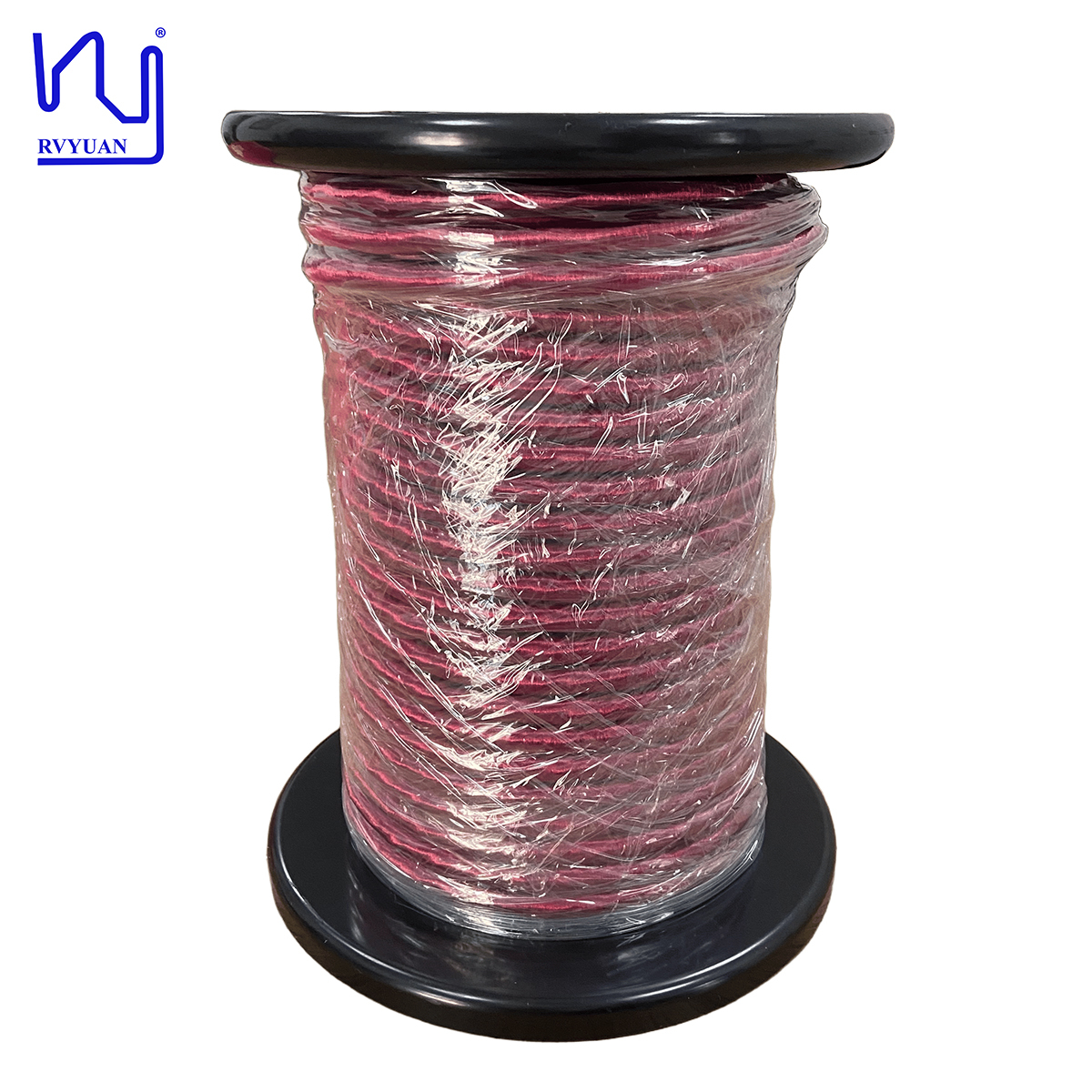

This premium pink litz wire is manufactured by twisting 1300 strands of 0.2 mm enameled copper wire, wrapped with durable dacron yarn. The distinctive pink polyester yarn was custom-produced to meet specific client requirements. For custom colored yarn wrapping needs, please contact us and we will work to accommodate your specifications.

Technical Specifications

Item No.	Diameter of Single Wire (mm)	Conductor Diameter (mm)	Overall Dimension (mm)	Resistance (Ω/m)	Breakdown Voltage (V)	Pitch
Tech Requirement	0.216-0.231	0.2±0.003	Max. 11.09	≤0.000444	≥1600	78±10
Sample 1	0.220-0.223	0.198-0.20	9.78-10.25	0.0000421	2800	√

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
