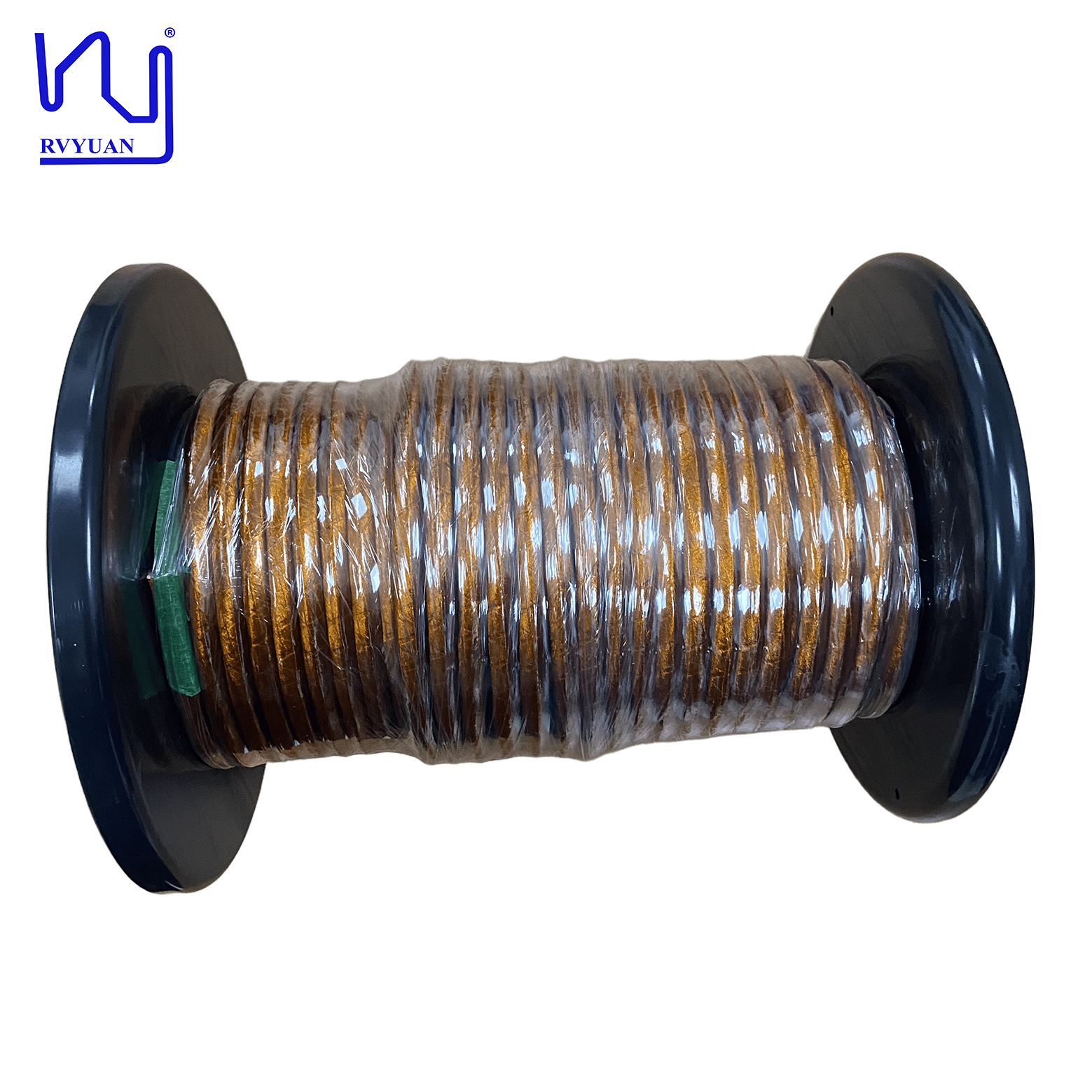

Square litz wire 7.4mm PI taped 0.071x6500 Litz Wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.071mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	6500	Breakdown Voltage:	Min.9500
Cover Material:	Tape	Key Word:	Square Litz Wire 7.4mm PI Taped 0.071x6500 Litz Wire For Transformer
Highlight:	Square litz wire for transformer , 7.4mm PI taped litz wire , 0.071x6500 litz wire

Product Description

Square Litz Wire 7.4mm PI Taped 0.071x6500 Litz Wire For Transformer

Square litz wire 7.4mm PI taped 0.071x6500 Litz Wire For Transformer. The finished litz wire is wrapped with a robust layer of Kapton polyimide tape insulation, providing exceptional thermal stability, chemical resistance, and dielectric strength.

Withstands minimum test voltages of 6,000 volts, making it ideally suited for high-voltage applications
Overall cross-section measures 7.4 mm × 7.4 mm, classifying it as a larger-profile litz wire
Capable of handling substantial power levels while maintaining a compact form factor for space-constrained assemblies

Technical Specifications

Item No.	Single wire diameter mm	Conductor diameter mm	Width mm	Thickness mm	Resistance Ω/m	Breakdown voltage V	Pitch
Tech requirement	0.075-0.084	0.071±0.003	7.4±0.3	7.4±0.	≤0.000814	≥9500	130±200
Sample 1	0.076-0.078	0.068-0.069	9.38-7.54	9.38-7.54	0.000705	11400	√
