Rectangle Flat Copper Wire Enameled Copper Flat Wire for Generator

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Shape:	Rectangular	Width: Thickness:	25:1
Applications:	Motor Winding	Thermal Grade:	220
Key Word:	2mm Enameled Copper Flat Winding Wire Thermal Class 220 Grade For Automotive
Highlight:	enameled rectangular copper wire , flat copper wire for generator , rectangle enameled copper wire

Product Description

Rectangle Flat Copper Wire Enameled Copper Flat Wire for Generator

Product Overview

Rectangle Flat Copper Wire Enameled Copper Flat Wire for Generator is designed for specialized applications requiring high performance and reliability in demanding environments.

Applications

Aerospace and Military Equipment: Equipment with extreme requirements for weight, size, and reliability
Medical Devices: Equipment requiring high-intensity, highly uniform magnetic fields, such as gradient coils in MRI (Magnetic Resonance Imaging) machines and CT scanners
Welding Equipment: Windings for high-current welding transformers
Frequency Inverters and UPS (Uninterruptible Power Supply): Power inductors and transformers within these systems

Technical Specifications & Test Results

Item	Characteristics	Standard	Test Result
1	Appearance	Smooth, Equality	OK
2	Conductor Diameter (mm)	W: 2.00 ±0.060 T: 0.15 ±0.009	W: 2.002 T: 0.153
3	Thickness of Insulation (mm)	W: 0.010-0.020 T: 0.030-0.032	W: 0.010-0.020 T: 0.030-0.032
4	Overall Diameter (mm)	W: 2.100 T: 0.200	W: 2.022 T: 0.185
5	Pinhole (Normal State)	Max ≤ 3 pcs/m	0
6	Elongation (%)	Min ≥ 30%	42
7	Flexibility and Adherence	No Crack	OK
8	Conductor Resistance (Ω/km, 20℃)	Max 64.03	57.96
9	Breakdown Voltage (AC)	Min 0.7 KV	1.5
10	Heat Shock	No Crack	OK

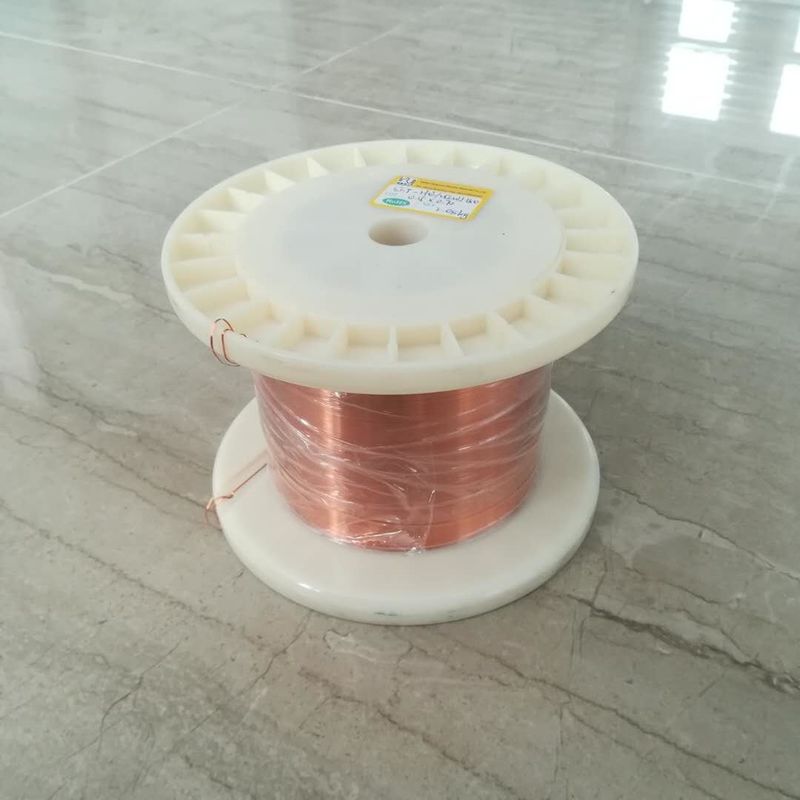

Product Image
