2mm Enameled Copper Flat Winding Wire Thermal Class 220 Grade For Automotive

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Shape:	Rectangular	Width: Thickness:	25:1
Applications:	Motor Winding	Thermal Grade:	220
Key Word:	2mm Enameled Copper Flat Winding Wire Thermal Class 220 Grade For Automotive
Highlight:	2mm enameled copper wire , flat winding wire thermal class 220 , rectangular copper wire automotive

Product Description

2mm Enameled Copper Flat Winding Wire Thermal Class 220 Grade For Automotive

This 2mm enameled copper flat winding wire is designed for automotive applications, featuring thermal class 220 grade insulation for high-temperature performance.

Applications

Reactors and Inductors: High-current reactors and inductors used in power filtering, power factor correction, frequency converters, and other equipment
Flat wire structures reduce the number of winding layers, lower parasitic capacitance, improve high-frequency characteristics, and facilitate heat dissipation

Technical Specifications & Test Results

Item	Characteristics	Standard	Test Result
1	Appearance	Smooth, Equality	OK
2	Conductor Diameter (mm)	W: 2.00 ±0.060 T: 0.15 ±0.009	W: 2.002 T: 0.153
3	Thickness of Insulation (mm)	W: 0.010-0.020 T: 0.030-0.032	W: 0.010-0.020 T: 0.030-0.032
4	Overall Diameter (mm)	W: 2.100 T: 0.200	W: 2.022 T: 0.185
5	Pinhole (Normal State)	Max ≤ 3 pcs/m	0
6	Elongation (%)	Min ≥ 30%	42
7	Flexibility and Adherence	No Crack	OK
8	Conductor Resistance (Ω/km, 20℃)	Max 64.03	57.96
9	Breakdown Voltage (AC)	Min 0.7 KV	1.5
10	Heat Shock	No Crack	OK

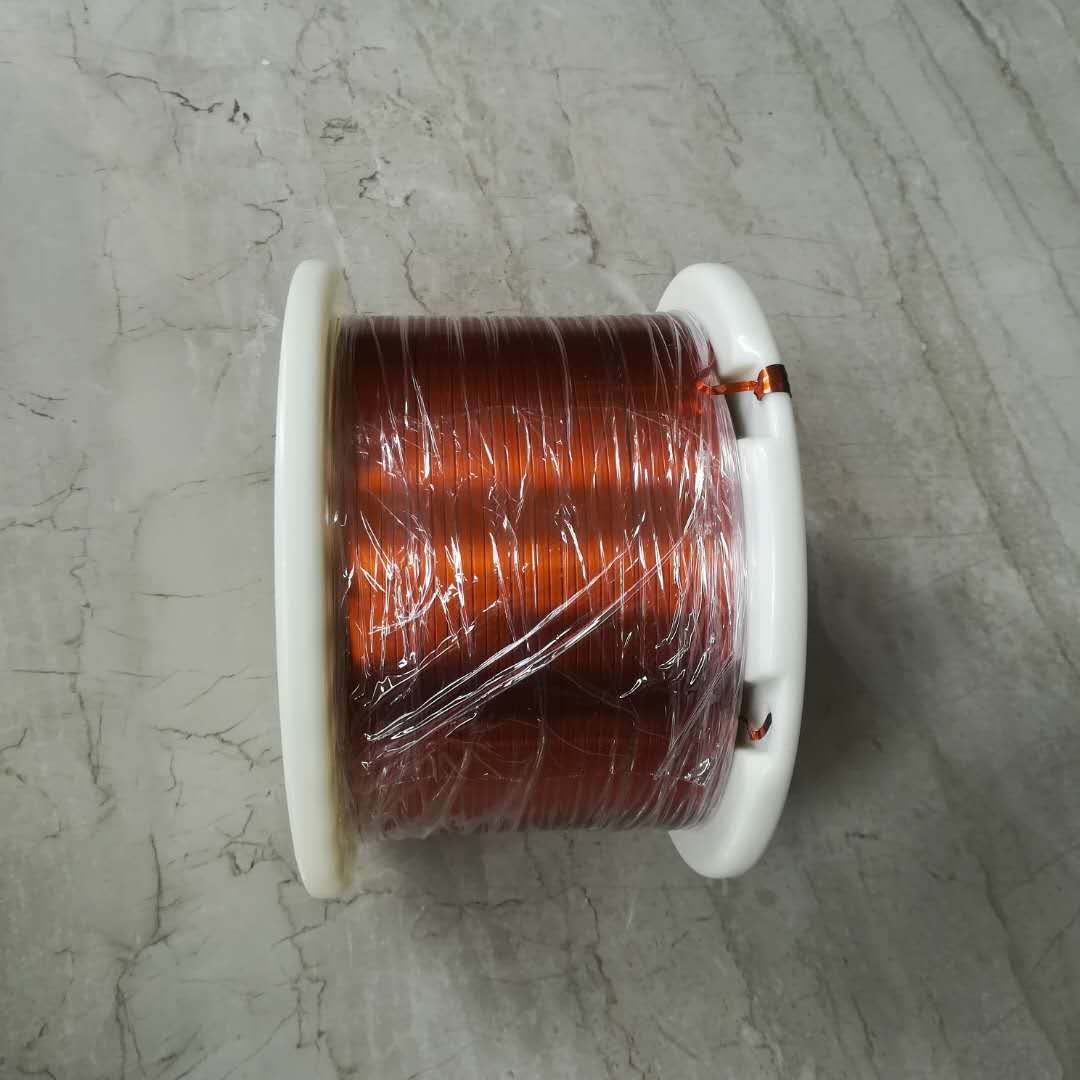

Product Image
