Transformer Copper Insulated Winding Wire Flat Wire Coil Winding Enameled Winding Wire for Submersible Motor

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Shape:	Rectangular	Width: Thickness:	25:1
Applications:	Motor Winding	Thermal Grade:	220
Key Word:	Transformer Copper Insulated Winding Wire Flat Wire Coil Winding Enameled Winding Wire For Submersible Motor
Highlight:	transformer copper insulated winding wire , flat wire coil winding enameled wire , submersible motor rectangular copper wire

Product Description

Transformer Copper Insulated Winding Wire Flat Wire Coil Winding Enameled Winding Wire for Submersible Motor

Product Overview

High-performance enameled flat copper winding wire designed specifically for submersible motors and automotive electrification applications.

Applications

Automotive Electrification (Key Growth Area):

New Energy Vehicle Drive Motors: Currently the most popular application area for flat wire motors. Flat wire motors employing "Hairpin" windings or "I-pin" technology offer significant advantages including high power density, high efficiency, excellent heat dissipation, and compact size, effectively improving electric vehicle range and performance.
New Energy Vehicle High-Voltage Components: Applications in on-board chargers, inductors, and transformer windings in DC-DC converters.

Technical Specifications & Test Results

Item	Characteristics	Standard	Test Result
1	Appearance	Smooth, Equality	OK
2	Conductor Diameter (mm)	W: 2.00 ±0.060 T: 0.15 ±0.009	W: 2.002 T: 0.153
3	Thickness of Insulation (mm)	W: 0.010-0.020 T: 0.030-0.032	W: 0.010-0.020 T: 0.030-0.032
4	Overall Diameter (mm)	W: 2.100 T: 0.200	W: 2.022 T: 0.185
5	Pinhole (Normal State)	Max ≤ 3 pcs/m	0
6	Elongation (%)	Min ≥ 30%	42
7	Flexibility and Adherence	No Crack	OK
8	Conductor Resistance (Ω/km, 20℃)	Max 64.03	57.96
9	Breakdown Voltage (AC)	Min 0.7 KV	1.5
10	Heat Shock	No Crack	OK

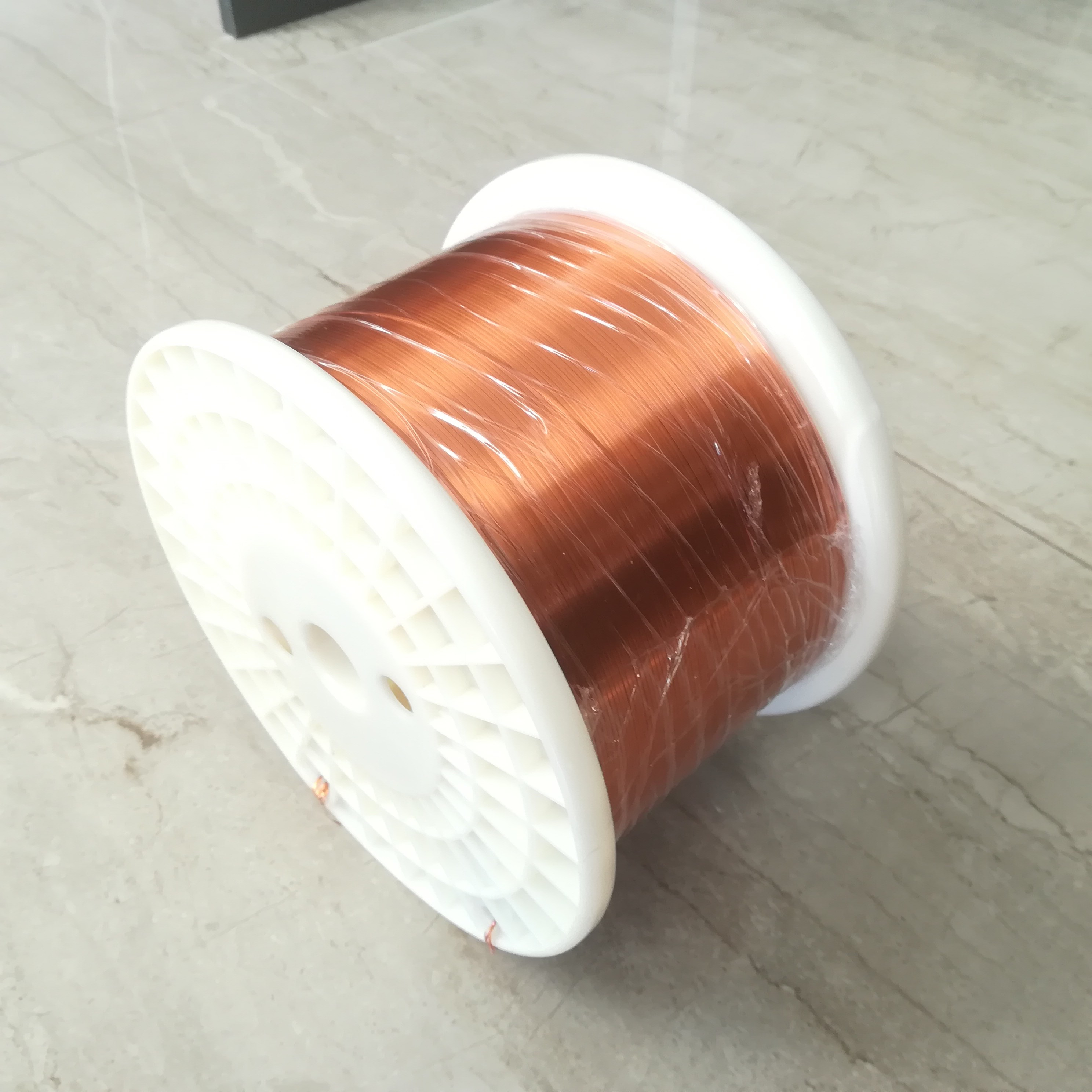

Product Image
