Name: class 220 High Temperature 2mmx0.15mm Rectangular Enameled Copper Wire For Motor
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Class 220
Price: 24.06 USD
Availability: InStock

Detail Information

Shape:	Rectangular	Width: Thickness:	25:1
Applications:	Motor Winding	Thermal Grade:	220
Key Word:	Class 220 High Temperature 2mmx0.15mm Rectangular Enameled Copper Wire For Motor
Highlight:	high temperature enameled copper wire , 2mm rectangular copper wire for motor , 0.15mm enameled wire with warranty

Product Description

Class 220 High Temperature 2mm x 0.15mm Rectangular Enameled Copper Wire For Motor

This Class 220 high-temperature rectangular enameled copper wire is specifically engineered for motor applications, featuring a 2mm x 0.15mm rectangular cross-section that provides superior space utilization and performance characteristics.

Primary Applications

Power Transformers (High-Efficiency, High-Power Types): Ideal for both dry-type and oil-immersed transformers where the flat wire design enables more compact winding space utilization. This significantly improves slot fill factor, allowing more copper in the same volume to reduce resistance losses (copper losses) and enhance transformer efficiency and power density.

New Energy Sector Transformers: Perfectly suited for photovoltaic inverters, wind power converters, and step-up/step-down transformers in energy storage systems where high efficiency and miniaturization are critical requirements.

Technical Specifications & Test Results

Item	Characteristics	Standard	Test Result
1	Appearance	Smooth, Equality	OK
2	Conductor Diameter (mm)	W: 2.00 ±0.060 T: 0.15 ±0.009	W: 2.002 T: 0.153
3	Thickness of Insulation (mm)	W: 0.010-0.020 T: 0.030-0.032	W: 0.010-0.020 T: 0.030-0.032
4	Overall Diameter (mm)	W: 2.100 T: 0.200	W: 2.022 T: 0.185
5	Pinhole (Normal State)	Max ≤ 3 pcs/m	0
6	Elongation (%)	Min ≥ 30%	42
7	Flexibility and Adherence	No Crack	OK
8	Conductor Resistance (Ω/km, 20℃)	Max 64.03	57.96
9	Breakdown Voltage (AC)	Min 0.7 KV	1.5
10	Heat Shock	No Crack	OK

Product Image

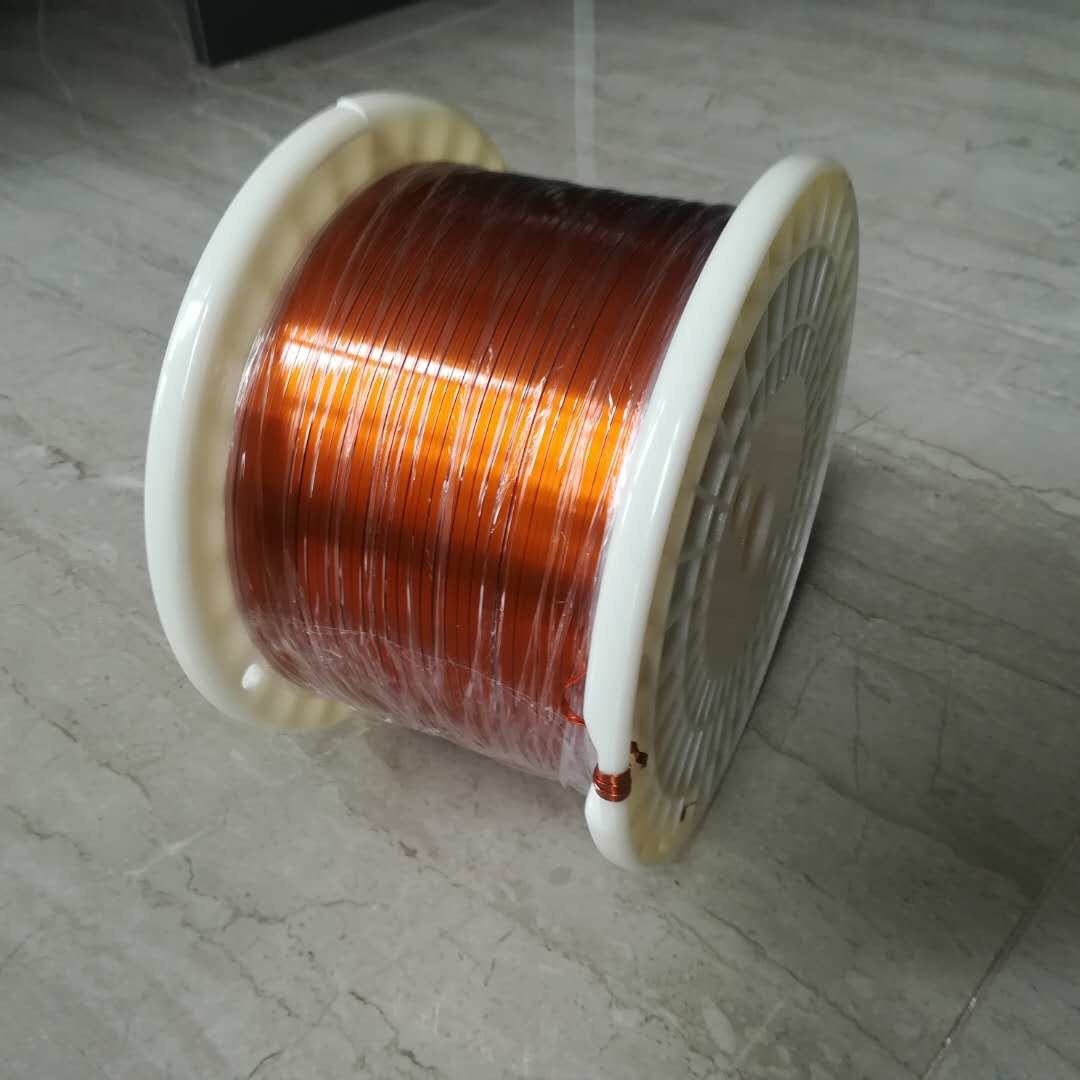

Enameled Flat Copper Wire 2.0mm rectangular cross-section

Tag:

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T
Supply Ability:	Satisfy your demand
