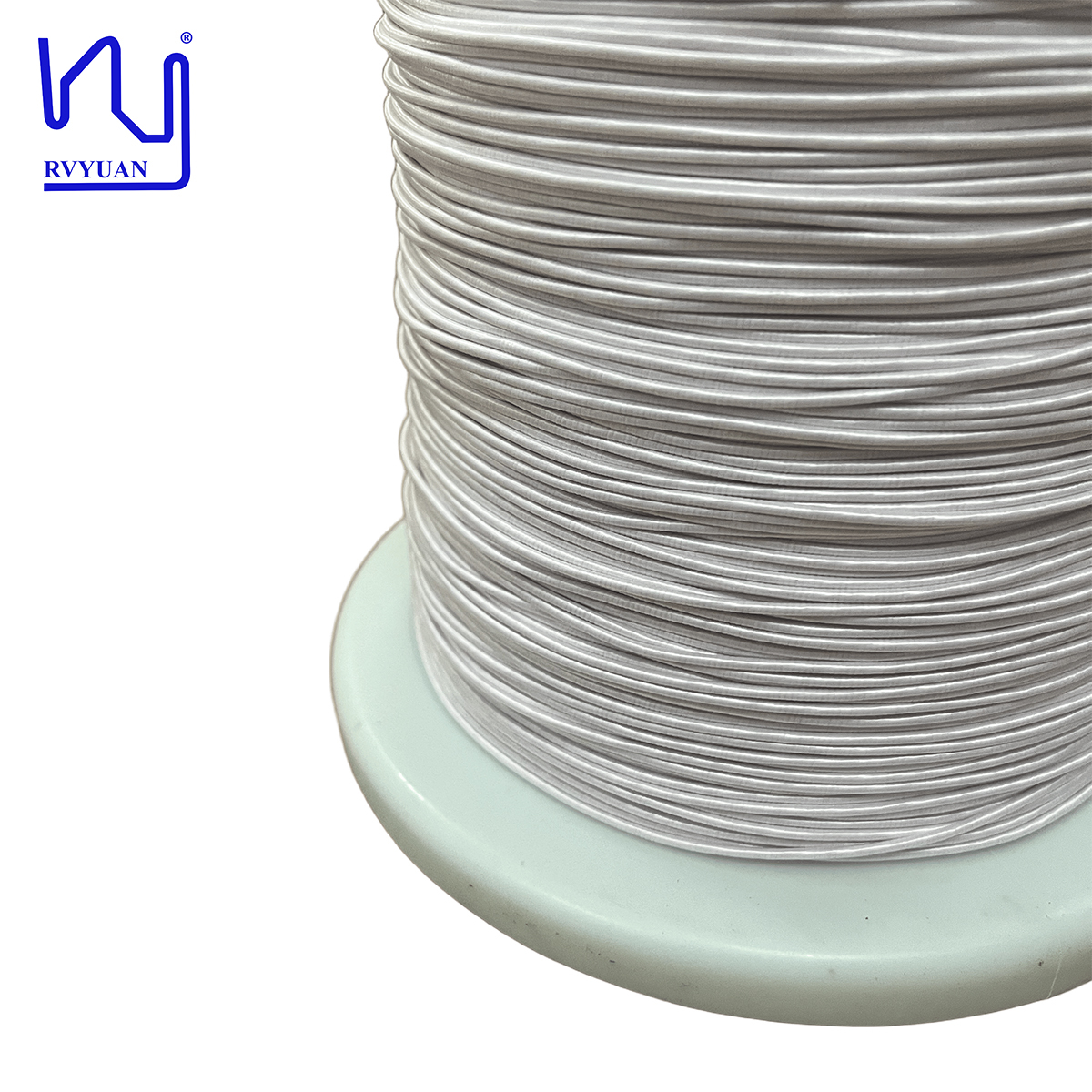

USTC UDTC 0.071mm*250 HF Insulated White Twisted Enameled Copper Silk Covered Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	3kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.071mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	250	Breakdown Voltage:	Min.500
Cover Material:	Nylon	Key Word:	USTC UDTC 0.071mm*250 HF Insulated White Twisted Enameled Copper Silk Covered Litz Wire
Highlight:	0.071mm HF insulated litz wire , white twisted enameled copper wire , silk covered USTC litz wire

Product Description

USTC UDTC 0.071mm*250 HF Insulated White Twisted Enameled Copper Silk Covered Litz Wire

This high-frequency insulated litz wire features a natural or synthetic silk covering that provides excellent performance in demanding electrical applications.

Applications

High-Frequency and High-Temperature Environments: The insulation layer of natural or synthetic silk exhibits low dielectric loss at high frequencies, making it an ideal material for high-frequency transformers, inductors, and RF coils. Certain high-temperature resistant silk materials, such as glass fiber or aramid fiber, can operate at high temperatures and are suitable for motor and electrical applications.

Technical Specifications

Item	Technical Requirements	Test Value 1	Test Value 2
Conductor Diameter (mm)	0.071±0.003	0.068	0.070
Single Wire Diameter (mm)	0.076-0.084	0.079	0.080
O.D. (mm)	Max. 1.85	1.54	1.64
Resistance Ω/m (20℃)	Max. 0.01996	0.01790	0.01788
Breakdown Voltage V	950	2600	2700
Pitch mm	29 ± 5	✓	✓
No. of Strands	250	✓	✓
