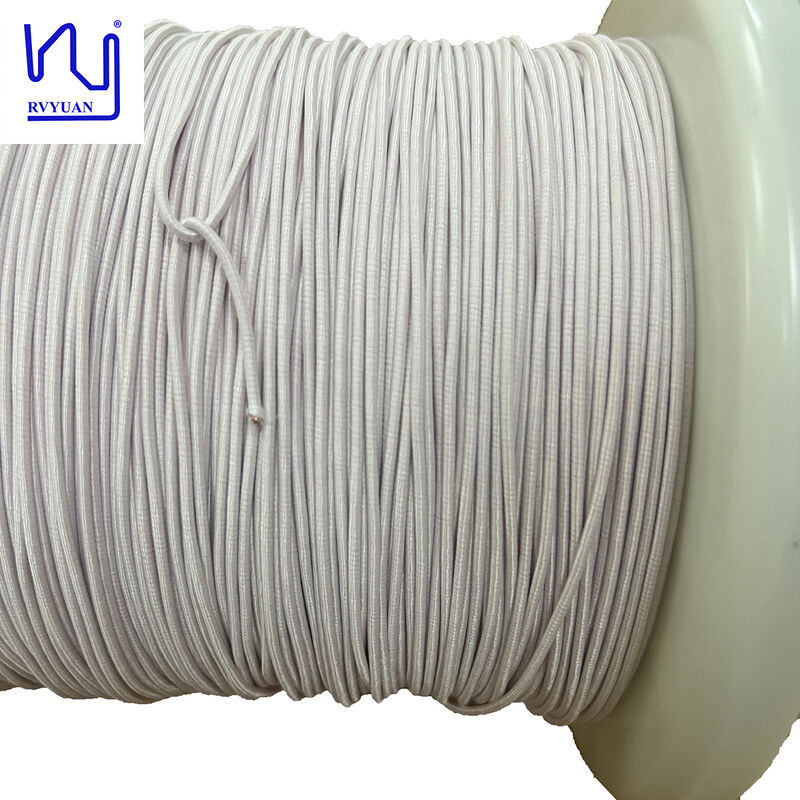

2UDTC-F 0.071mmx250 Silk Covered Litz Wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	3kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.071mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	250	Breakdown Voltage:	Min.500
Cover Material:	Nylon	Key Word:	2UDTC-F 0.071mmx250 Silk Covered Litz Wire For Transformer
Highlight:	silk covered litz wire for transformer , 0.071mm litz wire transformer , ustc litz wire 250mm

Product Description

2UDTC-F 0.071mmx250 Silk Covered Litz Wire For Transformer

This silk covered Litz wire is a custom-designed conductor featuring a single strand diameter of 0.071 mm, consisting of 250 strands twisted together. The conductor utilizes a unique double-layer nylon wrapping process that enhances the stability of the multi-strand wire. Silk covered litz wire is a specialized conductor whose insulation layer uses natural or synthetic filament materials, such as natural silk, rayon, or nylon, wrapped around a metallic conductor such as copper or copper-clad aluminum. It balances excellent electrical properties with specific environmental requirements, making it suitable for a variety of applications.

Technical Specifications

Item	Technical Requirements	Test Value 1	Test Value 2
Conductor Diameter (mm)	0.071±0.003	0.068	0.070
Single Wire Diameter (mm)	0.076-0.084	0.079	0.080
O.D. (mm)	Max. 1.85	1.54	1.64
Resistance Ω/m (20℃)	Max. 0.01996	0.01790	0.01788
Breakdown Voltage V	950	2600	2700
Pitch mm	29 ± 5	√	√
No. of Strands	250	√	√

Key Features

Custom-designed conductor with 250 strands
Single strand diameter: 0.071 mm
Double-layer nylon wrapping process for enhanced stability
Silk insulation layer for balanced electrical and environmental properties
Suitable for transformer applications
