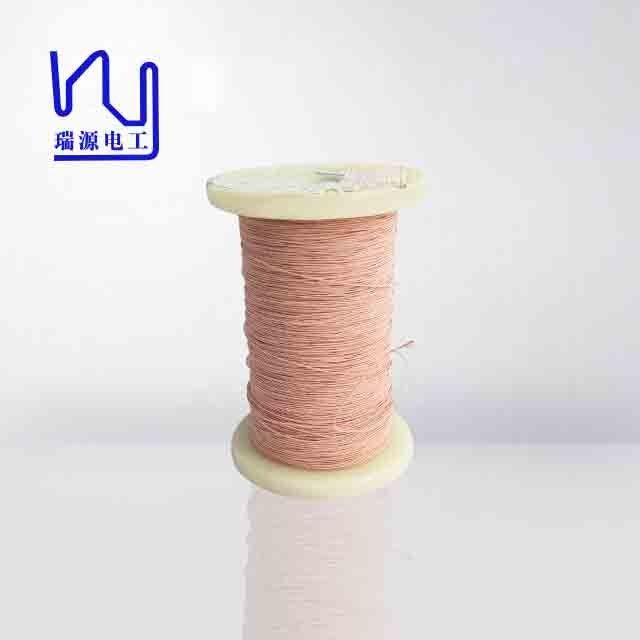

7 Stranded Silk Covered Litz Wire 0.025mm High Frequency Silk Covered Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	3kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.025mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	7	Breakdown Voltage:	Min.500
Cover Material:	Nylon	Key Word:	7 Stranded Silk Covered Litz Wire 0.025mm High Frequency Silk Covered Litz Wire
Highlight:	7 stranded silk litz wire , high frequency silk litz wire , 0.025mm silk covered wire

Product Description

7 Stranded Silk Covered Litz Wire 0.025mm High Frequency Silk Covered Litz Wire

Ultra-fine nylon serving litz wire is designed for cutting-edge applications with extreme requirements for space, weight, reliability, and performance.

Key Advantages

High Space Utilization: The nylon filament insulation layer is thinner and more uniform than enamel coatings, allowing for more turns within limited space
High Reliability: Nylon filament sheath provides excellent mechanical protection and insulation strength, resistant to abrasion and scratches
Environmental Stability: Maintains stable performance in high-temperature and high-humidity environments

Technical Specifications

Item	Technical Requirements	Test Results
Conductor Diameter (mm)	0.0250-0.0270	0.0255 \| 0.0254 \| 0.0262 \| 0.0256 \| 0.0262
Single Wire Diameter (mm)	0.0330-0.0350	0.0348 \| 0.0347 \| 0.0343 \| 0.0335 \| 0.0345
O.D. (mm)	0.107-0.141	0.113 \| 0.115 \| 0.114 \| 0.116 \| 0.116
Resistance of Single Wire Ω/m (20℃)	29.81-34.77	31.99 \| 31.76 \| 31.69 \| 32.03 \| 31.60
Resistance of Litz Wire Ω/m (20℃)	4.25-5.87	4.747 \| 4.703 \| 4.699 \| 4.726 \| 4.712
Breakdown Voltage V	Min. 500	1100 \| 1045 \| 1056 \| 1184 \| 1032
Pitch mm	3 ± 1	3 \| 3 \| 3.1 \| 3 \| 3
No. of Strands	7	7 \| 7 \| 7 \| 7 \| 7
