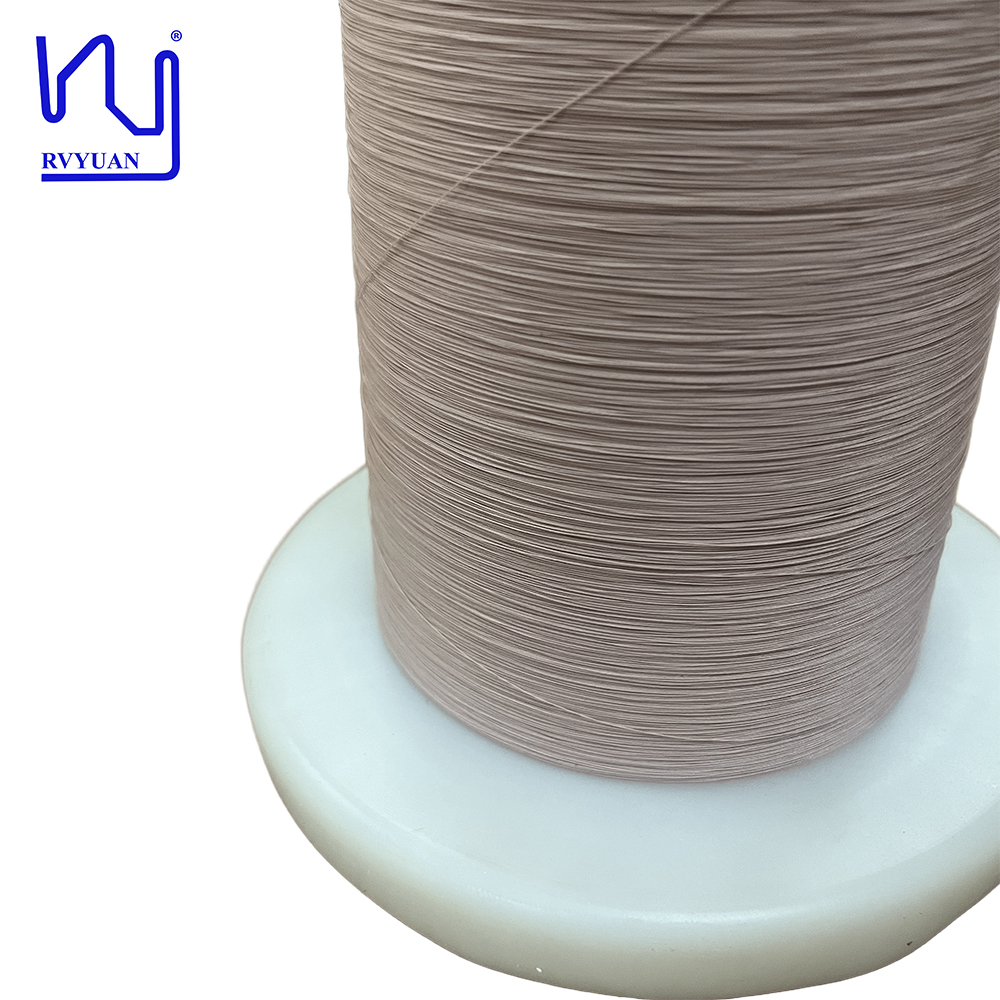

Custom 7Strands/0.0250mm Nylon Served Litz Wire For small transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	3kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.025mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	7	Breakdown Voltage:	Min.500
Cover Material:	Nylon	Key Word:	Custom 7Strands/0.0250mm Nylon Served Litz Wire For Small Transformer
Highlight:	Custom Nylon Served Litz Wire , 0.0250mm Litz Wire for transformers , Small transformer Litz Wire with warranty

Product Description

Custom 7Strands/0.0250mm Nylon Served Litz Wire For Small Transformer

This type of silk covered litz wire is ideally suited for use in precision medical sensors and probes, including miniature coils used in endoscopes and ultrasound equipment. Its delicate structure enables the fabrication of high-precision sensors for measuring minute displacements, pressures, and flow rates, making it indispensable in applications such as linear variable differential transformers (LVDTs).

Technical Specifications

Item	Technical Requests	Test Result
Conductor Diameter (mm)	0.0250-0.0270	0.0255 \| 0.0254 \| 0.0262 \| 0.0256 \| 0.0262
Single Wire Diameter (mm)	0.0330-0.0350	0.0348 \| 0.0347 \| 0.0343 \| 0.0335 \| 0.0345
O.D. (mm)	0.107-0.141	0.113 \| 0.115 \| 0.114 \| 0.116 \| 0.116
Resistance of Single Wire Ω/m (20℃)	29.81-34.77	31.99 \| 31.76 \| 31.69 \| 32.03 \| 31.60
Resistance of Litz Wire Ω/m (20℃)	4.25-5.87	4.747 \| 4.703 \| 4.699 \| 4.726 \| 4.712
Breakdown Voltage V	Min. 500	1100 \| 1045 \| 1056 \| 1184 \| 1032
Pitch mm	3 ± 1	3 \| 3 \| 3.1 \| 3 \| 3
No. of Strands	7	7 \| 7 \| 7 \| 7 \| 7
