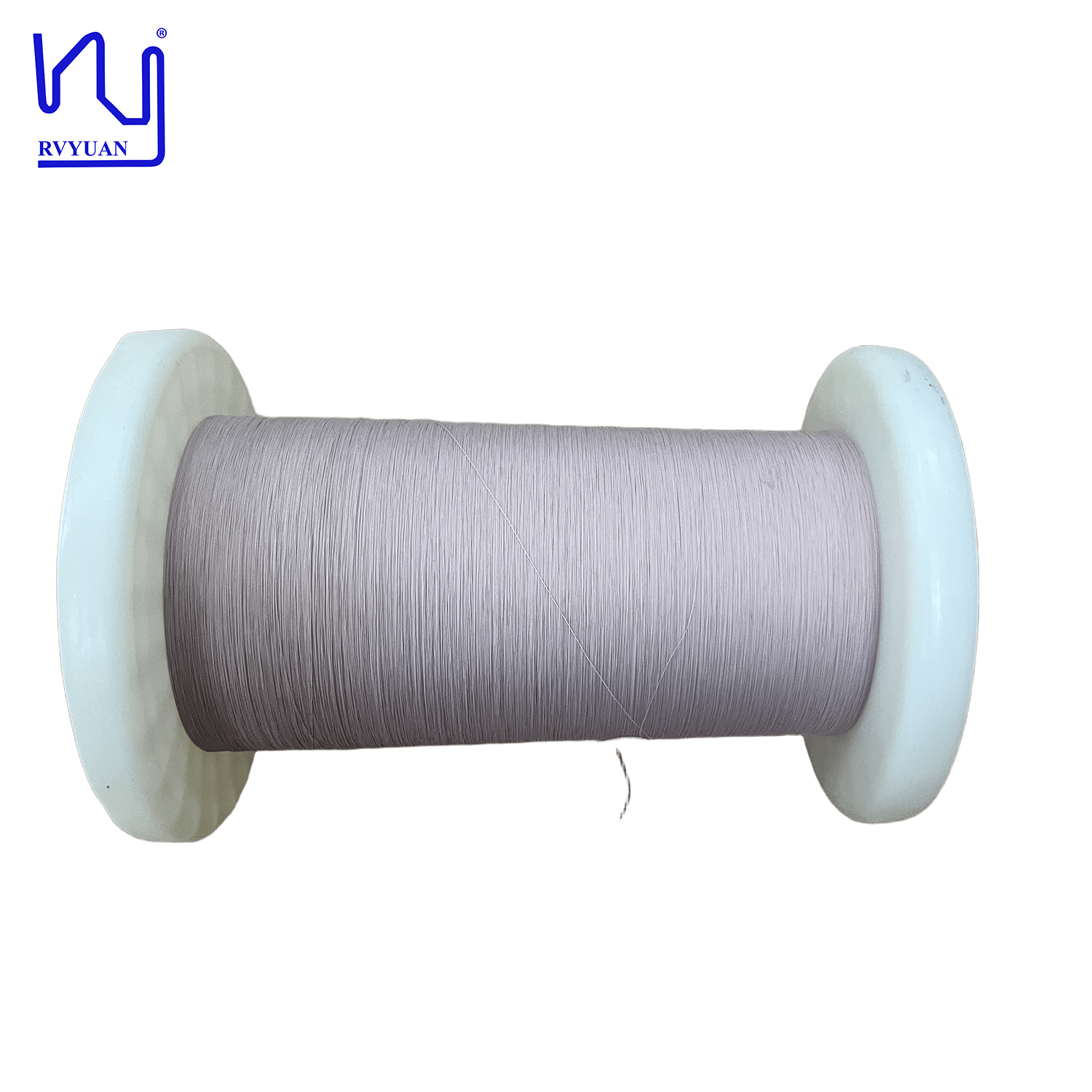

2USTC-F 0.025mmx7 Silk Covered Litz Wire For Precision Medical Sensors

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	3kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.025mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	7	Breakdown Voltage:	Min.500
Cover Material:	Nylon	Key Word:	2USTC-F 0.025mmx7 Silk Covered Litz Wire For Precision Medical Sensors
Highlight:	silk covered litz wire for medical sensors , ultra thin 0.025mm litz wire , precision medical sensor litz wire

Product Description

2USTC-F 0.025mmx7 Silk Covered Litz Wire For Precision Medical Sensors

The 2USTC-F 0.025mmx7 Silk Covered Litz Wire is engineered specifically for precision medical sensors and high-end medical devices. One of the key advantages of this nylon serving litz wire is its suitability for implantable medical devices such as pacemakers and neurostimulators, where reliability and biocompatibility are paramount. Its ultra-fine diameter allows for compact designs, ensuring these devices can operate stably and reliably within the body for extended periods without compromising functionality.

Technical Specifications

Item	Technical Requirements	Test Result
Conductor Diameter (mm)	0.0250-0.0270	0.0255 \| 0.0254 \| 0.0262 \| 0.0256 \| 0.0262
Single Wire Diameter (mm)	0.0330-0.0350	0.0348 \| 0.0347 \| 0.0343 \| 0.0335 \| 0.0345
O.D. (mm)	0.107-0.141	0.113 \| 0.115 \| 0.114 \| 0.116 \| 0.116
Resistance of Single Wire Ω/m (20℃)	29.81-34.77	31.99 \| 31.76 \| 31.69 \| 32.03 \| 31.60
Resistance of Litz Wire Ω/m (20℃)	4.25-5.87	4.747 \| 4.703 \| 4.699 \| 4.726 \| 4.712
Breakdown Voltage V	Min. 500	1100 \| 1045 \| 1056 \| 1184 \| 1032
Pitch mm	3 ± 1	3 \| 3 \| 3.1 \| 3 \| 3
No. of Strands	7	7 \| 7 \| 7 \| 7 \| 7
