Super Thin Litz Wire 0.025mmx7 Nylon Serving Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	3kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.025mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	7	Breakdown Voltage:	Min.500
Cover Material:	Nylon	Key Word:	Super Thin Litz Wire 0.025mmx67 Nylon Serving Litz Wire
Highlight:	Super Thin Litz Wire 0.025mmx7 , Nylon Serving Litz Wire , USTC Litz Wire with warranty

Product Description

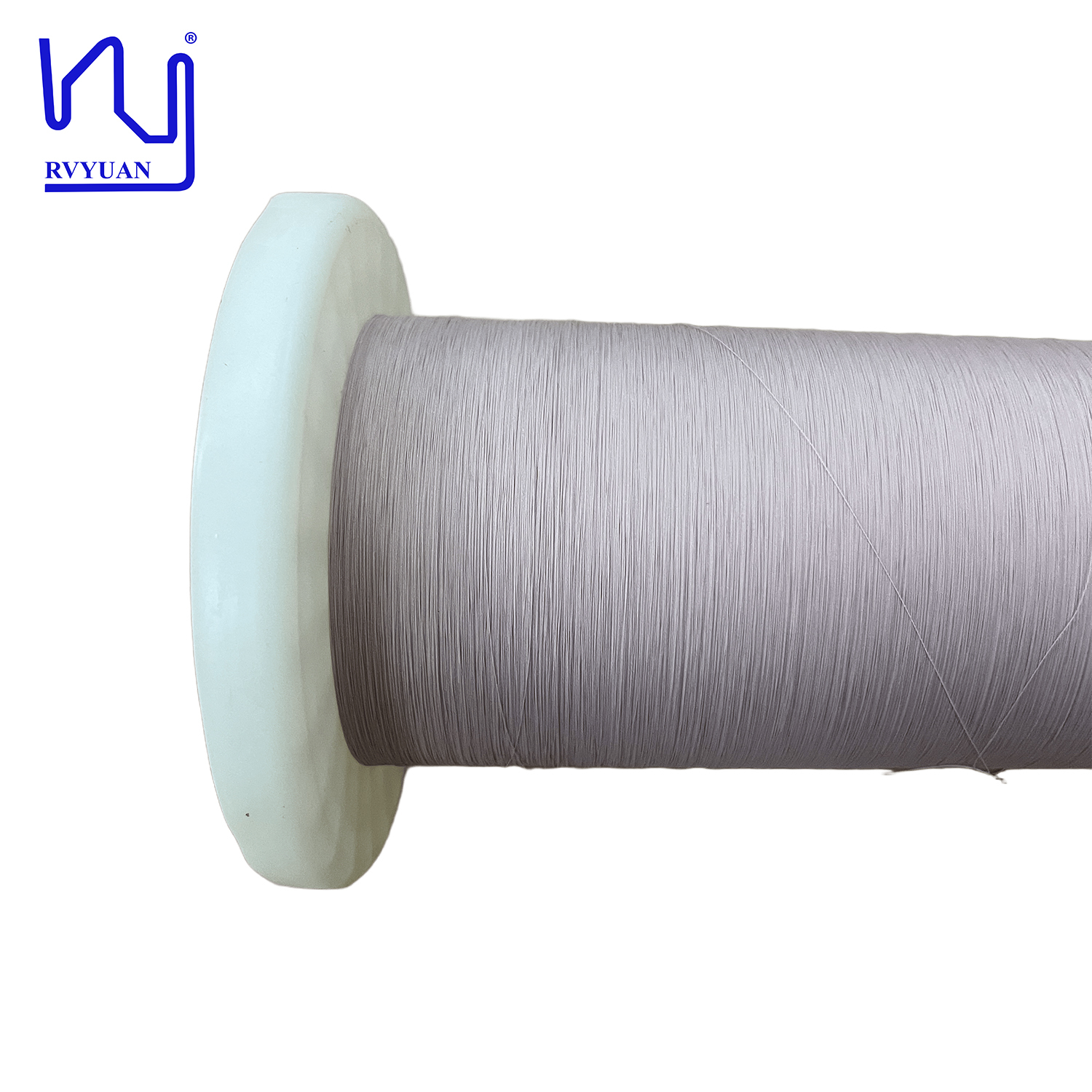

Super Thin Litz Wire 0.025mmx7 Nylon Serving Litz Wire

With a single wire size of only 0.025mm, this represents the thinnest enameled copper wire used to manufacture nylon serving litz wire. Composed of seven tightly twisted strands, it delivers exceptional flexibility and performance to meet the demanding requirements of various professional applications.

Technical Specifications

Item	Technical Requirements	Test Results
Conductor Diameter (mm)	0.0250-0.0270	0.0255 \| 0.0254 \| 0.0262 \| 0.0256 \| 0.0262
Single Wire Diameter (mm)	0.0330-0.0350	0.0348 \| 0.0347 \| 0.0343 \| 0.0335 \| 0.0345
O.D. (mm)	0.107-0.141	0.113 \| 0.115 \| 0.114 \| 0.116 \| 0.116
Resistance of Single Wire Ω/m (20℃)	29.81-34.77	31.99 \| 31.76 \| 31.69 \| 32.03 \| 31.60
Resistance of Litz Wire Ω/m (20℃)	4.25-5.87	4.747 \| 4.703 \| 4.699 \| 4.726 \| 4.712
Breakdown Voltage V	Min. 500	1100 \| 1045 \| 1056 \| 1184 \| 1032
Pitch mm	3 ± 1	3 \| 3 \| 3.1 \| 3 \| 3
No. of Strands	7	7 \| 7 \| 7 \| 7 \| 7
