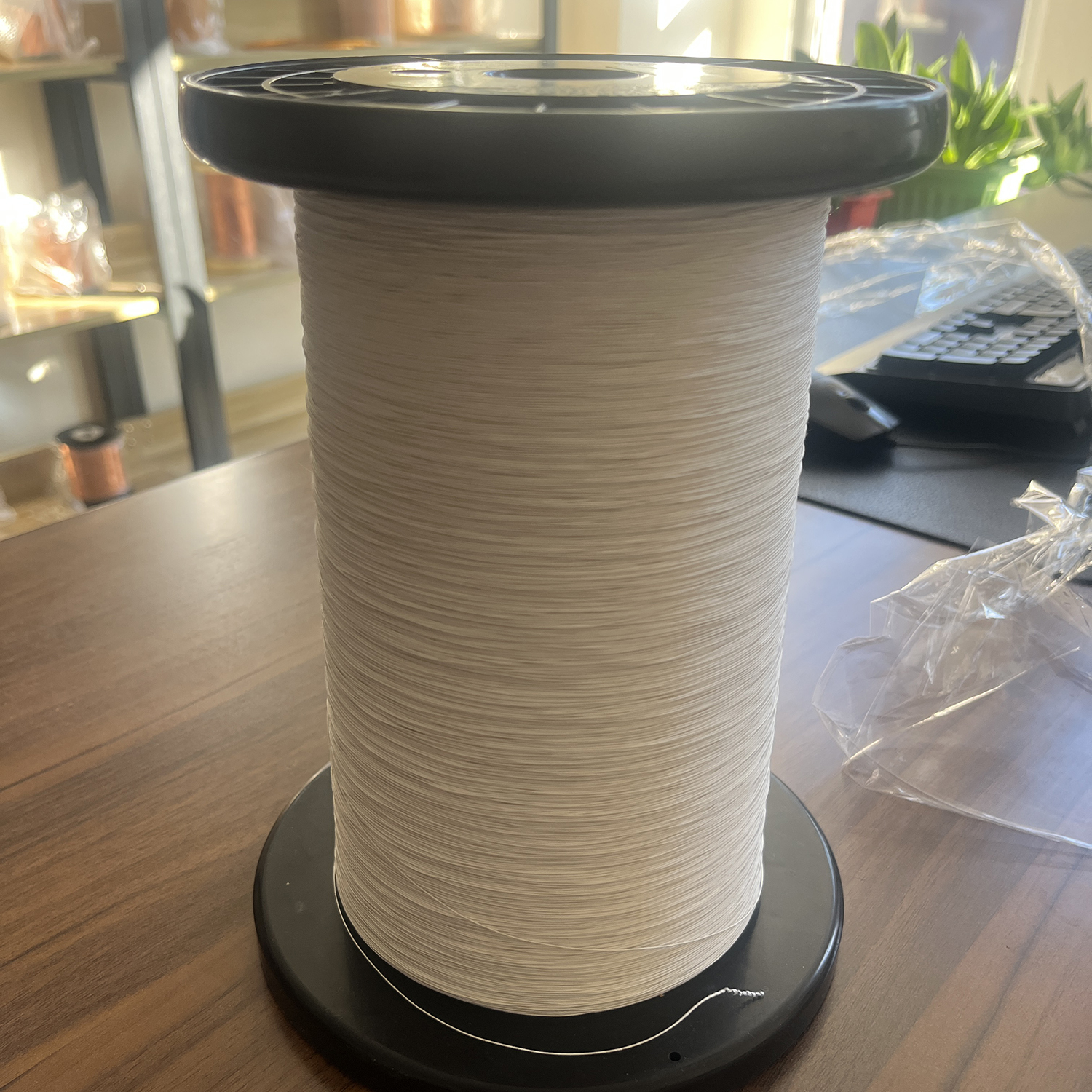

99.999% 5N OCC Natural Silk Covered Silver Litz Wire For High End Audio

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	OCC

Minimum Order Quantity:	2 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	20days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	99.99% 4N OCC Silver Litz Wire With Natural Silk Cover For Audio	Conductor Diameter:	0.06mm
Conductor Material:	Silver	Key Word:	99.99% 4N OCC Silver Litz Wire With Natural Silk Cover For Audio
No. Of Strands:	24	Cover Material:	Natural Silk
Purity Level Of Silver:	99.99%
Highlight:	5N OCC silver litz wire , natural silk covered audio wire , high end OCC litz cable

Product Description

99.999% 5N OCC Natural Silk Covered Silver Litz Wire For High End Audio

Premium Audio Performance

This silk covered Litz wire is engineered for exceptional performance in high-end audio systems, combining cutting-edge technology with premium materials for unparalleled sound quality.

Advanced Construction

24 strands of ultra-fine 0.06mm diameter wire for optimal strength and flexibility
Pure silver single wires without enamel coating for superior conductivity
Natural silk wrapping providing excellent insulation and durability
Enhanced resistance to environmental factors and wear

Technical Specifications

Item	Standard	Test Result
Surface	No crack, smooth	✓
Single wire conductor (mm)	0.06±0.003	0.060
No. Of strands	24	✓
Pitch	8±2mm	✓
Resistance	≤298.96Ω/km (20℃)	236.3
Breakdown voltage	≥0.95kv	1.2

Material Selection Guidance

The choice between pure silver wire and silver-plated copper wire depends on the user's budget, sound quality requirements, and specific application scenario.
