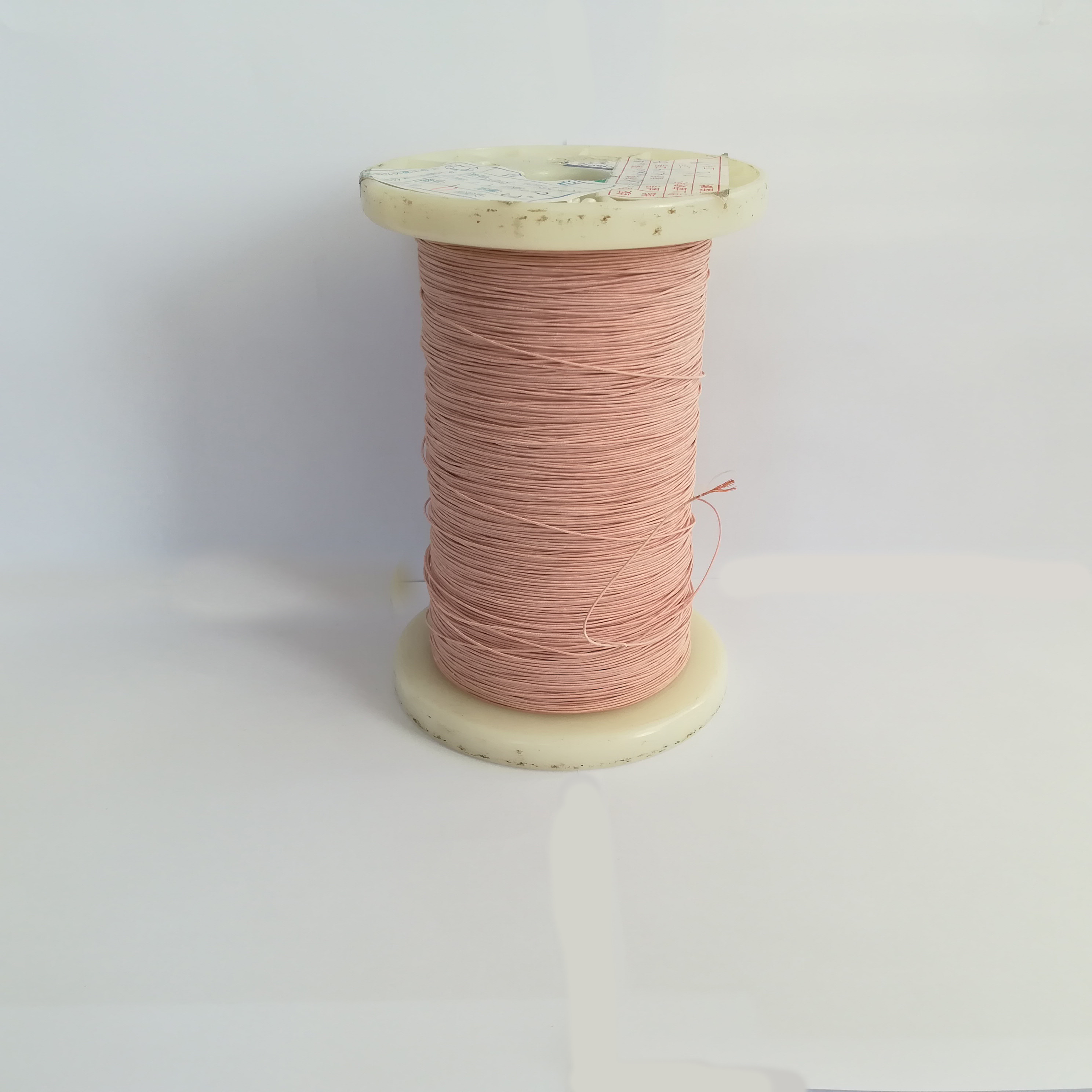

0.071mmx615 Nylon Serving Litz Wire Copper HF Transformer

0.071mmx615 Nylon Serving Litz Wire Copper HF Transformer
0.071mmx615 Nylon Serving Litz Wire Copper HF Transformer
0.071mmx615 Nylon Serving Litz Wire Copper HF Transformer
Basic Information
Place of Origin: China
Brand Name: RVYUAN
Certification: ISO9001/ISO14001 /UL/SGS
Model Number: USTC
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: T/T/ Paypal
Supply Ability: Satisfy your demand
Get Best Price Contact Now
Detail Information
Diameter: 0.071mm Temperature: 155
Certification: IEC/NEMA/JIS/RoHS/ISO Conductor: Copper
Strands: 615 Breakdown Voltage: Min.950
Cover Material: Nylon Key Word: 0.071mmx615 Nylon Serving Litz Wire Copper HF Transformer
Highlight:

0.071mm nylon litz wire

,

615 nylon litz wire

,

HF transformer litz wire

Product Description

0.071mmx615 Nylon Serving Litz Wire Copper HF Transformer
0.071mmx615 Nylon Serving Litz Wire Copper HF Transformer
Benefits of Nylon Coating
  • Reduces "Glue Penetration" Problem: After winding transformers or inductors, they are typically impregnated with insulating varnish for fixation and moisture protection. Without an outer layer, the insulating varnish can easily over-penetrate the Litz wire, filling gaps between strands. This increases harness rigidity and alters the effective dielectric constant, thereby increasing distributed capacitance and reducing high-frequency performance. The nylon yarn layer forms a physical barrier that effectively limits varnish over-penetration, maintaining the high-frequency characteristics of the Litz wire design.
  • Enhanced Resistance to Flexural Fatigue: Nylon yarn provides extra flexibility and elasticity, resulting in more uniform stress distribution on the internal metal conductor during repeated bending, thus extending the wire's lifespan.
  • Identification and Aesthetics: Nylon yarns are available in various colors (such as white, yellow, blue) to distinguish different specifications and uses, making production easier and improving product appearance.
Technical Specifications
Item No. Outer Diameter of Single Wire (mm) Conductor Diameter (mm) Overall Dimension (mm) Resistance (Ω/m) Breakdown Voltage (V) Pitch
Tech Requirement 0.077-0.084 0.071±0.003 Max. 2.83 ≤0.008114 ≥950 40±10
Sample 1 0.079 0.068 2.24 0.007434 2600 √
Sample 2 0.081 0.070 2.37 0.007385 2500 √
0.071mmx615 Nylon Serving Litz Wire Copper HF Transformer 0
