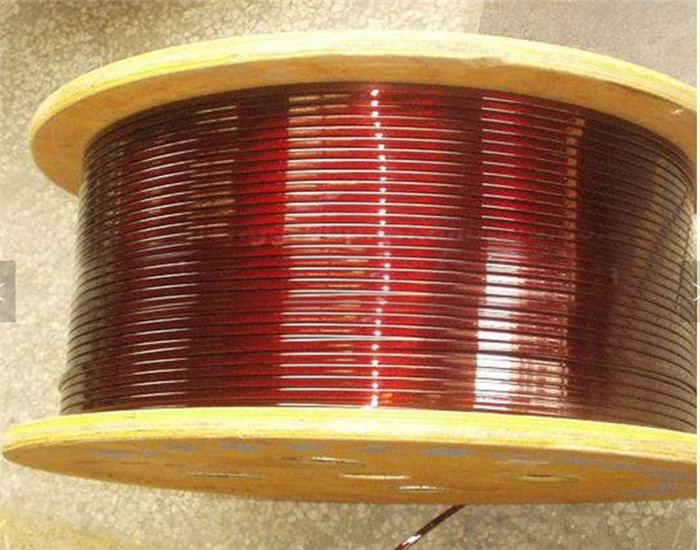

Rectangular Enameled Copper Wire 220℃ Temperature Resistance Suitable for Motor Stator Winding

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Shape:	Rectangular	Conductor Dimension (Width):	9mm
Unilateral Insulation Layer Thickness (Width):	0.7mm	Applications:	Motor Winding
Thermal Grade:	220	Key Word:	Rectangular Enameled Copper Wire 220℃ Temperature Resistance Suitable For Motor Stator Winding
Highlight:	Rectangular enameled copper wire for motors , High-temperature resistant copper winding wire , Motor stator winding enameled wire

Product Description

Rectangular Enameled Copper Wire 220℃ Temperature Resistance

Motor Stator Winding Application

Industry experts recognize that the flat wire market is currently experiencing rapid growth. The continuous expansion of application scenarios creates significant opportunities for industry players. Rvyuan's initiative to enhance flat wire product specifications not only enriches its product portfolio but also aligns with the core needs of industrial manufacturing upgrades and new energy industry development, positioning the company to succeed in increasingly competitive markets.

Technical Specifications

Conductor Dimension (mm)	Thickness of Single Insulation (mm)	Overall Dimension (mm)	Max. Conductor Resistance 20℃ (Ω/km)	Breakdown Voltage (kV)
Width: 9.000±0.08 Thickness: 0.700±0.03	0.025±0.015	Max. Width: 9.10 Max. Thickness: 0.78	2.978	0.7 Min
