Rectangular Wire 9.0mm 8mm 7mm Enameled Flat Copper Wire For Transformer

Basic Information
Place of Origin: China
Brand Name: RVYUAN
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: Class 220
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: T/T
Supply Ability: Satisfy your demand
Detail Information
Shape: Rectangular Conductor Dimension (Width): 9mm
Unilateral Insulation Layer Thickness (Width): 0.7mm Applications: Motor Winding
Thermal Grade: 220 Key Word: Rectangular Wire 9.0mm 8mm 7mm Enameled Flat Copper Wire For Transformer
Highlight:

enameled flat copper wire transformer

,

rectangular copper wire 9.0mm

,

8mm enameled transformer wire


Product Description

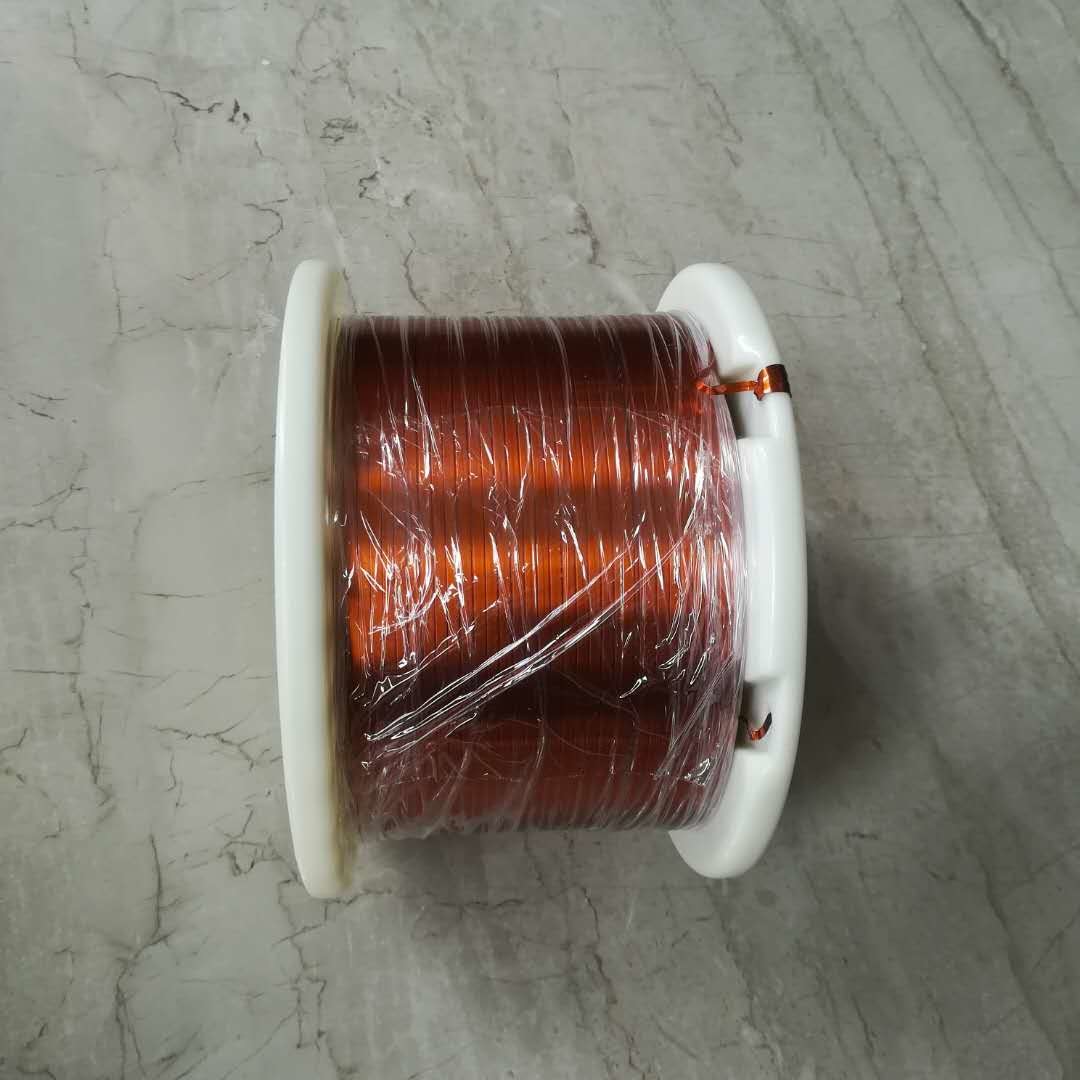

Rectangular Wire 9.0mm 8mm 7mm Enameled Flat Copper Wire For Transformer
As a renowned high-quality electromagnetic wire supplier, Rvyuan has long focused on the R&D and production of high-grade electromagnetic wire products, with flat wires as one of its core regular offerings. Backed by a rigorous quality control system and advanced production processes, Rvyuan flat wire products meet stringent industry standards across key metrics such as dimensional accuracy, insulation performance, and temperature resistance, consistently fulfilling the personalized needs of various customers. The company has amassed extensive customer resources and a solid market reputation in sectors including industrial motors and new energy storage.
Technical Specifications
Conductor Dimension (mm) Thickness of Single Insulation (mm) Overall Dimension (mm) Max. Conductor Resistance 20℃ (Ω/km) Breakdown Voltage (kV)
Width: 9.000±0.08
Thickness: 0.700±0.03
0.025±0.015 Width: Max. 9.10
Thickness: Max. 0.78
2.978 0.7 Min
Rectangular Wire 9.0mm 8mm 7mm  Enameled Flat Copper Wire For Transformer 0
