| Place of Origin: | China |
|---|---|
| Brand Name: | RVYUAN |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | T/T |
| Supply Ability: | Satisfy your demand |
| Shape: | Rectangular | Width: Thickness: | 25:1 |
|---|---|---|---|
| Applications: | Motor Winding | Thermal Grade: | 220 |

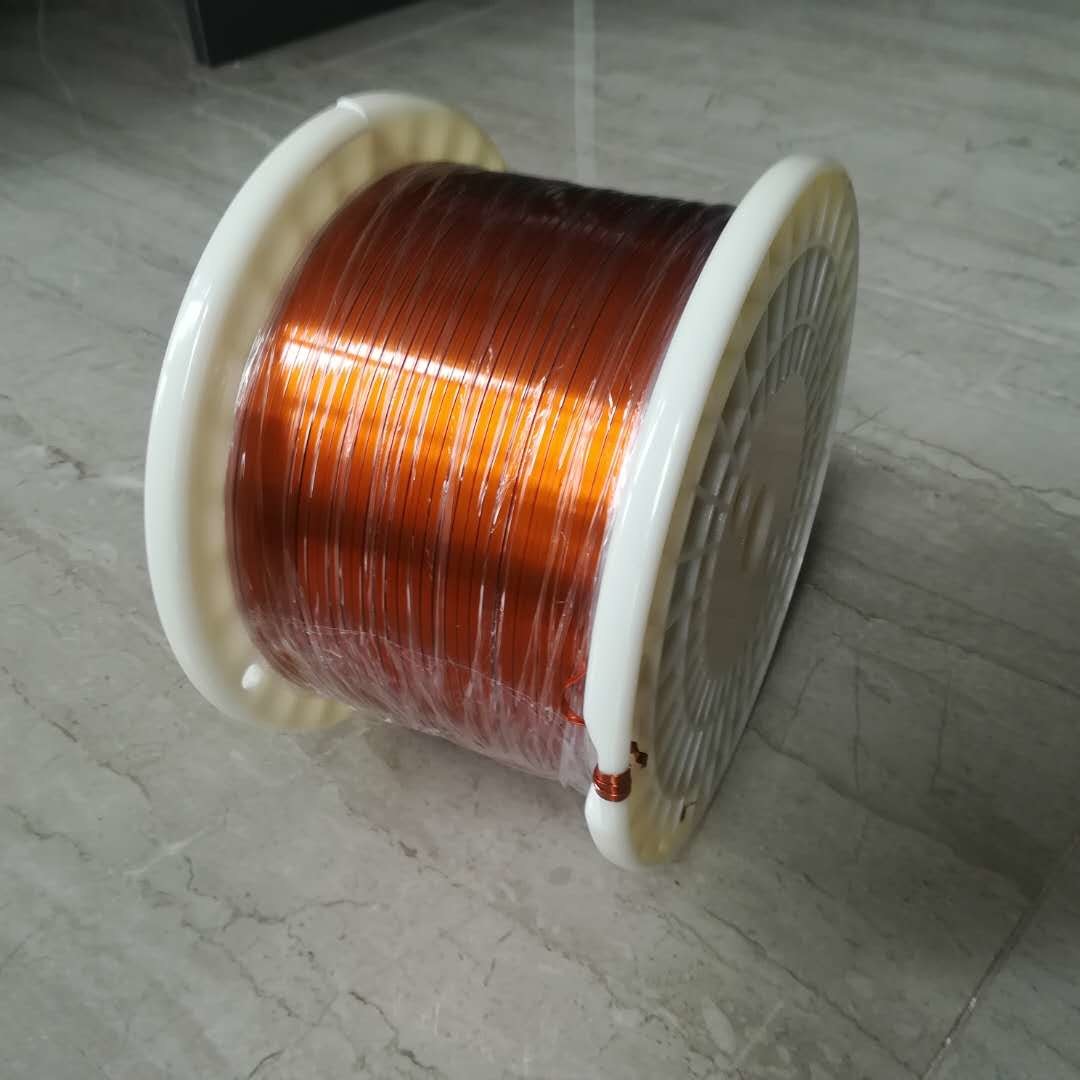

| Key Word: | Flat Enamelled Copper Wire , Fine Rectangular Copper Wire For Small Generator | ||
| Highlight: | flat enamelled copper wire,fine rectangular copper wire,small generator copper wire |
||
| Item | Characteristics | Standard | Test Result |
|---|---|---|---|
| 1 | Appearance | Smooth, Equality | OK |
| 2 | Conductor Diameter (mm) | W: 2.00 ±0.060 T: 0.15 ±0.009 |
W: 2.002 T: 0.153 |
| 3 | Thickness of Insulation (mm) | W: 0.010-0.020 T: 0.030-0.032 |
W: 0.010-0.020 T: 0.030-0.032 |
| 4 | Overall Diameter (mm) | W: 2.100 T: 0.200 |
W: 2.022 T: 0.185 |
| 5 | Pinhole (Normal State) | Max ≤ 3 pcs/m | 0 |
| 6 | Elongation (%) | Min ≥ 30% | 42 |
| 7 | Flexibility and Adherence | No Crack | OK |
| 8 | Conductor Resistance (Ω/km, 20℃) | Max 64.03 | 57.96 |
| 9 | Breakdown Voltage (AC) | Min 0.7 KV | 1.5 |
| 10 | Heat Shock | No Crack | OK |
