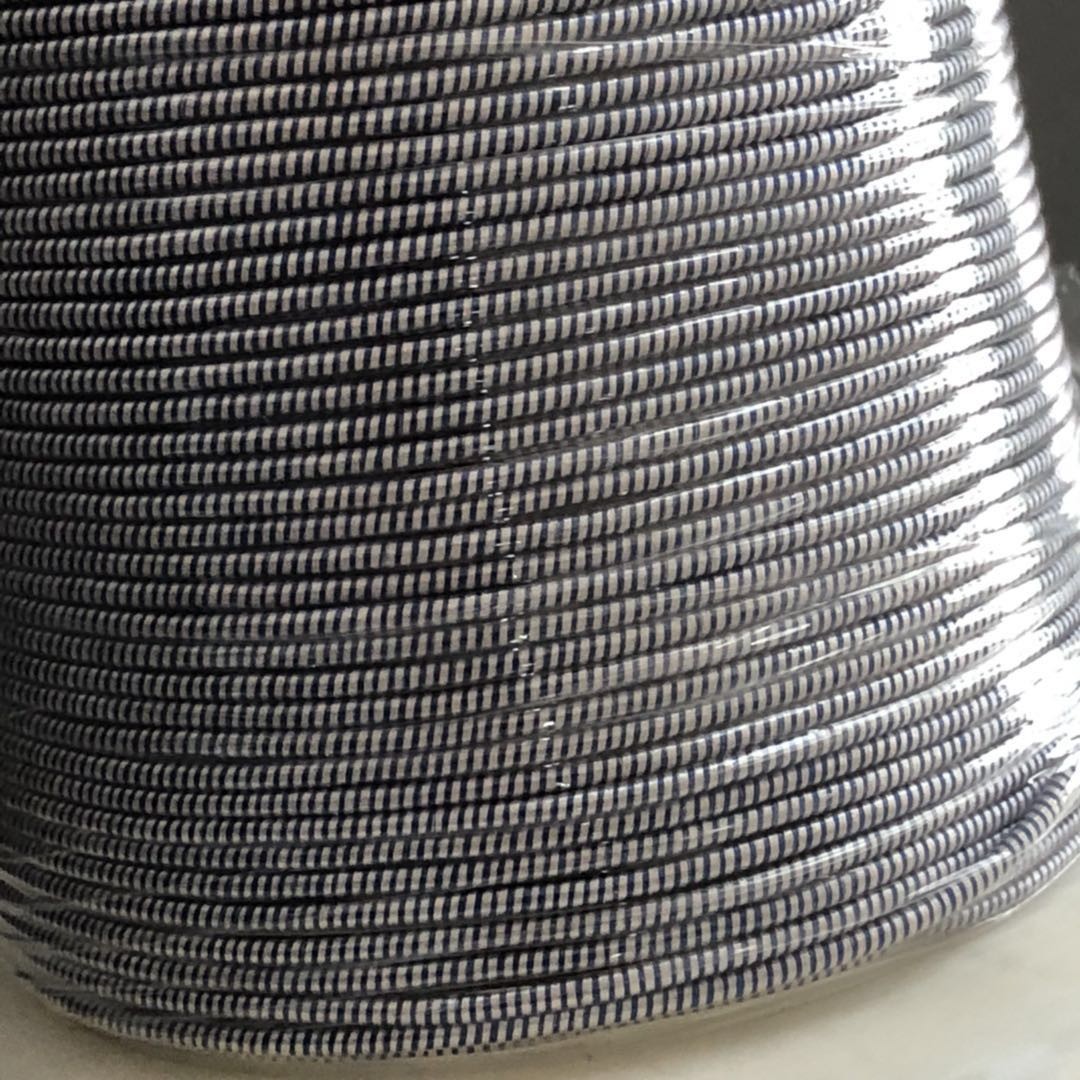

High Frequency 180°C Heat Resistant Enameled Litz Copper Wire 180°C Heat Resistant Enameled Litz Copper Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.071mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	615	Breakdown Voltage:	Min.950
Cover Material:	Nylon	Key Word:	High Frequency 180°C Heat Resistant Enameled Litz Copper Wire 180°C Heat Resistant Enameled Litz Copper Wire
Highlight:	180°C heat resistant enameled litz wire , high frequency litz copper wire , heat resistant enameled copper wire

Product Description

High Frequency 180°C Heat Resistant Enameled Litz Copper Wire

Applications of Litz Wire

High-frequency inductors where efficiency is paramount
RF coils in amateur radio and broadcast equipment
Ferrite rod antennas in AM radios
Pickup coils in metal detectors
Magnetic resonance imaging (MRI) gradient and shim coils

Applications of Nylon Serving on Other Wires

Magnet wire in general transformer and motor windings for added durability
Hook-up wire in electronics for abrasion resistance

Technical Specifications

Item No.	Outer diameter of single wire (mm)	Conductor diameter (mm)	Overall dimension (mm)	Resistance (Ω/m)	Breakdown voltage (V)	Pitch
Tech requirement	0.077-0.084	0.071±0.003	Max. 2.83	≤0.008114	≥950	40±10
Sample 1	0.079	0.068	2.24	0.007434	2600	√
Sample 2	0.081	0.070	2.37	0.007385	2500	√
