10kg Litz Wire 0.071mm 0.08mm Stranded Copper Wire USTC Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.071mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	1075	Breakdown Voltage:	Min.950
Cover Material:	Nylon	Product Name:	2USTC-F/H Nylon Served Litz Wire Single Wire 0.071mm Stranded Copper Wire
Key Word:	2USTC-F/H Nylon Served Litz Wire Single Wire 0.071mm Stranded Copper Wire
Highlight:	10kg Litz Wire stranded copper , 0.071mm USTC Litz Wire , 0.08mm stranded copper wire

Product Description

10kg Litz Wire 0.071mm 0.08mm Stranded Copper Wire USTC Wire

Product Overview

Ruiyuan offers customized Litz wire solutions designed to meet specific customer needs. Our product range includes not only Litz wire, but also nylon serving Litz wire and tape Litz wire, all available with copper, silver, or silver-plated conductors.

Ruiyuan supports small-batch customization to ensure you receive specifications perfectly suited to your application requirements.

If you wish to enhance the performance of your electrical systems using high-quality Litz wire, contact Ruiyuan today. Our team of experts is ready to assist you in selecting the right Litz wire to ensure optimal performance for your transformer windings and wireless charging projects.

Technical Specifications

Item No.	Outer diameter of single wire (mm)	Conductor diameter (mm)	Overall dimension (mm)	Resistance (Ω/m)	Breakdown voltage (V)	Pitch
Tech requirement	0.077-0.084	0.071±0.003	Max. 3.79	≤0.004642	≥950	40±10
Sample 1	0.079	0.068	3.18	0.004325	2800	✓
Sample 2	0.081	0.070	3.32	0.044317	2700	✓

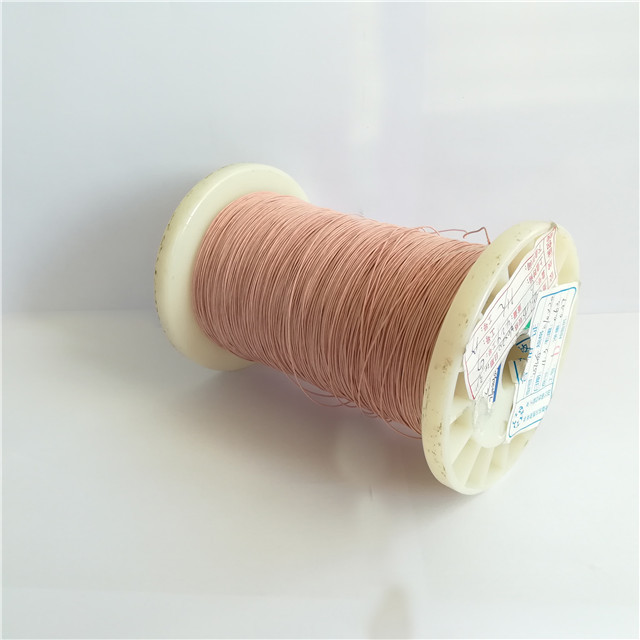

Product Image
