Name: Copper Stranded Litz Wire 0.071mmx1075 Silk Covered Litz Wire For Wireless Charger
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: USTC
Price: 24.06 USD
Availability: InStock

Detail Information

Diameter:	0.071mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	1075	Breakdown Voltage:	Min.950
Cover Material:	Nylon	Product Name:	Copper Stranded Litz Wire 0.071mmx1075 Silk Covered Litz Wire For Wireless Charger
Key Word:	Copper Stranded Litz Wire 0.071mmx1075 Silk Covered Litz Wire For Wireless Charger
Highlight:	Copper stranded Litz wire for wireless charger , Silk covered Litz wire 0.071mmx1075 , Litz wire with silk insulation

Product Description

Copper Stranded Litz Wire 0.071mmx1075 Silk Covered Litz Wire For Wireless Charger

High-quality copper stranded litz wire specifically designed for wireless charger applications, featuring silk covering for optimal performance and durability.

Product Specifications

Single wire diameter: 0.071mm

Number of strands: 1075

Thermal rating: Class 155

Maximum overall dimension: 3.79mm

Minimum Order Quantity: 10KG

Conversion: 1KG = 25M

Construction Details

The single wire is enameled, and after twisting, it's wrapped with nylon yarn on the outside. We also offer polyester yarn alternatives. For high-end audio cable applications, natural silk covering is available.

Technical Specifications

Item No.	Outer diameter of single wire (mm)	Conductor diameter (mm)	Overall dimension (mm)	Resistance (Ω/m)	Breakdown voltage (V)	Pitch
Tech requirement	0.077-0.084	0.071±0.003	Max. 3.79	≤0.004642	≥950	40±10
Sample 1	0.079	0.068	3.18	0.004325	2800	✓
Sample 2	0.081	0.070	3.32	0.044317	2700	✓

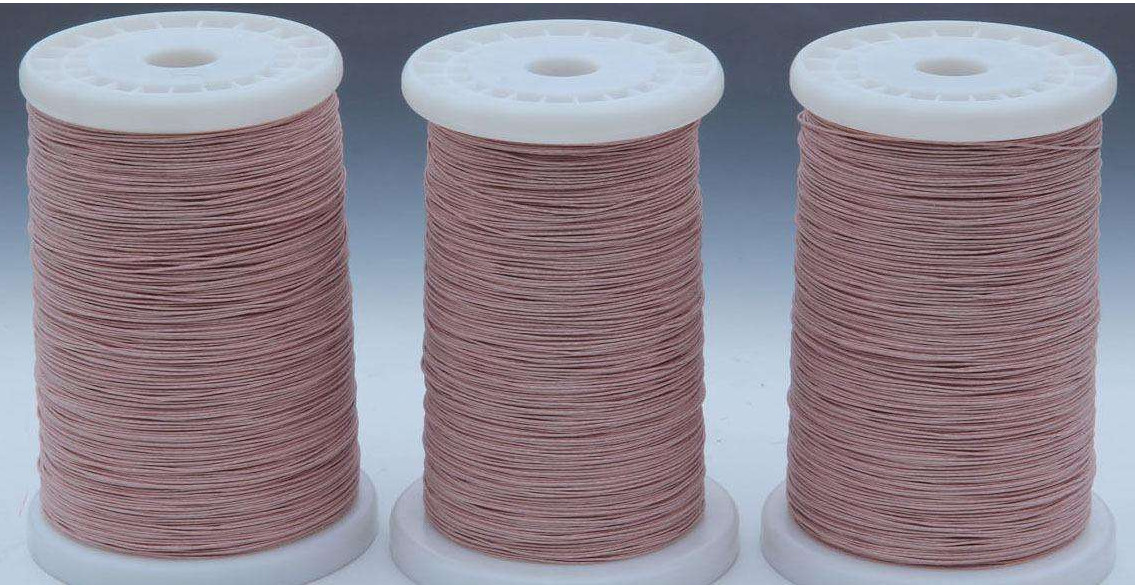

Product Image

Tag:

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand
