Superthin Flat Wire AIW 0.15mm Rectangular Enameled Copper Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Shape:	Rectangular	Conductor Dimension (Width):	2mm
Unilateral Insulation Layer Thickness (Width):	1mm	Applications:	Motor Winding
Thermal Grade:	220	Key Word:	Superthin Flat Wire AIW 0.15mm Rectangular Enameled Copper Wire
Highlight:	Superthin flat enameled copper wire , 0.15mm rectangular copper wire , AIW enameled flat wire

Product Description

Superthin Flat Wire AIW 0.15mm Rectangular Enameled Copper Wire

Applications

Drive Motors: The largest market for enameled flat copper wire, enabling tighter packing in motor stator slots, increasing power density and energy efficiency, and reducing overall motor size and weight.
Electric Power Steering (EPS) Motors: Flat enameled copper wire is used for compact designs and improved efficiency in electric steering systems.
Starter Motors: In traditional and hybrid vehicles, flat enameled copper wire optimizes starter motor performance.
Onboard Transformers and Coils: Used in onboard chargers, DC-DC converters, and sensors, facilitating high integration and miniaturization.

Technical Specifications

Item	Characteristics	Standard	Test Result
1	Appearance	Smooth, Equality	OK
2	Conductor diameter (mm) W T	2.00 ±0.060 0.15 ±0.009	2.002 0.153
3	Thickness of Insulation (mm) W T	0.010 0.030	0.020 0.032
4	Overall diameter (mm) W T	2.100 0.200	2.022 0.185
5	Pinhole (Normal state)	Max ≤ 3 个/m	0
6	Elongation (%)	Min ≥30%	42
7	Flexibility and Adherence	No crack	OK
8	Conductor Resistance (Ω/km, 20℃)	Max 64.03	57.96
9	Breakdown Voltage (AC)	Min 0.7 KV	1.5
10	Heat shock	No crack	OK

Conclusion: (PASS)

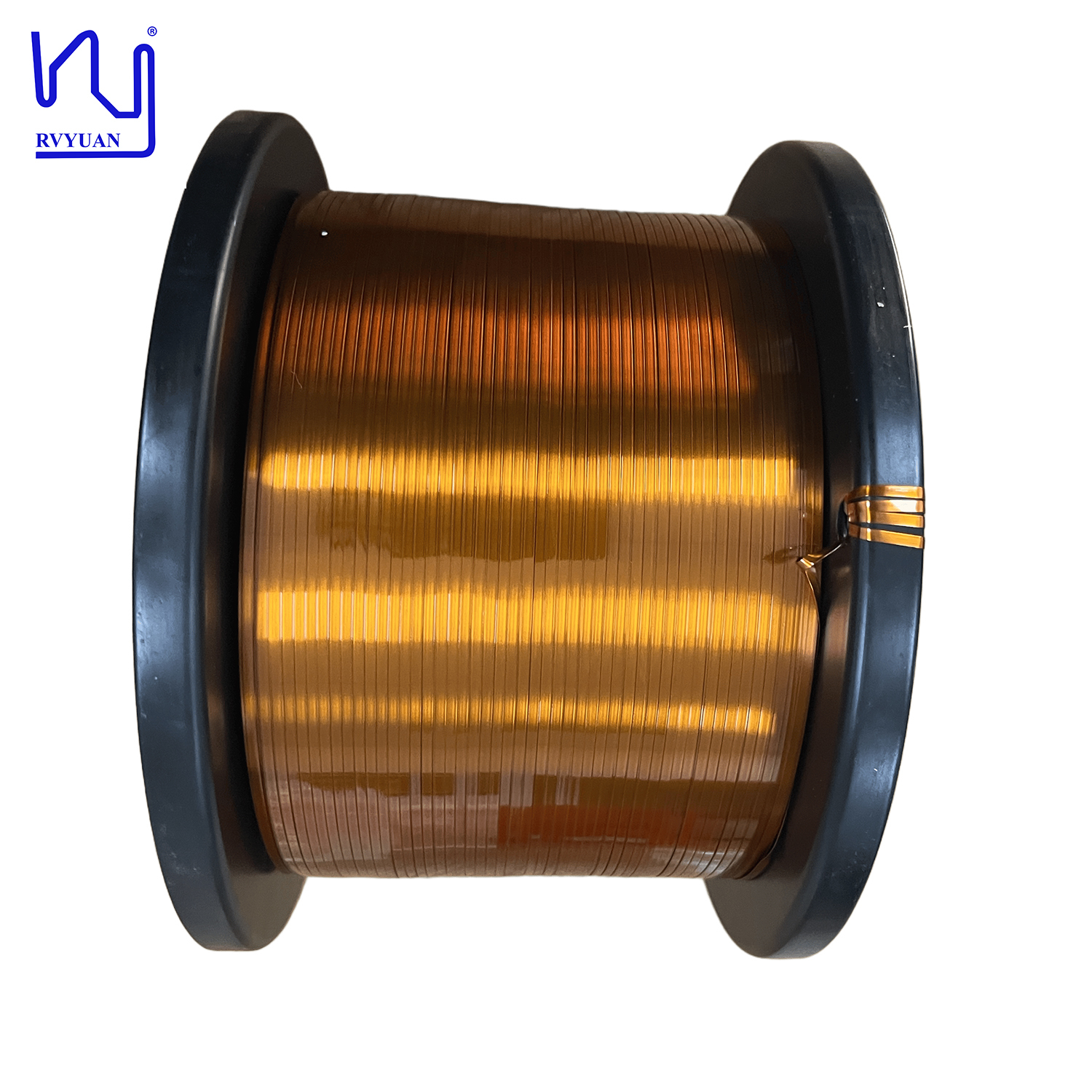

Product Image
