2.0mm High Temperature Flat Copper Wire Enameled Rectangular Copper Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Shape:	Rectangular	Conductor Dimension (Width):	2mm
Unilateral Insulation Layer Thickness (Width):	1mm	Applications:	Motor Winding
Thermal Grade:	220	Key Word:	2.0mm High Temperature Flat Copper Wire Enameled Rectangular Copper Wire
Highlight:	2.0mm high temperature enameled copper wire , flat rectangular copper wire with enamel , high temp rectangular copper wire

Product Description

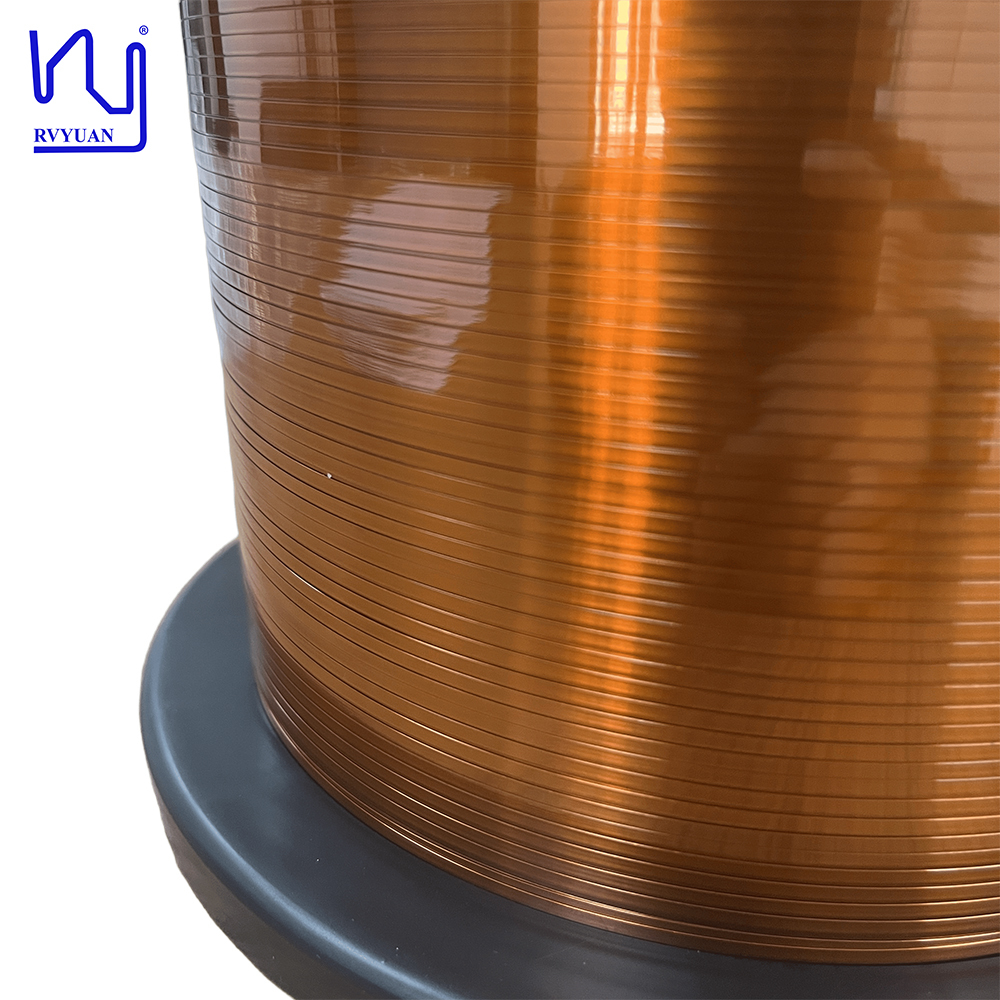

2.0mm High Temperature Flat Copper Wire Enameled Rectangular Copper Wire

This 2.0mm × 0.15mm enameled flat copper wire is specifically designed for automotive applications. The custom rectangular enameled copper wire features a temperature rating of 220°C and is coated with a durable Polyamide-imide enamel insulation.

Customization Options

Available in various sizes and enamel types
Width-to-thickness ratio up to 25:1
Multiple temperature ratings: 180°C (UEW), 200°C (EIW), and 240°C (PIW)

Technical Specifications

Item	Characteristics	Standard	Test Result
1	Appearance	Smooth, Equality	OK
2	Conductor Diameter (mm) W: 2.00 ±0.060 T: 0.15 ±0.009		W: 2.002 T: 0.153
3	Thickness of Insulation (mm) W: 0.010-0.020 T: 0.030-0.032
4	Overall Diameter (mm) W: 2.100-2.022 T: 0.200-0.185
5	Pinhole (Normal state)	Max ≤ 3 pcs/m	0
6	Elongation (%)	Min ≥30%	42
7	Flexibility and Adherence	No crack	OK
8	Conductor Resistance (Ω/km, 20℃)	Max 64.03	57.96
9	Breakdown Voltage (AC)	Min 0.7 KV	1.5
10	Heat Shock	No crack	OK
Conclusion			PASS
