Copper Winding Wire 0.05mm x225 Silk Covered Litz Wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.05mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	225	Breakdown Voltage:	Min.950
Cover Material:	Nylon	Product Name:	Copper Winding Wire 0.05mm X225 Silk Covered Litz Wire For Transformer
Key Word:	Copper Winding Wire 0.05mm X225 Silk Covered Litz Wire For Transformer
Highlight:	0.05mm copper winding wire , silk covered litz wire , transformer litz wire with warranty

Product Description

Copper Winding Wire 0.05mm x225 Silk Covered Litz Wire For Transformer

Product Overview

This silk covered litz wire consists of enameled wire with a diameter of 0.05mm, meticulously twisted together in 225 strands. This intricate design is essential for minimizing AC losses in high-frequency windings, significantly enhancing efficiency.

The primary advantage of using litz wire lies in its ability to mitigate the "skin effect," a phenomenon that affects how alternating current flows through conductors. By employing litz wire, designers can effectively eliminate this effect, leading to improved performance in their applications.

Technical Specifications

Item No.	Wire Diameter (mm)	Conductor Diameter (mm)	Overall Dimension (mm)	Resistance (Ω/m)	Breakdown Voltage (V)	Pitch
Tech Requirement	0.055-0.069	0.05±0.003	Max. 1.42	≤0.04551	≥950	27±3
Sample 1	0.058	0.048	0.98	0.03858	2400	√
Sample 2	0.060	0.050	1.06	0.03819	2500	√

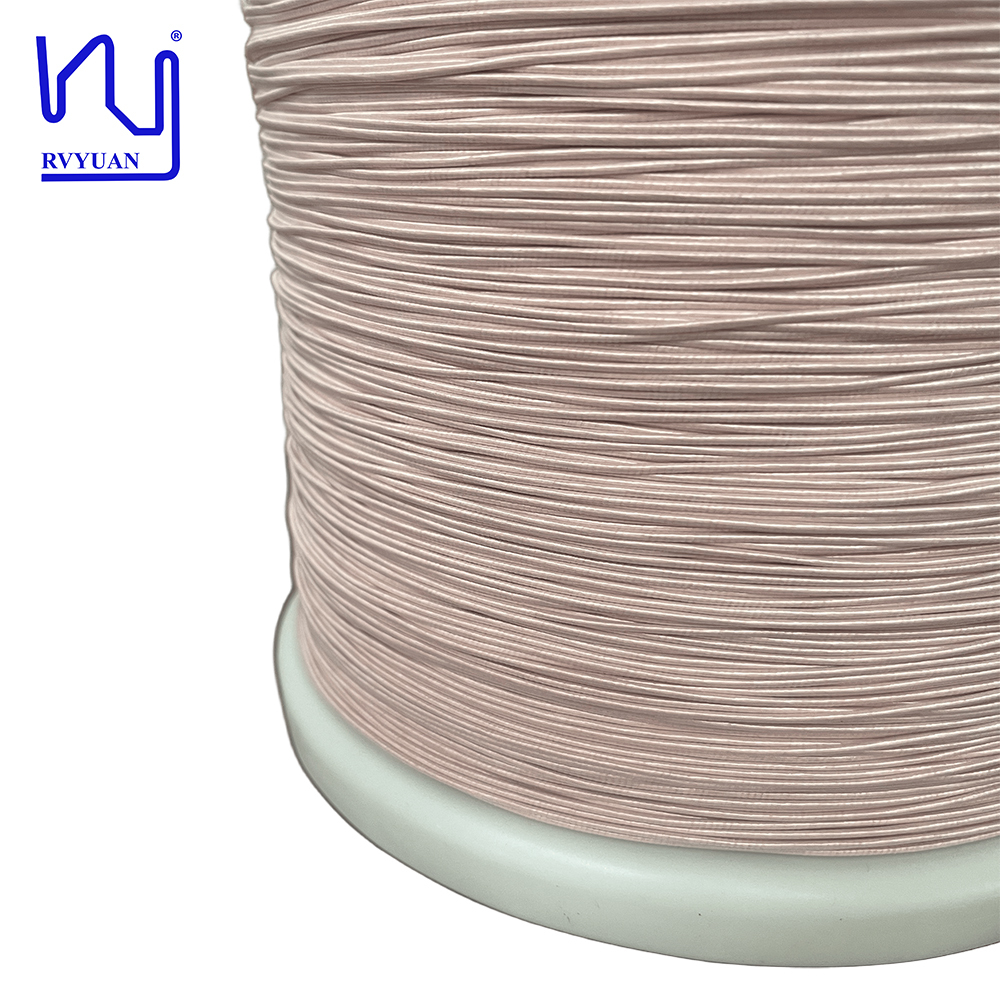

Product Image
