2USTC-F Stranded Wire 0.05mm x225 Strands Silk Covered Litz Wire

Basic Information
Place of Origin: China
Brand Name: RVYUAN
Certification: ISO9001/ISO14001 /UL/SGS
Model Number: USTC
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: T/T/ Paypal
Supply Ability: Satisfy your demand
Detail Information
Diameter: 0.05mm Temperature: 155
Certification: IEC/NEMA/JIS/RoHS/ISO Conductor: Copper
Strands: 225 Breakdown Voltage: Min.950
Cover Material: Nylon Product Name: 2USTC-F Stranded Wire 0.05mm X225 Strands Silk Covered Litz Wire
Key Word: 2USTC-F Stranded Wire 0.05mm X225 Strands Silk Covered Litz Wire
Highlight:

silk covered litz wire

,

0.05mm stranded litz wire

,

225 strands ustc litz wire


Product Description

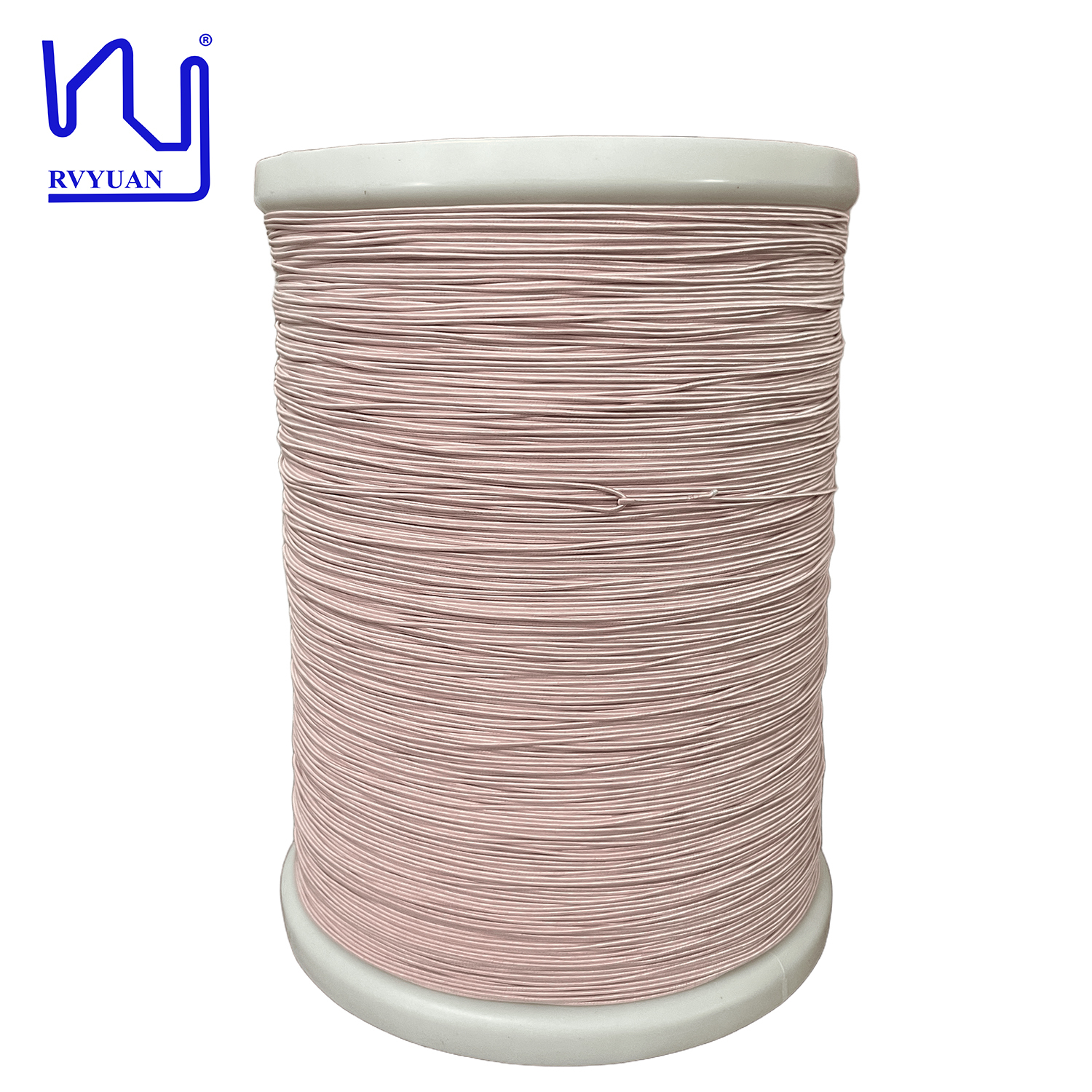

2USTC-F Stranded Wire 0.05mm x225 Strands Silk Covered Litz Wire

Silk covered litz wire is a specialized wire designed for high-performance applications in transformer winding, wireless charge winding, audio cable manufacturing, and more. This custom silk covered litz wire was developed for an Indian client specifically for transformer winding applications.

This litz wire features a nylon yarn outer wrapping, with alternative materials such as polyester yarn available for clients with different material preferences. We also offer exquisite natural silk coverings for high-end audio cable applications, with inner conductors typically made from high-purity copper or silver.

Technical Specifications
Item No. Wire Diameter (mm) Conductor Diameter (mm) Overall Dimension (mm) Resistance (Ω/m) Breakdown Voltage (V) Pitch
Tech Requirement 0.055-0.069 0.05±0.003 Max. 1.42 ≤0.04551 ≥950 27±3
Sample 1 0.058 0.048 0.98 0.03858 2400
Sample 2 0.060 0.050 1.06 0.03819 2500
2USTC-F Stranded Wire 0.05mm x225 Strands Silk Covered Litz Wire 0
