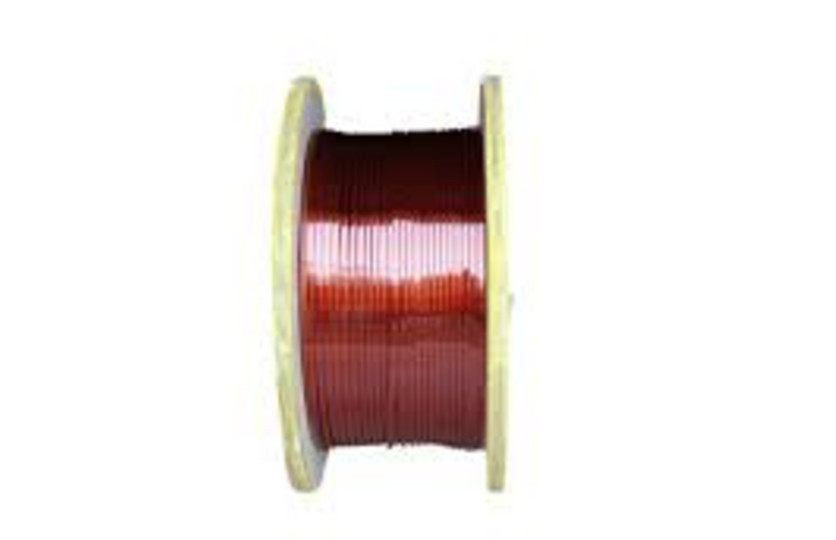

AIW Enameled Flat Copper Wire 4mm 5mm big size Rectangular Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Shape:	Rectangular	Conductor Dimension (Width):	2mm
Unilateral Insulation Layer Thickness (Width):	1mm	Applications:	Motor Winding
Thermal Grade:	220	Key Word:	AIW Enameled Flat Copper Wire 4mm 5mm Big Size Rectangular Wire
Highlight:	enameled flat copper wire 4mm , 5mm rectangular copper wire , big size enameled copper wire

Product Description

AIW Enameled Flat Copper Wire 4mm 5mm Big Size Rectangular Wire

The enameled layer in enameled wire plays several important roles:

Insulation Protection: Provides excellent electrical insulation, preventing short circuits between conductors.
Heat Resistance: Maintains insulation performance in high-temperature environments, suitable for motors and transformers.
Corrosion Resistance: Protects the copper wire from oxidation and corrosion, extending lifespan.
Mechanical Protection: Prevents physical damage and wear to the copper wire.
Reduced Electromagnetic Interference: Improves performance and stability of electrical equipment.
Improved Coil Compactness: Allows more coils in limited space, increasing power density.
Easy Processing: Enameled layer can be removed for convenient connection and use.

Technical Specifications

TEST REPORT
Model	SFT-AIW
Date	2024-1-8
Size(mm)	0.100 × 2.000
Lot	_/_

Item	Conductor Dimension		Unilateral Insulation Layer Thickness		Overall Dimension		Dielectric Breakdown Voltage (kv)	Pinhole (Pcs/m)	Conductor Resistance (Ω/km 20℃)	Elongation (%)	Appearance	Flexibility	Adherence	Thermal Shock
Item	Thickness (mm)	Width (mm)	Thickness (mm)	Width (mm)	Thickness (mm)	Width (mm)	Dielectric Breakdown Voltage (kv)	Pinhole (Pcs/m)	Conductor Resistance (Ω/km 20℃)	Elongation (%)	Appearance	Flexibility	Adherence	Thermal Shock
SPEC	Mid.	0.100	2.000	0.025	0.025
Max	0.109	2.060	0.040	0.040	0.150	2.100		3	93.240
Min	0.091	1.940	0.010	0.010			0.700			30
No. 1	0.104	1.992	0.020	0.013	0.144	2.018	2.680	0	85.634	46	No to be scratched No dirt	Good	Good	Good
Result	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK
