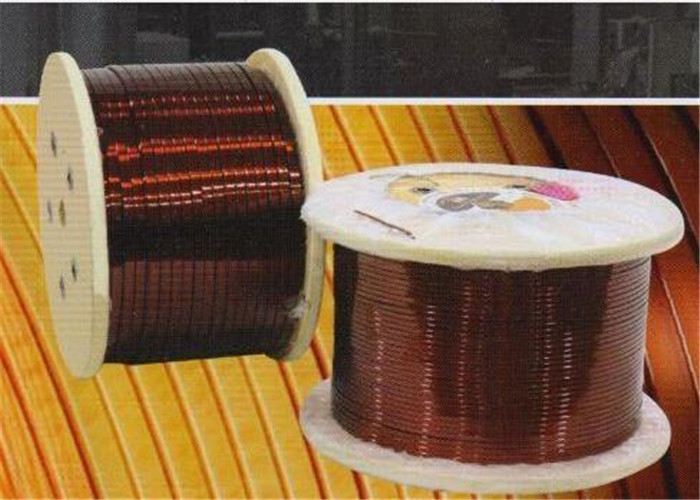

Name: AIW Enameled Flat Copper Wire 2.0mm 3mm 4mm Rectangular Wire
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Class 220
Price: 24.06 USD
Availability: InStock

Detail Information

Shape:	Rectangular	Conductor Dimension (Width):	2mm
Unilateral Insulation Layer Thickness (Width):	1mm	Applications:	Motor Winding
Thermal Grade:	220	Key Word:	AIW Enameled Flat Copper Wire 2.0mm 3mm 4mm Rectangular Wire
Highlight:	enameled flat copper wire 2.0mm , rectangular copper wire 4mm , AIW enameled rectangular wire

Product Description

AIW Enameled Flat Copper Wire 2.0mm 3mm 4mm Rectangular Wire

Rectangular enameled copper wire is widely used in many fields due to its excellent electrical conductivity, heat resistance, and mechanical strength.

Applications

Motors and Generators: Commonly used in windings to improve motor efficiency and power density.
Transformer: Effectively reduces losses and improves transformer performance.
Frequency Inverter: Used for high-frequency current conduction to improve operating efficiency.
Inductor: Provides higher inductance and better heat dissipation in windings.
Audio Equipment: Used in speaker coils to improve sound quality in high-fidelity audio equipment.
Power Electronic Equipment: Used for current conduction and thermal management.
Home Appliances: Used in motors and heating elements.
High-Frequency Applications: Used in high-frequency signal transmission due to excellent electrical properties.

Technical Specifications

Model	SFT-AIW	Date	2024-1-8
Size(mm)	0.100 × 2.000	Lot	_/_

Item	Conductor dimension		Unilateral insulation layer thickness		Overall dimension		Dielectric breakdown voltage	Pinhole	Conductor resistance	Elongation	Appearance	Flexibility	Adherence	Thermal shock
Item	Thickness	Width	Thickness	Width	Thickness	Width	Dielectric breakdown voltage	Pinhole	Conductor resistance	Elongation	Appearance	Flexibility	Adherence	Thermal shock
Unit	mm	mm	mm	mm	mm	mm	kv	Pcs/m	Ω/km 20℃	%	No to be scratched No dirt	No crack	No crack	No crack
SPEC	Mid.	0.100	2.000	0.025	0.025
Max	0.109	2.060	0.040	0.040	0.150	2.100		3	93.240
Min	0.091	1.940	0.010	0.010			0.700			30
No. 1	0.104	1.992	0.020	0.013	0.144	2.018	2.680	0	85.634	46	No to be scratched No dirt	Good	Good	Good
No. 2							1.968
No. 3							2.250
No. 4							2.458
No. 5							1.976
Ave	0.104	1.992	0.020	0.013	0.144	2.018	2.266
Result	OK

Tag:

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T
Supply Ability:	Satisfy your demand
