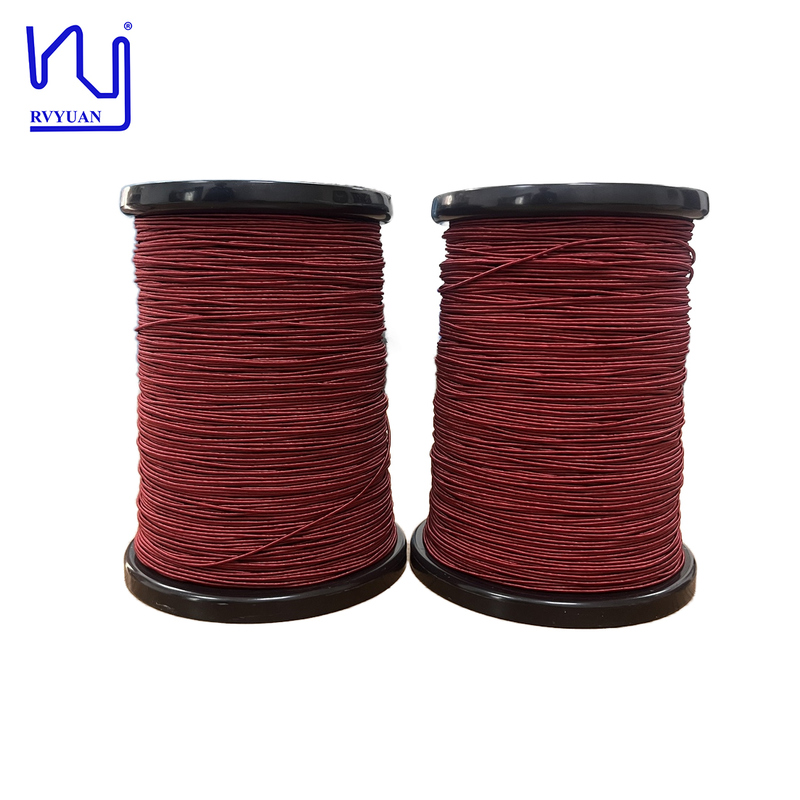

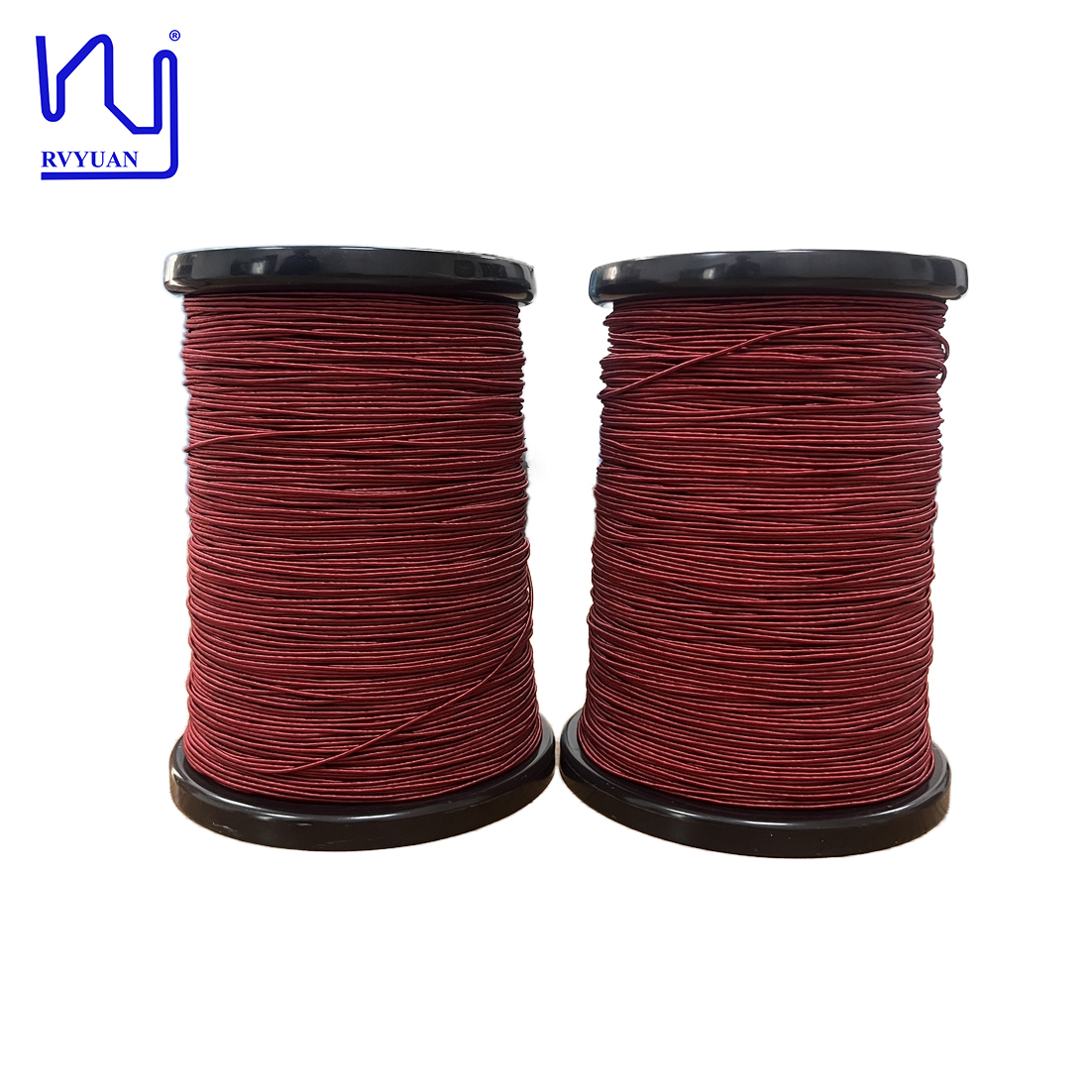

0.08 Dia Enameled Copper wire Wire Silk covered Litz Wire 270 strands Copper Conductor Solid

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.08mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	270	Breakdown Voltage:	Min.1100
Cover Material:	Nylon	Product Name:	0.08 Dia Enameled Copper Wire Wire Silk Covered Litz Wire 270 Strands Copper Conductor Solid
Key Word:	0.08 Dia Enameled Copper Wire Wire Silk Covered Litz Wire 270 Strands Copper Conductor Solid
Highlight:	enameled copper wire 270 strands , silk covered litz wire , solid copper conductor wire

Product Description

0.08 Dia Enameled Copper Wire Silk Covered Litz Wire 270 Strands Copper Conductor Solid

The nylon outer layer provides enhanced mechanical protection, effectively protecting individual enameled wires from external damage such as abrasion, bending, and stretching, making the wire exceptionally robust and durable for harsh applications.

Furthermore, the nylon layer prevents damage, ensuring long-term stable and reliable performance. During winding, the nylon layer also acts as a protective buffer, minimizing the risk of scratching or damaging the delicate enameled wire. Additionally, the nylon layer helps maintain a stable diameter in the finished Litz wire, which is crucial for applications requiring precise dimensions.

Product Specifications

Item No.	Our diameter of single wire mm	Conductor diameter mm	Overall dimension mm	Resistance Ω /m	Breakdown voltage V	Pitch
Tech requirement	0.087-0.095	0.08±0.003	Max.2.04	≤0.01398	≥1100	29±5
Sample 1	0.89-0.091	0.078-0.08	1.7-1.82	0.01282	2700	√
