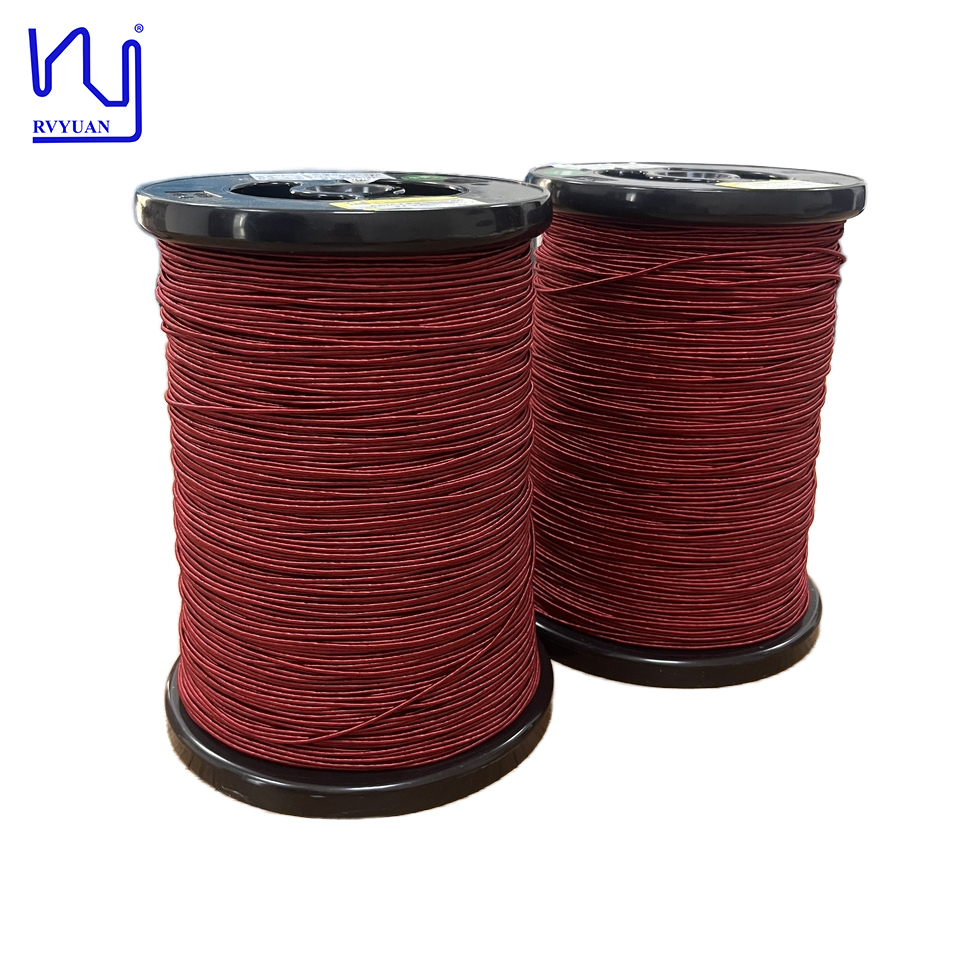

USTC Class 155 0.08mm*270 Insulated Silk Covered Copper Litz Wire 1100V Rated Voltage

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.08mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	270	Breakdown Voltage:	Min.1100
Cover Material:	Nylon	Product Name:	USTC Class 155 0.08mm*270 Insulated Silk Covered Copper Litz Wire 1100V Rated Voltage
Key Word:	USTC Class 155 0.08mm*270 Insulated Silk Covered Copper Litz Wire 1100V Rated Voltage
Highlight:	USTC Class 155 Litz wire , 0.08mm insulated silk copper wire , 1100V rated voltage Litz wire

Product Description

USTC Class 155 0.08mm*270 Insulated Silk Covered Copper Litz Wire 1100V Rated Voltage

USTC Class 155 0.08mm*270 Insulated Silk Covered Copper Litz Wire with 1100V Rated Voltage. Custom color services are also available, typically using white polyester or nylon yarn.

The nylon layer plays a crucial role in providing mechanical protection, enhancing the wire's abrasion and tear resistance. This outer layer not only improves the wire's durability and extends its service life but also stabilizes the overall diameter of the wire, preventing damage during winding.

Product Specifications

Item No.	Our diameter of single wire mm	Conductor diameter mm	Overall dimension mm	Resistance Ω/m	Breakdown voltage V	Pitch
Tech requirement	0.087-0.095	0.08±0.003	Max.2.04	≤0.01398	≥1100	29±5
Sample 1	0.89-0.091	0.078-0.08	1.7-1.82	0.01282	2700	√
