2USTC-F 0.08mmx270 Red Color Nylon Served Silk Covered Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.08mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	270	Breakdown Voltage:	Min.1100
Cover Material:	Nylon	Product Name:	2USTC-F 0.08mmx270 Red Color Nylon Served Silk Covered Litz Wire
Key Word:	2USTC-F 0.08mmx270 Red Color Nylon Served Silk Covered Litz Wire
Highlight:	red nylon served litz wire , 0.08mm silk covered wire , ustc-f litz wire

Product Description

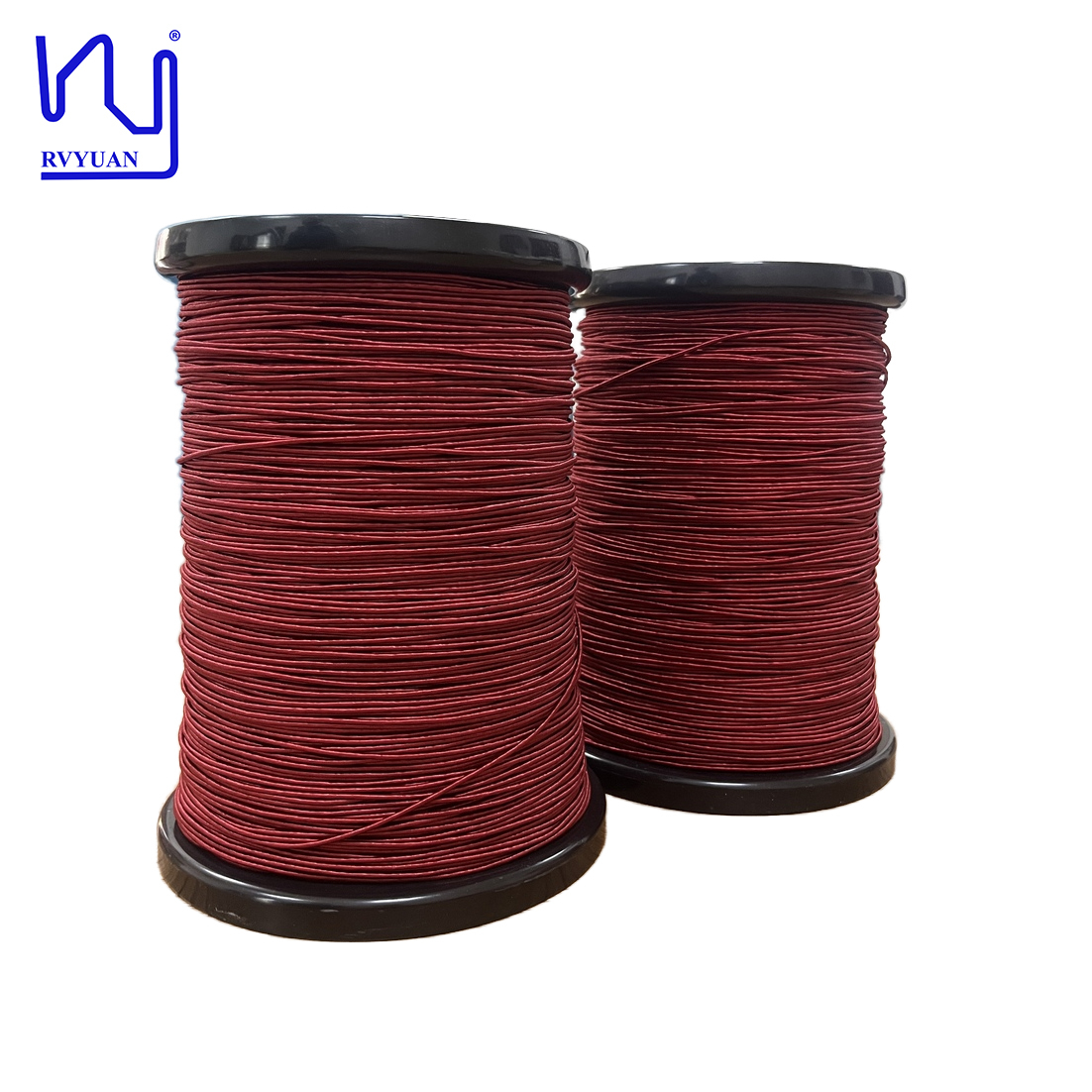

2USTC-F 0.08mmx270 Red Color Nylon Served Silk Covered Litz Wire

Silk covered Litz wire is a custom-designed Litz wire with a single strand diameter of 0.08 mm. The wire is composed of 270 strands of enameled insulated wire twisted together, with an outer layer of bright red polyester yarn. Custom color services are also available, typically using white polyester or nylon yarn.

Product Specifications

Item No.	Our diameter of single wire mm	Conductor diameter mm	Overall dimension mm	Resistance Ω /m	Breakdown voltage V	Pitch
Tech requirement	0.087-0.095	0.08±0.003	Max.2.04	≤0.01398	≥1100	29±5
Sample 1	0.89-0.091	0.078-0.08	1.7-1.82	0.01282	2700	√
