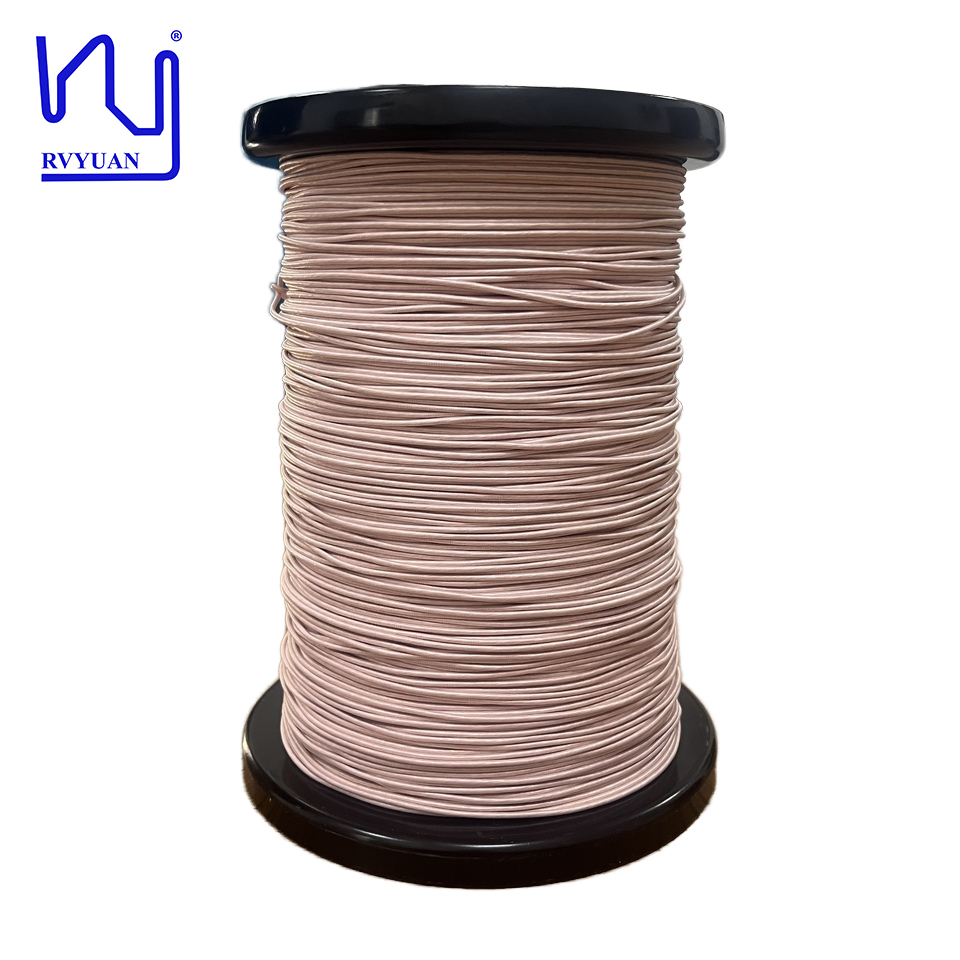

High Frequency 0.05mm-0.1mm Enameled Magnet Wire Silk Covered Copper Litz Wire Solid Conductor

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.08mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	210	Breakdown Voltage:	Min.1100
Cover Material:	Nylon	Product Name:	High Frequency 0.05mm-0.1mm Enameled Magnet Wire Silk Covered Copper Litz Wire Solid Conductor
Key Word:	High Frequency 0.05mm-0.1mm Enameled Magnet Wire Silk Covered Copper Litz Wire Solid Conductor
Highlight:	enameled magnet wire silk covered , high frequency litz wire , solid conductor copper wire

Product Description

High Frequency 0.05mm-0.1mm Enameled Magnet Wire Silk Covered Copper Litz Wire Solid Conductor

We manufacture high-frequency litz wire, including silk covered litz wire, taped litz wire, and flat litz wire. We support customization and can produce litz wire exactly to your specifications, whether it's the individual conductor size, strands or cover. Our professional technical team is always ready to provide you with technical support.

Product Specifications

Item No.	Our diameter of single wire mm	Conductor diameter mm	Overall dimension mm	Resistance Ω /m	Breakdown voltage V	Pitch	No.Of strands
Tech requirement	0.087-0.103	0.08±0.003	Max.1.81	≤0.01780	≥1100	29±5	210
Sample 1	0.09-0.093	0.078-0.08	1.53-1.66	0.01635	3000	√	√
