USTC 155 0.08mm*210Solid Polyester Enameled Copper Stranded Wire Bare Silk Covered Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.08mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	210	Breakdown Voltage:	Min.1100
Cover Material:	Nylon	Product Name:	USTC 155 0.08mm*210Solid Polyester Enameled Copper Stranded Wire Bare Silk Covered Litz Wire
Key Word:	USTC 155 0.08mm*210Solid Polyester Enameled Copper Stranded Wire Bare Silk Covered Litz Wire
Highlight:	0.08mm polyester enameled copper wire , 210 solid stranded litz wire , bare silk covered polyester wire

Product Description

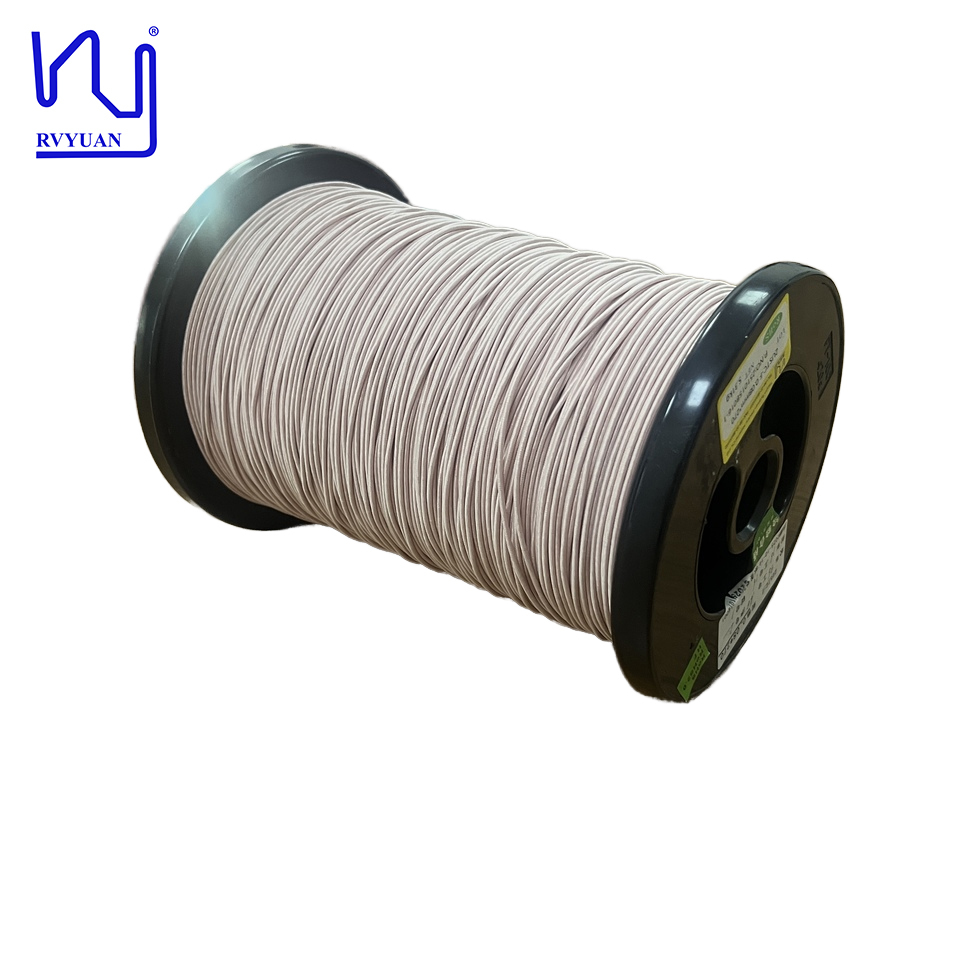

USTC 155 0.08mm*210Solid Polyester Enameled Copper Stranded Wire Bare Silk Covered Litz Wire

This silk-covered Litz wire is made of 210 strands of enameled copper wire twisted together to form a strong yet flexible wire cable. This unique design significantly reduces the skin effect and proximity effect common in high-frequency applications. Therefore, the wire improves efficiency and minimizes power loss, making it ideal for high-frequency transformers, wireless chargers, and RF inductors.

Product Specifications

Item No.	Our diameter of single wire mm	Conductor diameter mm	Overall dimension mm	Resistance Ω/m	Breakdown voltage V	Pitch	No.Of strands
Tech requirement	0.087-0.103	0.08±0.003	Max.1.81	≤0.01780	≥1100	29±5	210
Sample 1	0.09-0.093	0.078-0.08	1.53-1.66	0.01635	3000	√	√
