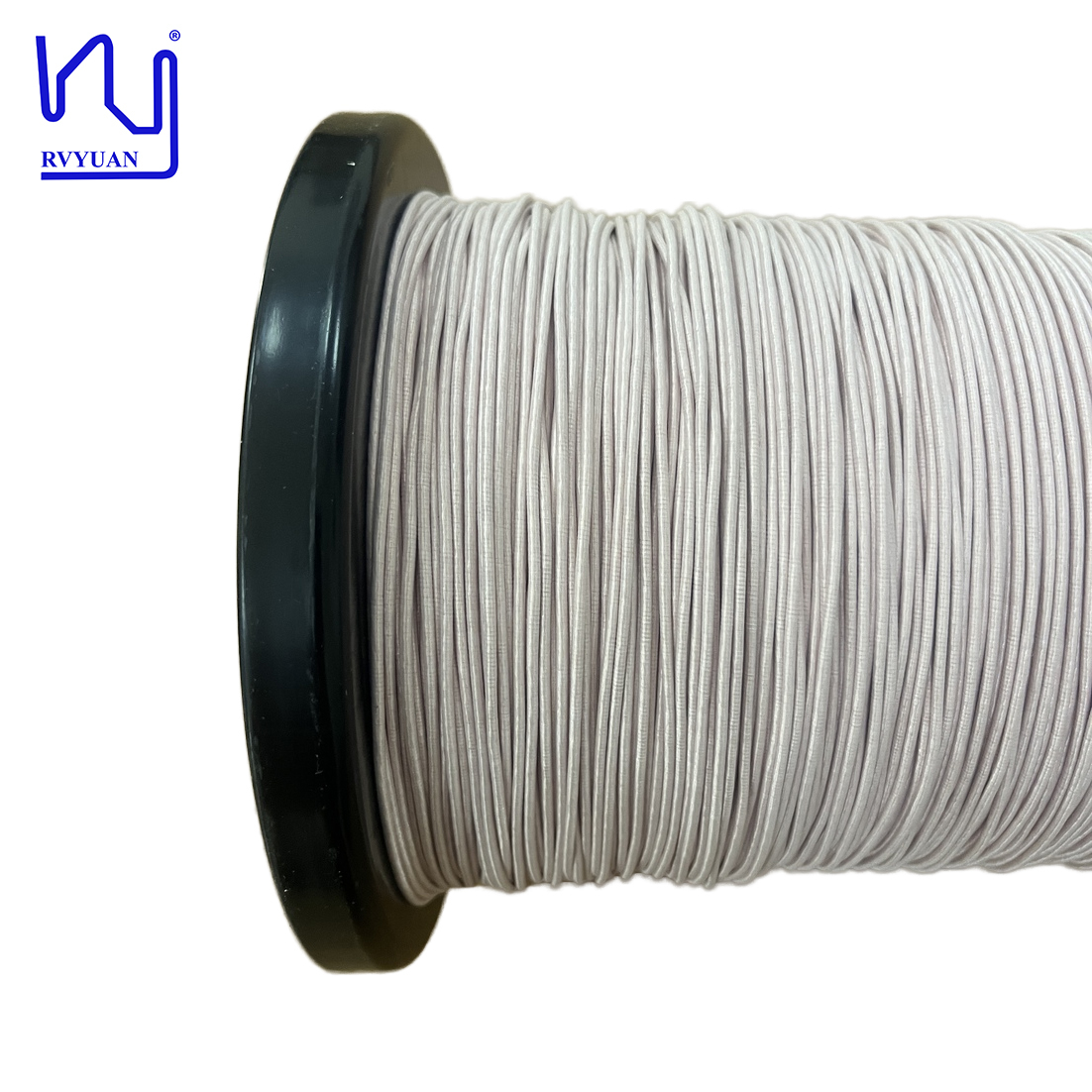

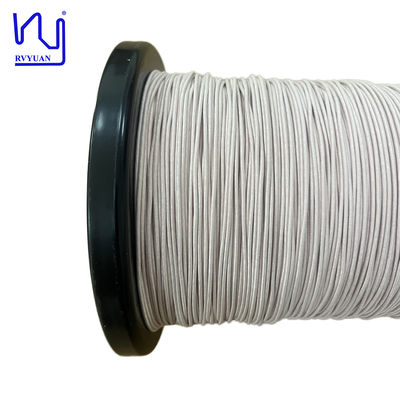

2USTC-F 0.08mmx210 Silk Covered Litz Wire For Wireless Charger Coils

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.08mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	210	Breakdown Voltage:	Min.1100
Cover Material:	Nylon	Product Name:	2USTC-F 0.08mmx210 Silk Covered Litz Wire For Wireless Charger Coils
Key Word:	2USTC-F 0.08mmx210 Silk Covered Litz Wire For Wireless Charger Coils
Highlight:	silk covered litz wire for wireless charger , 0.08mm litz wire for coils , 210 silk litz wire with warranty

Product Description

2USTC-F 0.08mmx210 Silk Covered Litz Wire For Wireless Charger Coils

Silk covered Litz wire is a type of wire designed specifically for high-frequency applications, excelling in a wide range of electronic devices. This custom-designed wire has a single strand diameter of 0.08 mm and is made of polyurethane-coated enameled copper wire, allowing for direct soldering. It has temperature ratings of 155°C and 180°C, enabling it to withstand harsh operating environments.

Item No.	Our diameter of single wire mm	Conductor diameter mm	Overall dimension mm	Resistance Ω /m	Breakdown voltage V	Pitch	No.Of strands
Tech requirement	0.087-0.103	0.08±0.003	Max.1.81	≤0.01780	≥1100	29±5	210
Sample 1	0.09-0.093	0.078-0.08	1.53-1.66	0.01635	3000	√	√
