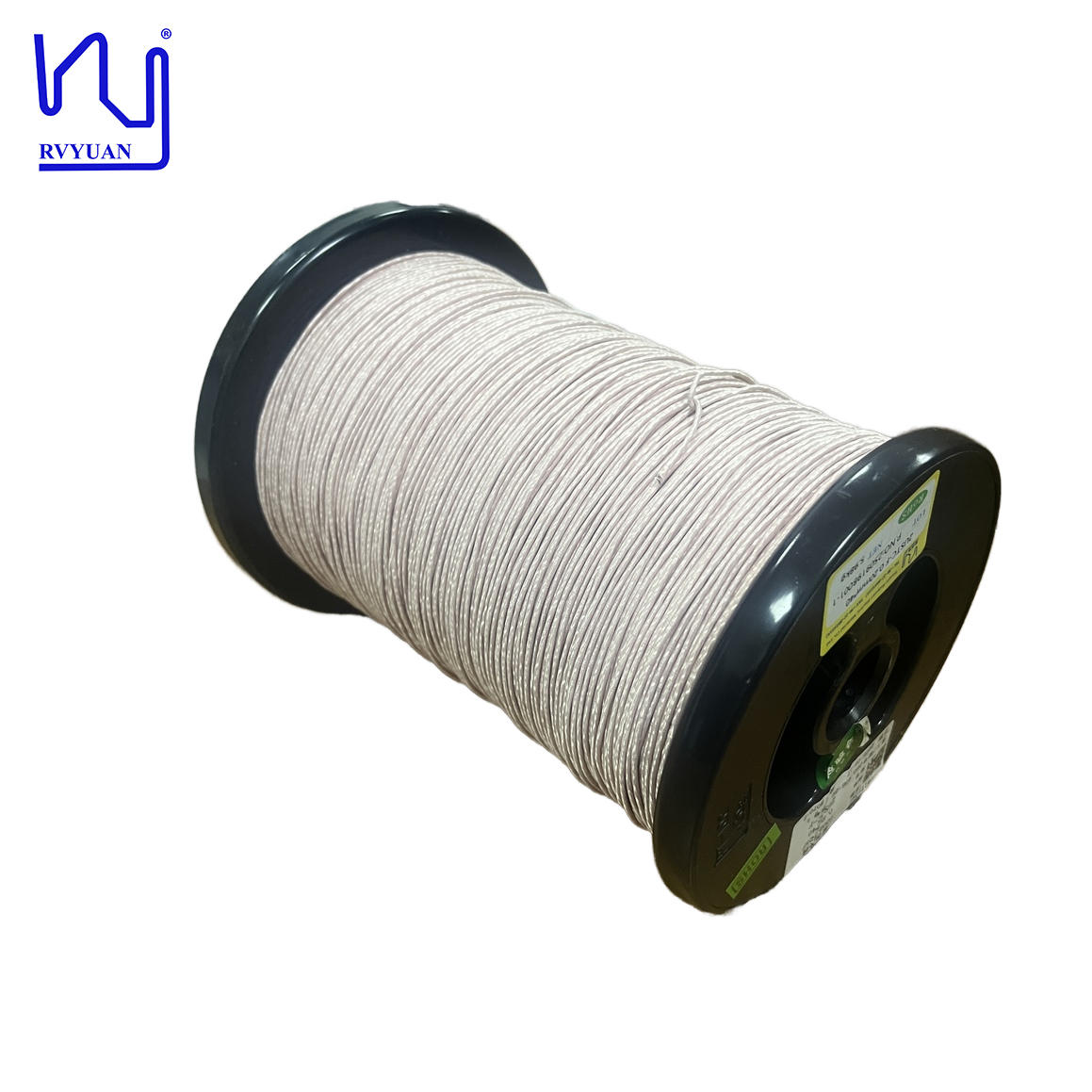

44/0.2mm Class 155/180 Solid Silk Covered Litz Wire Round Type

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.2mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	40	Breakdown Voltage:	Min.1600
Cover Material:	Nylon	Product Name:	44/0.2mm Class 155/180 Solid Silk Covered Litz Wire Round Type
Key Word:	44/0.2mm Class 155/180 Solid Silk Covered Litz Wire Round Type
Highlight:	solid silk covered litz wire , 0.2mm litz wire round type , class 155/180 litz wire

Product Description

44/0.2mm Class 155/180 Solid Silk Covered Litz Wire Round Type

44/0.2mm Class 155/180 Solid Silk Covered Litz Wire Round Type is made of enameled wire and Dacron, which can increase the insulation strength, decrease the layer capacitance, and increase the Q value. Twisted USTC wires have features equivalent to the ones of Twisted enameled wires.

Applications

Wireless inductance
High power illumination system
Electroacoustic equipment
Ultrasonic equipment
High frequency induction and transformer
Data cable
Ear phone cable

Product Specifications

Item	Technical requests	Test value 1	Test value 2
Single Diameter (mm)	0.216-0.231	0.219	0.223
Conductor diameter (mm)	0.2± 0.003	0.198	0.2
O.D. (mm)	Max.1.8	1.57	1.70
Resistance Ω/m (20℃)	Max. 0.01443	0.01357	0.01335
Breakdown Voltage V	1600	3800	3600
Pitch mm	33 ±7	√	√
No. of strands	40	√	√

Please send inquiries directly to request more information or quote!
