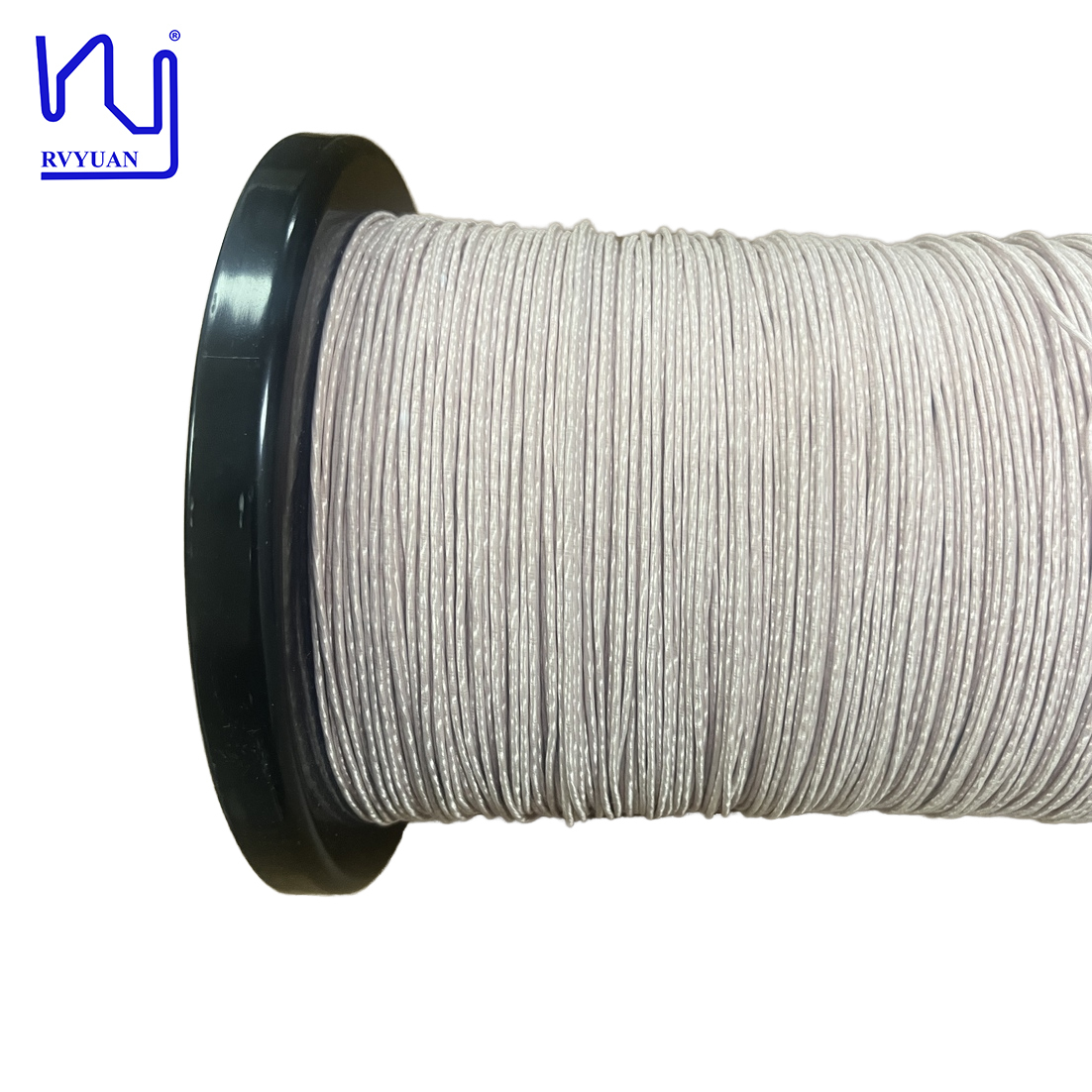

USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.2mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	40	Breakdown Voltage:	Min.1600
Cover Material:	Nylon	Product Name:	USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V
Key Word:	USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V
Highlight:	0.2mm insulated silk litz wire , 40 strand silk covered copper wire , 3500V high voltage litz wire

Product Description

USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V

This type of silk covered Litz wire has a wide range of applications, including transformer windings, voice coil wiring, and electric vehicle charging stations. We understand that every project is unique, so we offer customization services. You can specify your exact requirements for conductor specifications, number of strands, stranding method, resistance, and outer diameter. Our professional team is dedicated to helping you design silk-covered Litz wire that perfectly matches your system needs.

Product Specifications

Item	Technical requests	Test value 1	Test value 2
Single Diameter (mm)	0.216-0.231	0.219	0.223
Conductor diameter (mm)	0.2± 0.003	0.198	0.2
O.D. (mm)	Max.1.8	1.57	1.70
Resistance Ω/m (20℃)	Max. 0.01443	0.01357	0.01335
Breakdown Voltage V	1600	3800	3600
Pitch mm	33 ±7	√	√
No. of strands	40	√	√

Please send inquiries directly to request more information or quote!
