| Place of Origin: | China |
|---|---|
| Brand Name: | RVYUAN |
| Certification: | ISO9001/ISO14001 /UL/SGS |
| Model Number: | USTC |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | T/T/ Paypal |
| Supply Ability: | Satisfy your demand |
| Diameter: | 0.2mm | Temperature: | 155 |
|---|---|---|---|
| Certification: | IEC/NEMA/JIS/RoHS/ISO | Conductor: | Copper |
| Strands: | 40 | Breakdown Voltage: | Min.1600 |
| Cover Material: | Nylon | Product Name: | 2USTC 0.2mm Nylon Covered Litz Wire 150 Strands Copper Wire |
| Key Word: | 2USTC 0.2mm Nylon Covered Litz Wire 150 Strands Copper Wire | ||
| Highlight: | 0.2mm nylon litz wire,150 strands copper litz wire,ustc nylon covered wire | ||

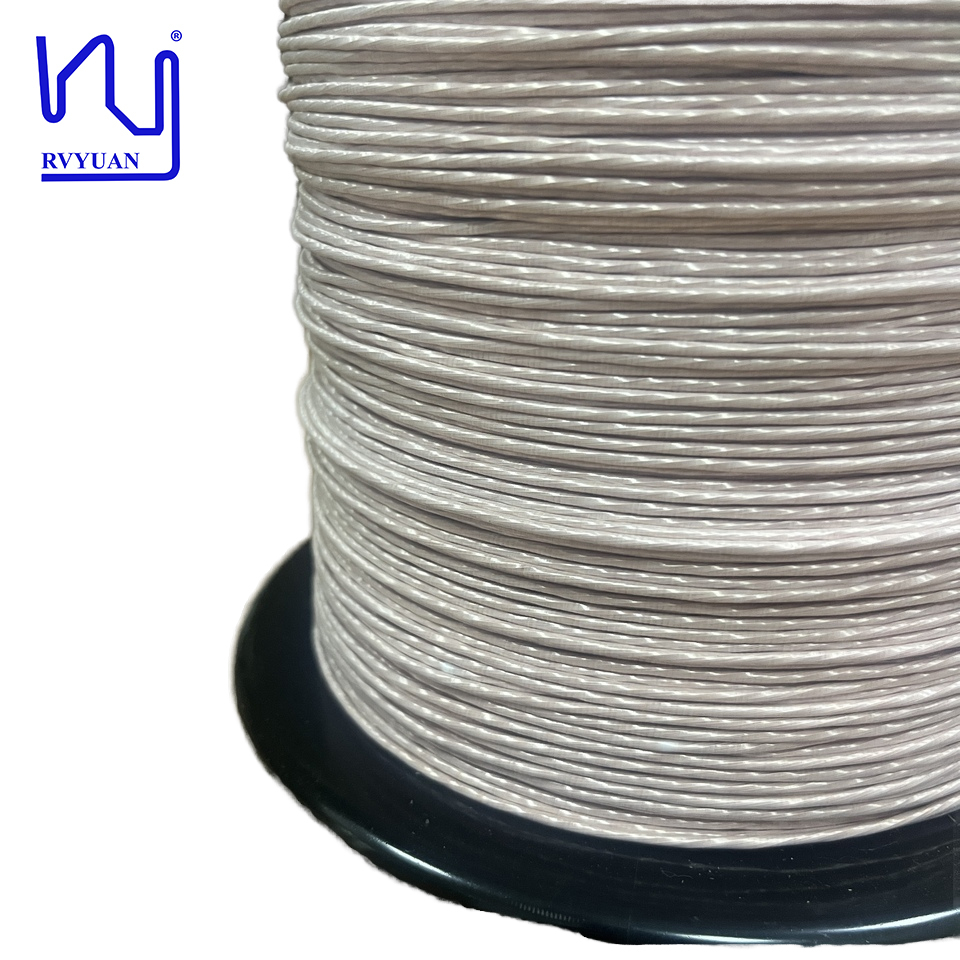

This superior nylon served litz wire features 0.2mm single enameled wire coated with a durable polyurethane, ensuring excellent solderability. You can use it with confidence; soldering will be seamless, making it a reliable choice for a wide range of projects. The litz wire is composed of 40 strands, combining exceptional flexibility and performance.
The outer layer is wrapped in high-quality nylon, which not only enhances durability but also gives it a stylish look. If you prefer other materials, we also offer polyester and silk wrapping options, allowing you to choose the most suitable material according to your needs.
| Item | Technical requests | Test value 1 | Test value 2 |
|---|---|---|---|
| Single Diameter (mm) | 0.216-0.231 | 0.219 | 0.223 |
| Conductor diameter (mm) | 0.2± 0.003 | 0.198 | 0.2 |
| O.D. (mm) | Max.1.8 | 1.57 | 1.70 |
| Resistance Ω/m (20℃) | Max. 0.01443 | 0.01357 | 0.01335 |
| Breakdown Voltage V | 1600 | 3800 | 3600 |
| Pitch mm | 33 ±7 | √ | √ |
| No. of strands | 40 | √ | √ |
