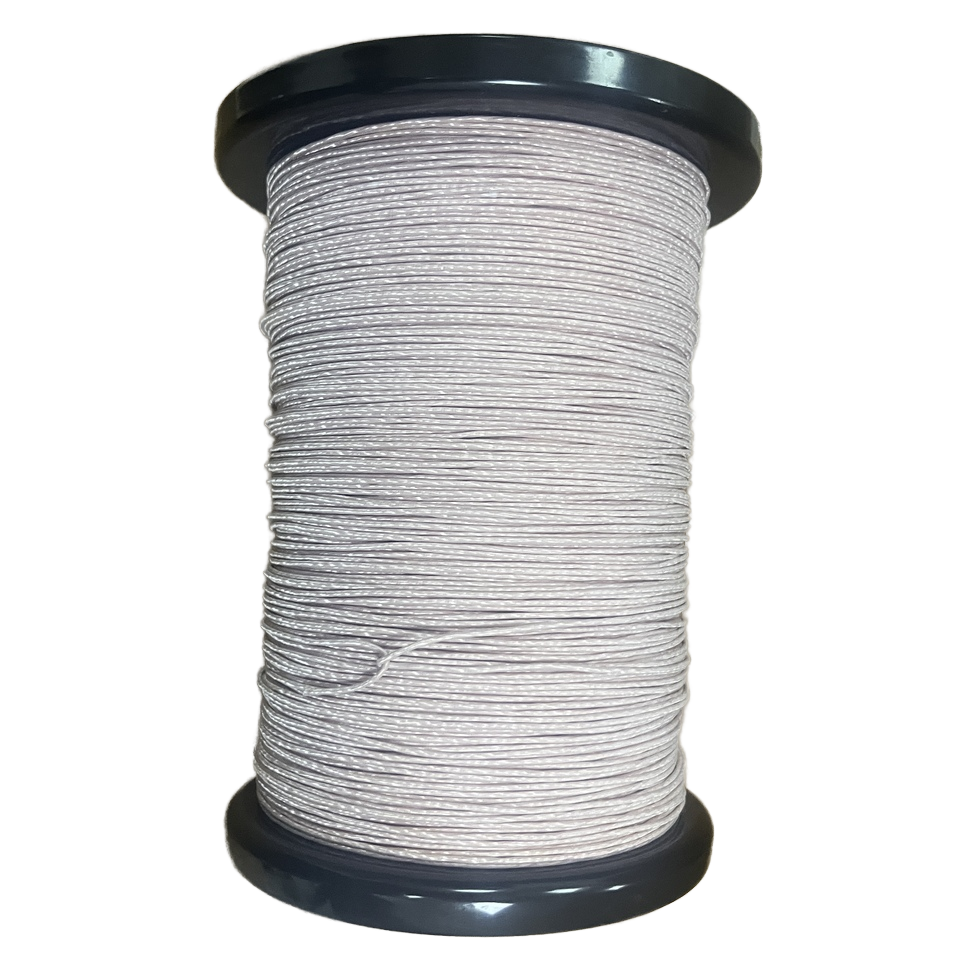

Customizable UEW 0.2mm * 40 Strands Twisted Enameled Copper Silk Covered Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.2mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	40	Breakdown Voltage:	Min.1600
Cover Material:	Nylon	Product Name:	Customizable UEW 0.2mm * 40 Strands Twisted Enameled Copper Silk Covered Litz Wire
Key Word:	Customizable UEW 0.2mm * 40 Strands Twisted Enameled Copper Silk Covered Litz Wire
Highlight:	customizable enameled copper litz wire , 40 strands twisted litz wire , 0.2mm silk covered litz wire

Product Description

Customizable UEW 0.2mm * 40 Strands Twisted Enameled Copper Silk Covered Litz Wire

This superior conductor features 0.2mm single-strand enameled wire coated with a durable polyurethane layer, ensuring excellent solderability. You can use it with confidence; soldering will be seamless, making it a reliable choice for a wide range of projects. The conductor is composed of 40 strands, combining exceptional flexibility and performance.

Product Specifications

Item	Technical requests	Test value 1	Test value 2
Single Diameter (mm)	0.216-0.231	0.219	0.223
Conductor diameter (mm)	0.2± 0.003	0.198	0.2
O.D. (mm)	Max.1.8	1.57	1.70
Resistance Ω/m (20℃)	Max. 0.01443	0.01357	0.01335
Breakdown Voltage V	1600	3800	3600
Pitch mm	33 ±7	√	√
No. of strands	40	√	√

Please send inquiries directly to request more information or quote!
