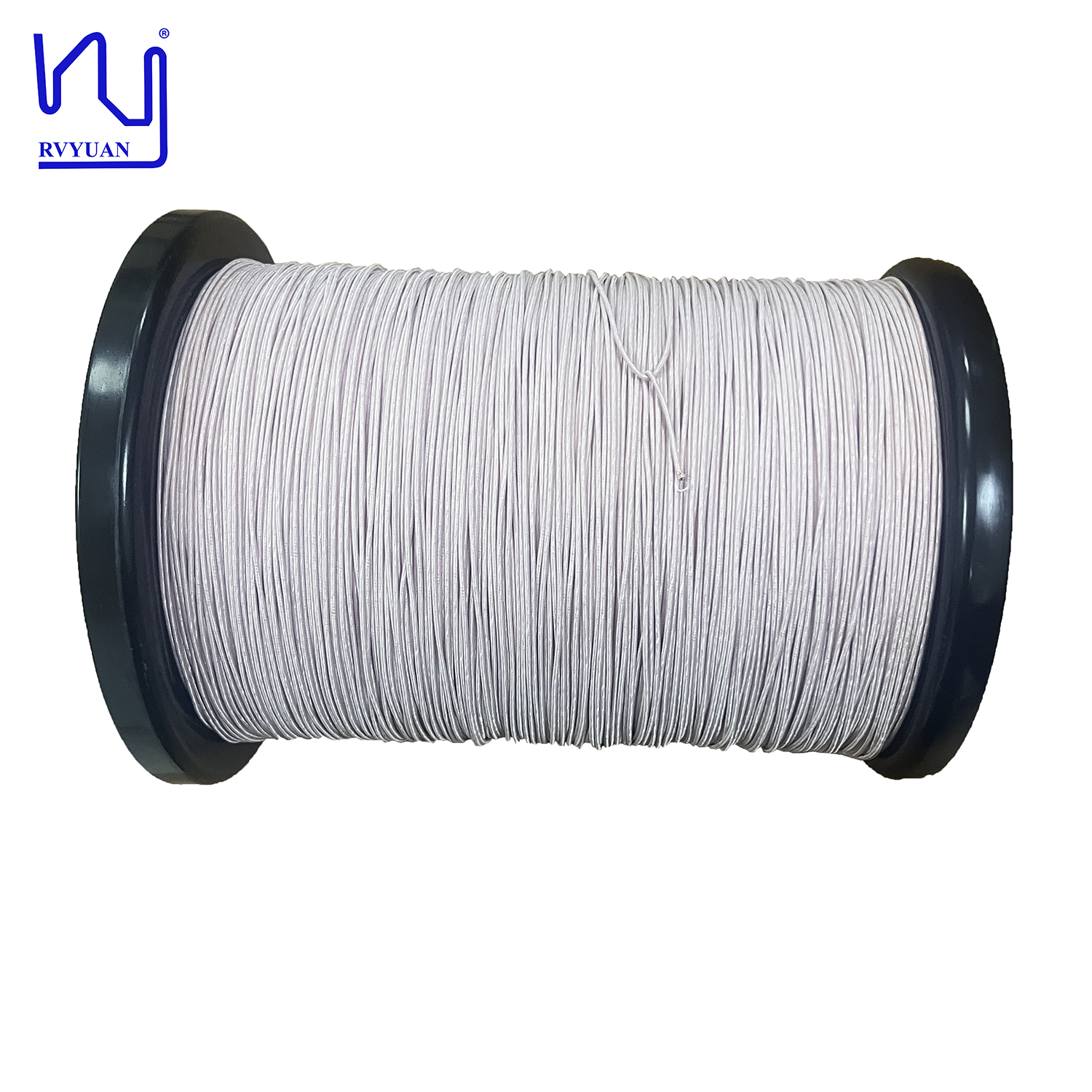

0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire

0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
Basic Information
Place of Origin: China
Brand Name: RVYUAN
Certification: ISO9001/ISO14001 /UL/SGS
Model Number: USTC
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: T/T/ Paypal
Supply Ability: Satisfy your demand
Get Best Price Contact Now
Detail Information
Diameter: 0.1mm Temperature: 155
Certification: IEC/NEMA/JIS/RoHS/ISO Conductor: Copper
Strands: 100 Breakdown Voltage: Min.1100
Cover Material: Nylon Product Name: 0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
Key Word: 0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
Highlight:

enameled magnet wire silk covered

,

high frequency litz wire

,

copper litz wire with warranty

Product Description

0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
We can produce polyurethane-enameled copper wire with single strand diameters ranging from 0.03 mm to 0.5 mm and can fully customize it to your specific needs. In addition to this configuration, we can also produce single-strand conductors with up to 12,700 strands, depending on the appropriate strand size.
If you have specific design and customization requirements, please let us know and our technical team will be happy to assist you. The minimum order quantity for this type of conductor is typically 20 kg, but we also offer custom orders in smaller quantities to accommodate various project sizes.
Product Specifications
Item Standard Test value
Single wire outer diameter(mm) 0.107-0.125 0.110 | 0.114
Conductor diameter(mm) 0.100±0.003 0.098 | 0.10
Overall dimension(mm) Max.1.43 1.3 | 1.38
Pitch(mm) 27±5 √ | √
Resistance(Ω/m at20℃) Max.0.02381 0.0214 | 0.0215
Pinhole <45 faults/6m 8 | 10
Breakdown voltage >1100V 3300 | 3400
0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire 0
Please send inquiries directly to request more information or quote!
