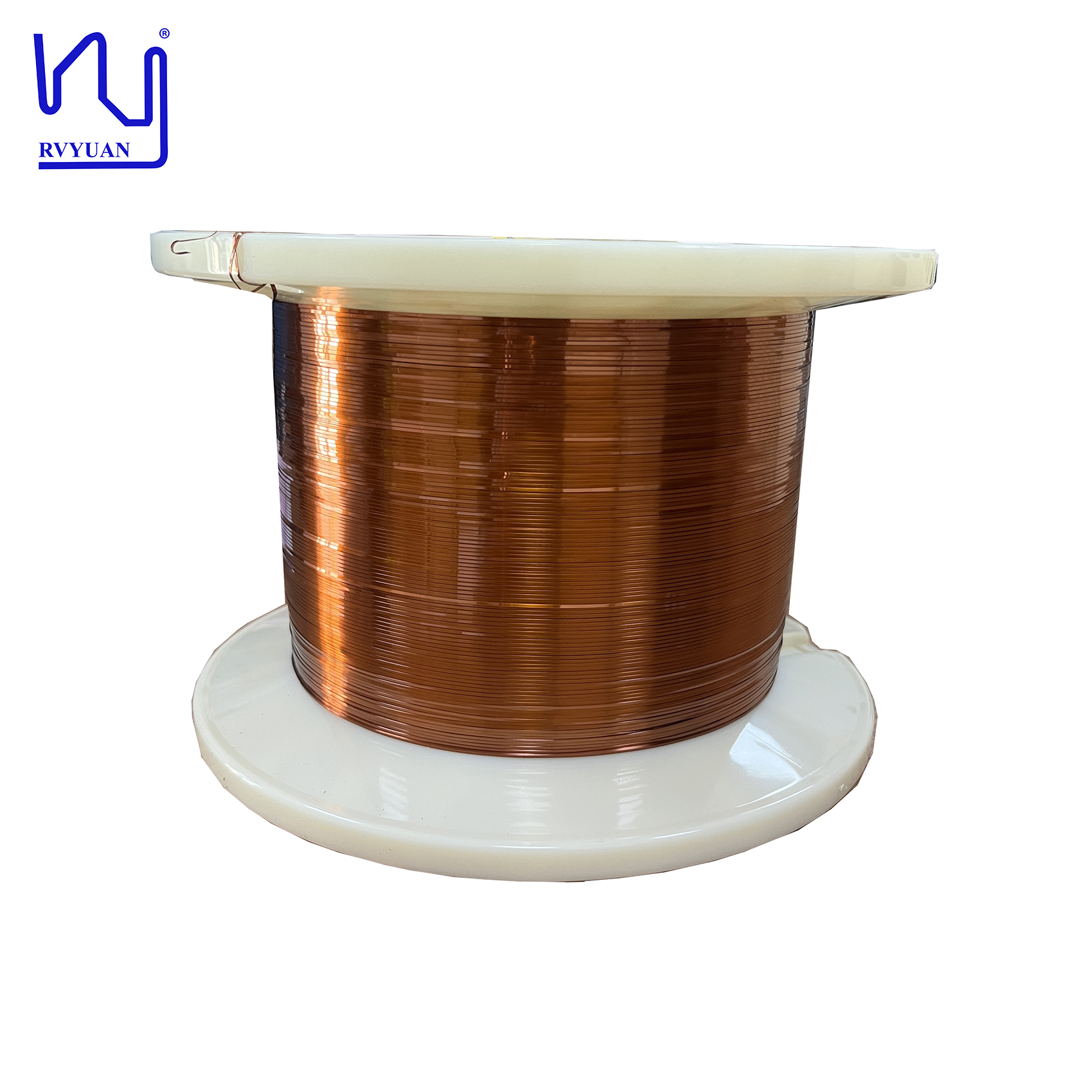

Size 0.35mm*0.8mm Enameled Copper Flat Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	AIW220

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T
Supply Ability:	100kg/week

Get Best Price Contact Now

Detail Information

Contuctor Type:	Solid	Material:	Copper
Shape:	Rectangular	Width:	0.8mm
Type:	Insulated	Certificates:	ROHS/UL/SGS/ISO9001:2008
Product Name:	Size 0.35mm*0.8mm Enameled Copper Flat Wire	Thickness:	0.35mm
Highlight:	0.35mm enameled copper flat wire , rectangular copper wire with enamel coating , flat enameled copper wire for electrical

Product Description

Size 0.35mm*0.8mm Enameled Copper Flat Wire

Our enameled rectangular copper wire is versatile and designed to improve the efficiency of a wide range of energy devices. Trust our expertise and let our high-quality products elevate your projects to new heights. We are committed to providing exceptional quality and performance, so you can be confident that our enameled rectangular copper wire will meet or exceed your expectations in any electrical application.

Item	Conductor dimension		Insulation thickness		Overall dimension		Breakdown voltage	Conductor resistance
	Thickness	Width	Thickness	Width	Thickness	Width	kv	Ω/km 20℃
Unit	mm	mm	mm	mm	mm	mm
SPEC	Nominal	0.350	0.800	0.025	0.025
Max	0.359	0.860	0.040	0.040	0.400	0.900		72.710
Min	0.341	0.740	0.010	0.010			0.700
No. 1	0.347	0.814	0.010	0.015	0.367	0.843	1.005	63.154
No. 2							1.414
No. 3							1.336
No. 4							1.558
No. 5							1.652
Avg	0.347	0.814	0.010	0.015	0.367	0.843	1.393
No.of reading	1	1	1	1	1	1	5
Min. reading	0.347	0.814	0.010	0.015	0.367	0.843	1.005
Max. reading	0.347	0.814	0.010	0.015	0.367	0.843	1.652
Range	0.000	0.000	0.000	0.000	0.000	0.000	0.647
