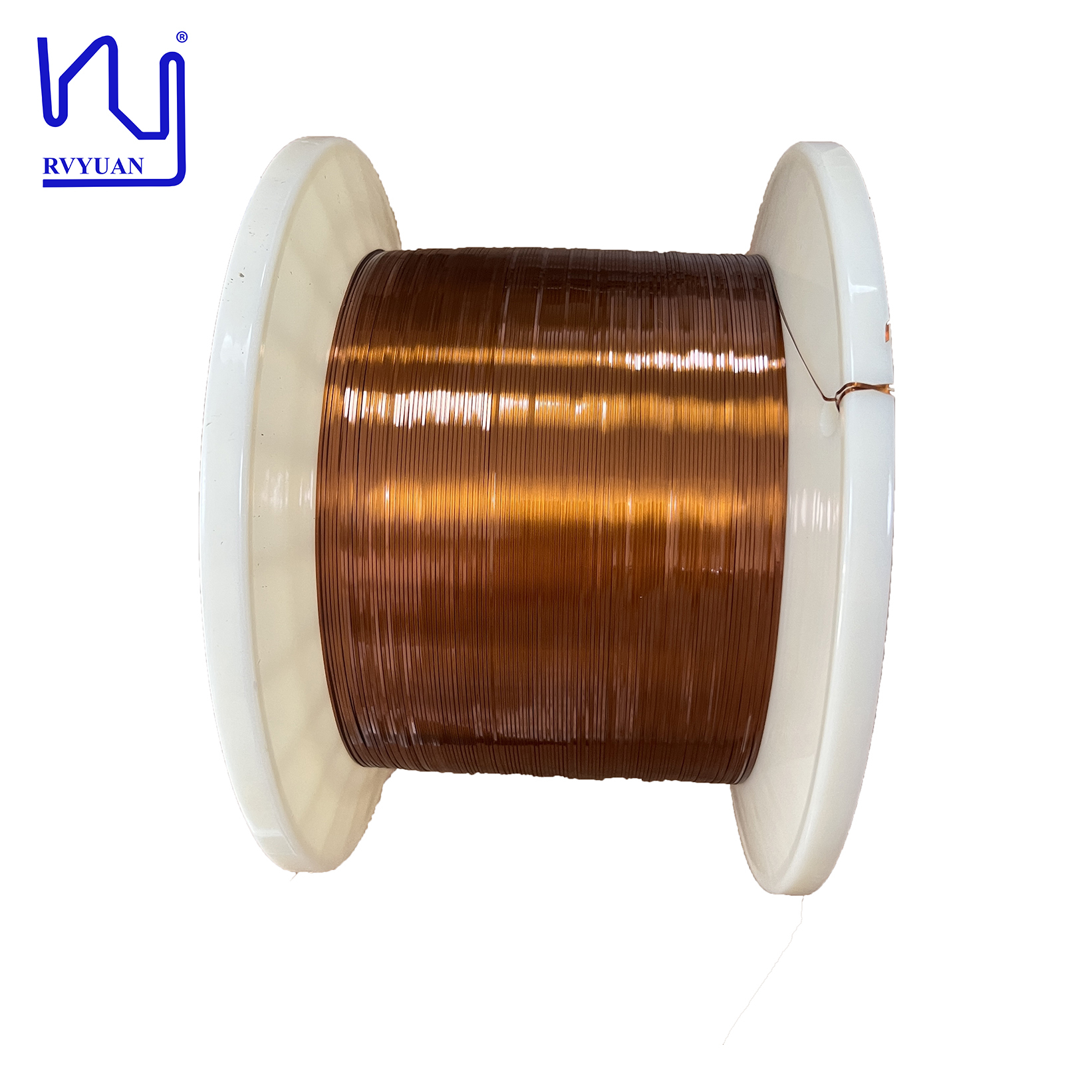

High Temperature Flat Copper Wire 0.8mmx0.35mm Enameled Flat Copper Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	AIW220

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T
Supply Ability:	100kg/week

Get Best Price Contact Now

Detail Information

Contuctor Type:	Solid	Material:	Copper
Shape:	Rectangular	Width:	0.8mm
Type:	Insulated	Certificates:	ROHS/UL/SGS/ISO9001:2008
Product Name:	High Temperature Flat Copper Wire 0.8mmx0.35mm Enameled Flat Copper Wire	Thickness:	0.35mm
Highlight:	0.8mmx0.35mm enameled flat copper wire , high temperature rectangular copper wire , flat copper wire with enamel coating

Product Description

High Temperature Flat Copper Wire 0.8mmx0.35mm Enameled Flat Copper Wire

The enameled coating on our flat copper wires offers exceptional insulation properties. This coating provides excellent resistance to heat and current, ensuring long-lasting performance and reliability even under challenging conditions. Whether you're a professional engineer or a power electronics enthusiast, our flat enameled wires are a key component for reliable and efficient operation.

Technical Specifications

Item	Conductor Dimension		Insulation Thickness		Overall Dimension		Breakdown Voltage	Conductor Resistance
Unit	Thickness (mm)	Width (mm)	Thickness (mm)	Width (mm)	Thickness (mm)	Width (mm)	kV	Ω/km 20℃
SPEC	Nominal	0.350	0.800	0.025	0.025
Max	0.359	0.860	0.040	0.040	0.400	0.900		72.710
Min	0.341	0.740	0.010	0.010			0.700
No. 1	0.347	0.814	0.010	0.015	0.367	0.843	1.005	63.154
No. 2							1.414
No. 3							1.336
No. 4							1.558
No. 5							1.652
Avg	0.347	0.814	0.010	0.015	0.367	0.843	1.393
No.of reading	1	1	1	1	1	1	5
Min. reading	0.347	0.814	0.010	0.015	0.367	0.843	1.005
Max. reading	0.347	0.814	0.010	0.015	0.367	0.843	1.652
Range	0.000	0.000	0.000	0.000	0.000	0.000	0.647
