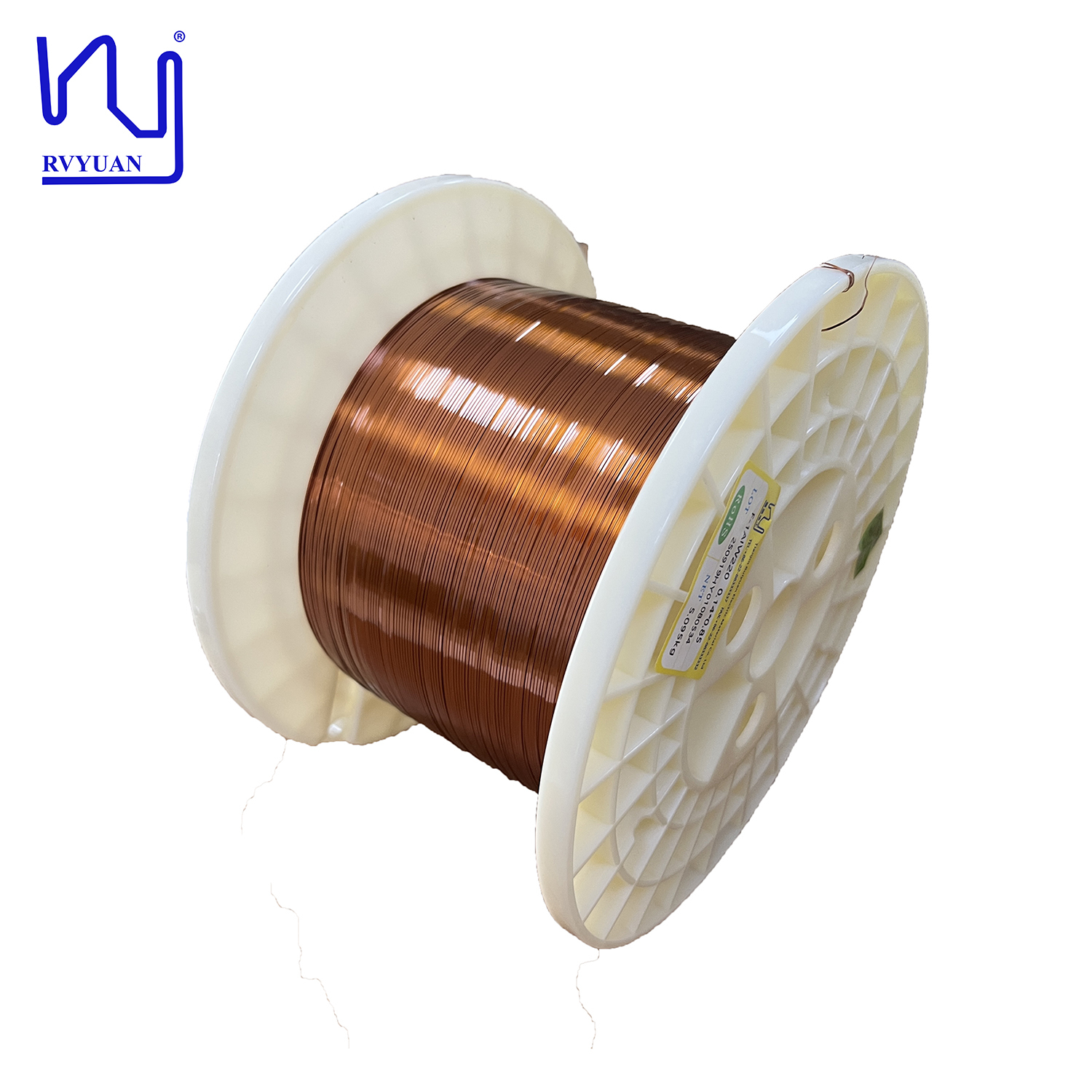

Class 220 Super Thin Rectangular Copper Wire 0.8mmx0.35mm For Windings

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	AIW220

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T
Supply Ability:	100kg/week

Get Best Price Contact Now

Detail Information

Contuctor Type:	Solid	Material:	Copper
Shape:	Rectangular	Width:	0.8mm
Type:	Insulated	Certificates:	ROHS/UL/SGS/ISO9001:2008
Product Name:	Class 220 Super Thine Rectangular Copper Wire 0.8mmx0.35mm For Windings	Thickness:	0.35mm
Highlight:	0.8mmx0.35mm rectangular copper wire , super thin copper wire for windings , class 220 rectangular copper wire

Product Description

Class 220 Super Thin Rectangular Copper Wire 0.8mmx0.35mm For Windings

A key feature of our enameled rectangular copper wire is its exceptional electrical conductivity. Made from high-quality copper, this wire ensures efficient power transmission, which is crucial for applications such as transformer windings, electric motors, and inductors. This superior conductivity not only improves the performance of electrical systems but also increases energy efficiency, making it ideal for renewable energy applications.

Technical Specifications

Item	Conductor Dimension		Insulation Thickness		Overall Dimension		Breakdown Voltage (kV)	Conductor Resistance (Ω/km 20℃)
Item	Thickness (mm)	Width (mm)	Thickness (mm)	Width (mm)	Thickness (mm)	Width (mm)	Breakdown Voltage (kV)	Conductor Resistance (Ω/km 20℃)
Unit	mm	mm	mm	mm	mm	mm	kV	Ω/km 20℃
SPEC Nominal	0.350	0.800	0.025	0.025
Max	0.359	0.860	0.040	0.040	0.400	0.900		72.710
Min	0.341	0.740	0.010	0.010			0.700
No. 1	0.347	0.814	0.010	0.015	0.367	0.843	1.005	63.154
No. 2							1.414
No. 3							1.336
No. 4							1.558
No. 5							1.652
Avg	0.347	0.814	0.010	0.015	0.367	0.843	1.393
No. of reading	1	1	1	1	1	1	5
Min. reading	0.347	0.814	0.010	0.015	0.367	0.843	1.005
Max. reading	0.347	0.814	0.010	0.015	0.367	0.843	1.652
Range	0.000	0.000	0.000	0.000	0.000	0.000	0.647
