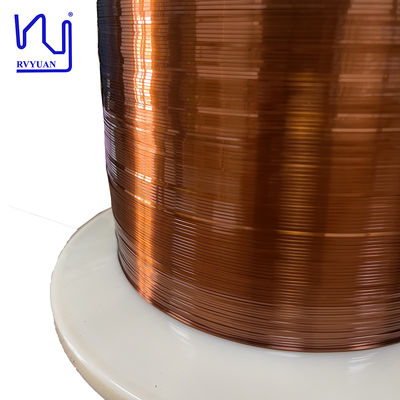

AIW 220 0.8mmx0.35mm Enameled Flat Copper Wire For Motors

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	PEEK

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T
Supply Ability:	100kg/week

Get Best Price Contact Now

Detail Information

Contuctor Type:	Solid	Material:	Copper
Shape:	Rectangular	Width:	0.8mm
Type:	Insulated	Certificates:	ROHS/UL/SGS/ISO9001:2008
Product Name:	AIW 220 0.8mmx0.35mm Enameled Flat Copper Wire For Motors	Thickness:	0.35mm
Highlight:	enameled flat copper wire for motors , 0.8mmx0.35mm rectangular copper wire , AIW 220 motor winding wire

Product Description

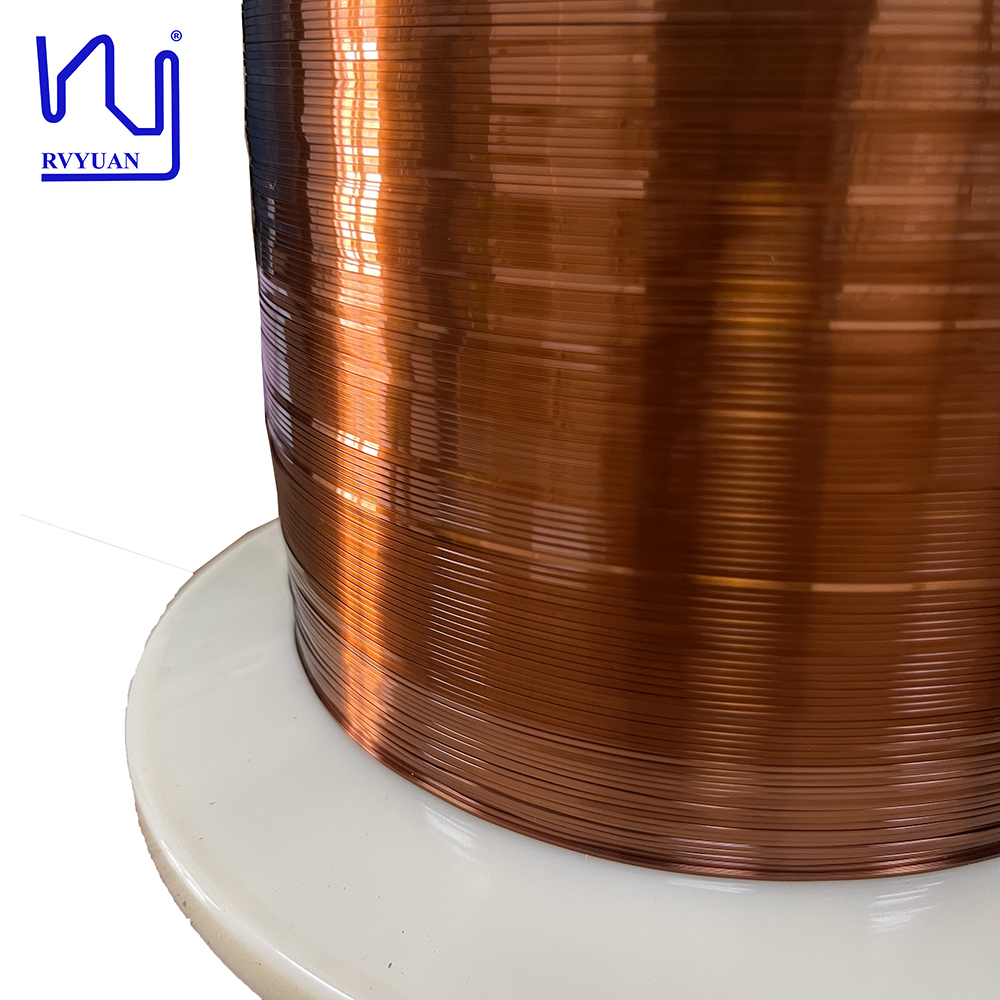

AIW 220 0.8mmx0.35mm Enameled Flat Copper Wire For Motors

This is a customized super thin enameled flat copper wire, designed to meet the demanding requirements of a wide range of applications. With a width of just 0.8 mm and a thickness of just 0.35 mm, it delivers optimal performance within a compact footprint. With a temperature rating of up to 220°C, it's suitable for use in high-temperature environments.

Technical Specifications

Item	Conductor dimension		Insulation thickness		Overall dimension		Breakdown voltage	Conductor resistance
Unit	mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃
SPEC	Nominal	0.350	0.800	0.025	0.025
Max	0.359	0.860	0.040	0.040	0.400	0.900		72.710
Min	0.341	0.740	0.010	0.010			0.700
No. 1	0.347	0.814	0.010	0.015	0.367	0.843	1.005	63.154
No. 2							1.414
No. 3							1.336
No. 4							1.558
No. 5							1.652
Avg	0.347	0.814	0.010	0.015	0.367	0.843	1.393
No.of reading	1	1	1	1	1	1	5
Min. reading	0.347	0.814	0.010	0.015	0.367	0.843	1.005
Max. reading	0.347	0.814	0.010	0.015	0.367	0.843	1.652
Range	0.000	0.000	0.000	0.000	0.000	0.000	0.647
